Rugged Ridge XHD Winch Mount Front Bumper, 76-06 Jeep CJ & Wrangler Models User Manual
Page 2

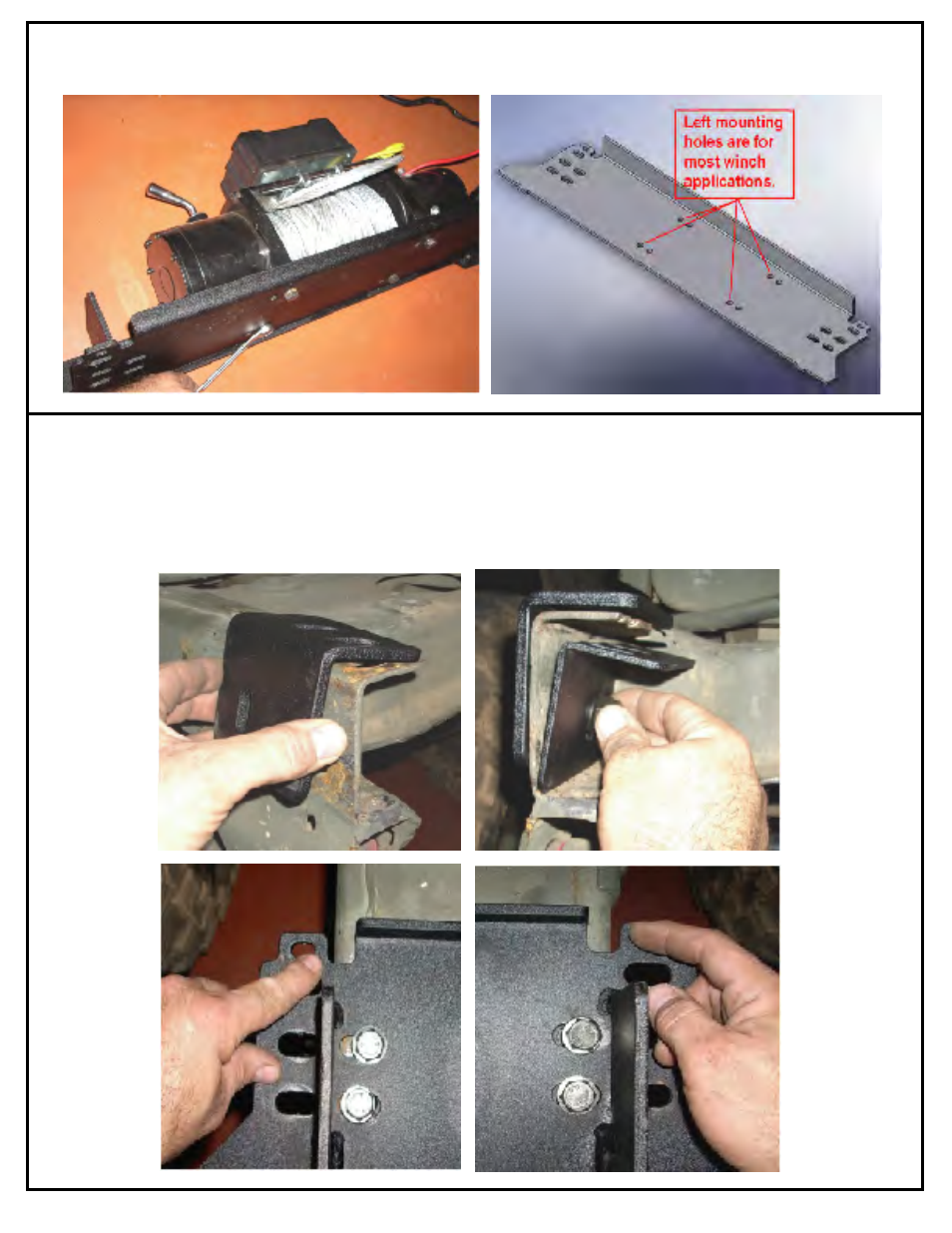

3. Mount winch to sub-frame making sure all lead wires have been connected. Two sets of mounting
holes have been supplied for deferent winch designs. Most applications will use left mounting holes.
Page 2 of 4
4. For 1976-1986 CJ applications use (4) CJ mounting brackets supplied with bumper. (2) thin inner
frame brackets and (2) thicker outer frame brackets. Place thicker frame brackets onto vehicles frame
before installing sub-frame assembly. Insert thinner brackets into frame c-channel and align mounting
holes. Attach thinner frame bracket to thicker frame bracket through side frame hole with (1) M12 Bolt,
(2) M12 Flat Washer, and (1) M12 Nylock Nut - DO NOT TIGHTEN. Place sub-frame assembly on
vehicle frame and align holes. Attach using (4) M12 Bolts, (8) M12 Flat Washers and (4) M12 Nylock
Nuts. Snug all bolts but DO NOT TIGHTEN. Side to side adjustment will be needed later.
