Rugged Ridge XHD Winch Mount Front Bumper, 76-06 Jeep CJ & Wrangler Models - Manual

11540.40
Jeep
®
CJ, YJ, TJ Modular HD Front Winch Bumper

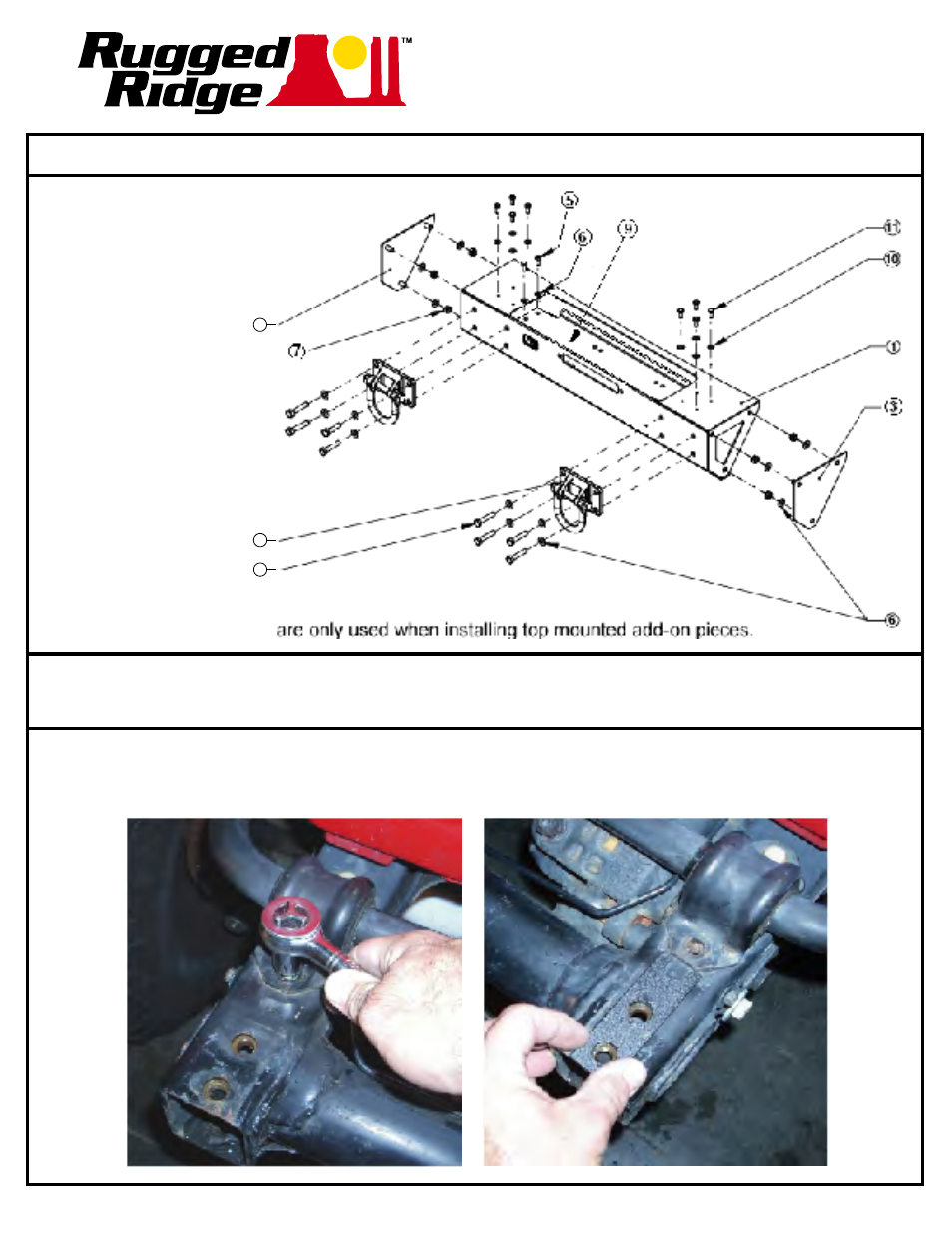

Contents:
1. Bumper Cover (1)
2. Right Stubby End (1)
3. Left Stubby End (1)
4. D-Ring (2)
5. M12 x 60 Bolt (14)
6. M12 Washer (26)
7. M12 Lock Nut (12)
8. CJ Brackets -(4)
9. Sub Frame Plate (1)
10. M8 Washer (8) *
11. M8 x 20 Bolt (8) *
12. Sub-Frame spacer
brackets for YJ-TJ (2)
Note - number 8 and 12
not shown.
1. Remove OE front bumper from frame. For 1987 - 2006 Wranglers DO NOT discard mounting bolts.
Bolts will be reused later to install sub-frame and bumper cover.
2. For 1997-2006 TJ-LJ applications remove the two front sway bar retainer bolts as shown. Do not
discard. Bolts will be reused later for installation of sub-frame. For YJ and TJ place sub-frame spacer
brackets on top of frame. These smaller brackets are NOT needed for 1976 - 1986 CJs.
Page 1 of 4
1
8
3
6
5
4
2
11
* Note - These components are only used when installing top mounted add-on pieces.
10
