Martin Universal Design U-145N Avanti Master Studio Art Easel User Manual
Page 3

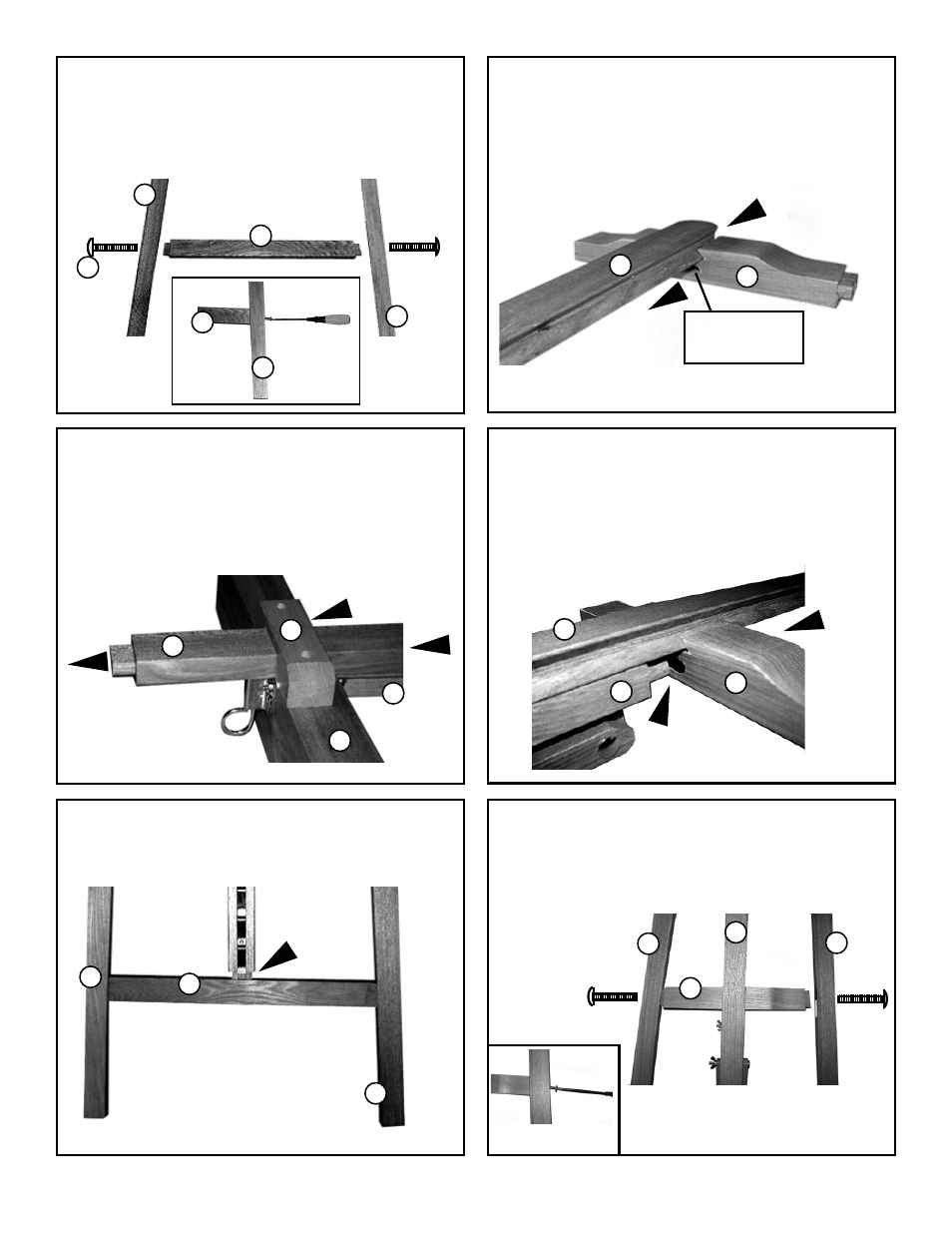

STEP 7. Attach lower cross member [F] to left leg [B]
and right leg [B] by lining up the angled joiner on the cross
member to the slotted holes in the legs. Secure by using
the 2 ea. 2-1/4” Bolt [L] and screw in with screwdriver
provided. Making sure oval hole is positioned on top edge
of cross member. See FIG 7 & 7B
STEP 10. Attach Upper Cross Member [E] by sliding it
over the top of the Center mast Column [A] and continue
sliding it down along the channels. PLEASE NOTE:
Make sure that you have the Upper Cross Member in the
correct position, by making sure the oval hole is on the
bottom edge. See FIG. 10.
Page 3
FIG 7
FIG 7B
F
B
B
L
F
B
STEP 8. Attach Ratchet/Center Column assembly by
inserting the lower end of the Ratchet Column through the
Lower Canvas Support “U” Bracket [K].
Please Note: When inserting the ratchet assembly,
proceed to push through until you hear the ratchet
“CLICK” into place. See FIG 8.
FIG 8
D
K
H
C
STEP 9. Attach Ratchet/Center Column assembly to
Lower Cross Member [F] by inserting notched end of
ratchet column into oval hole in the top edge of the cross
member. See FIG 9.
FIG 9
F
B
B
FIG 10
E
A
STEP 11. Continue sliding Upper Cross Member [E]
downward along channel until you reach the top end of the
Ratchet Column [D]. Insert notched end into oval hole in
Upper Cross Member [E]. See FIG. 11.
FIG 11
oval hole
positioned here.
STEP 12. Secure Upper Cross Member by using the 2
remaining 2-1/4” Bolts [L] into the holes that are on the
outside edge of Legs [B] near the top. Tighten with
screwdriver supplied. PLEASE NOTE: Make sure bolt
goes through and into Cross Member too.
See FIG 12.
FIG 12
Tighten with
screwdriver
A
E
D
E
A
B
B
