Napoli

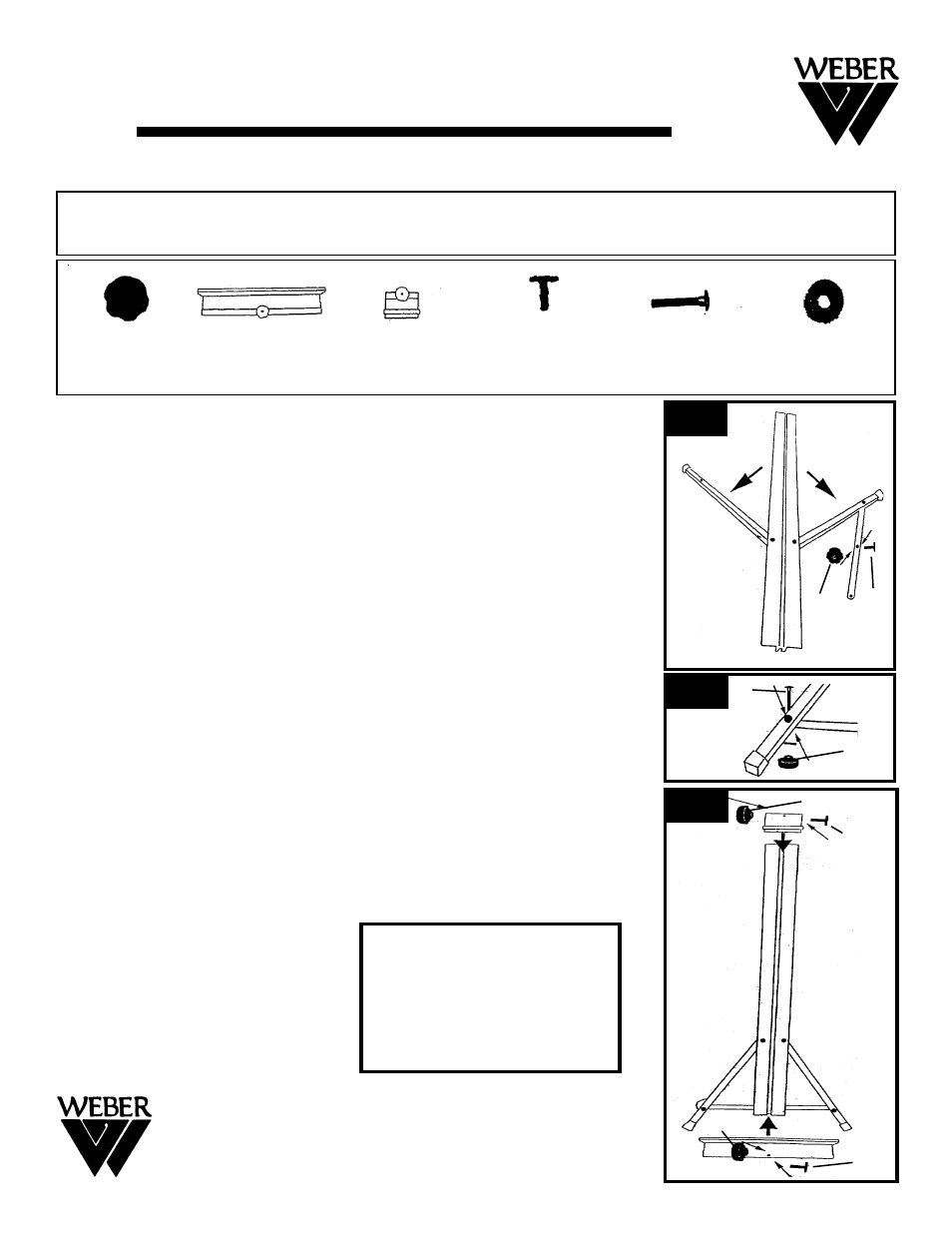

Aluminum Easel Assembly Instructions
Step 1.
Empty contents of carton. Remove all plastic packaging.
Step 2.
Take Easel Assembly and spread out the lower legs and
position cross member support so that it lines up with hole in
rear of left leg. See FIG 1 & Fig. 2
Step 3.
Remove knob and screw from cross member. Center hole in
cross member needs to line up with channel in center column.
Slide screw with plate into groove in center column while
positioning cross member hole onto screw.
Attach knob but DO NOT tighten.
Step 4.
Attach cross member to left leg of easel by removing knob from
rear of leg and positioning hole in cross member over screw in
leg. Attach knob and tighten to secure.
Step 5.
Tighten knob on rear of cross member to secure.
Step 6.
Loosen knob above rear leg to adjust tilt of easel. Tighten at
desired angle.
Step 7.
Slide the lower canvas support [B] down onto the center
column, tighten knob to secure. Repeat with upper canvas
support [C]. See FIG 3.
Your easel is now ready to use.
Carton Contains: [A] Easel Assembly, [B] Lower Canvas Support (large),
[C] Upper Canvas Support (small) & Parts Bag
If you have any
questions or difficulties
assembling this easel.
Please call our
Customer Service Hotline
at: (313)895-0700
Martin/F. Weber Co., Detroit, MI USA
www.weberart.com
Email: [email protected]
Made in China
Item No. 92-AE120
Part A
[5] Adjustment
Knobs
Part B
[1] Lower Canvas
Tray
Part C
[1] Upper Canvas
Support
Part D
[3] T-Bolts
Part E
[1] Long Bolt
Part F
[1] Plastic Mat
FIG 1
FIG 2 [E]
[A]
[A]
[E]
[A]
[A]
[D]
[D]
FIG 3
