Minka Group F528-L-BS/CH - Manual (Page 11)

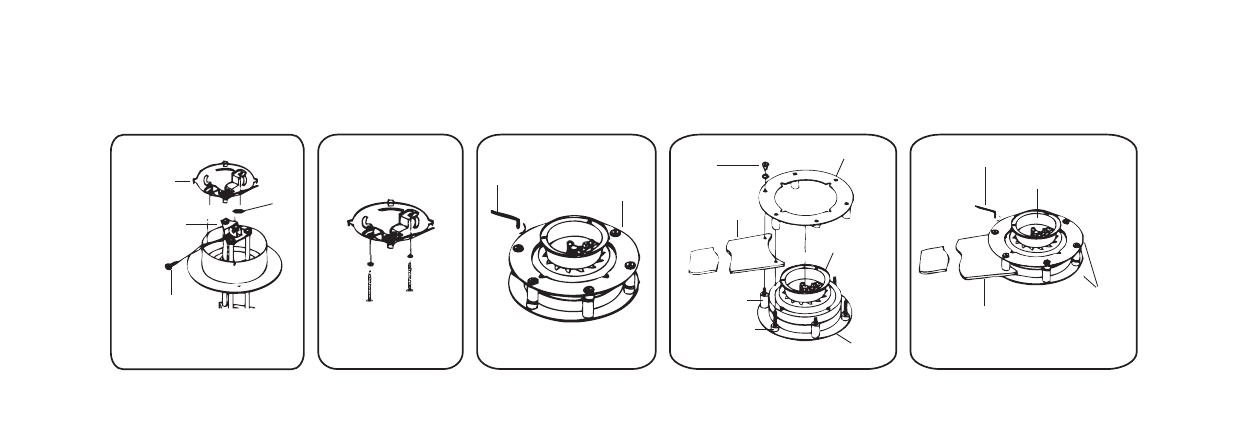

Fig. 5
MOUNTING
BRACKET
HANGING
BRACKET
PHILLIPS
SCREW
HEXNUT
Fig. 6
MOUNTING
BRACKET
Fig. 7
4MM ALLEN WRENCH
MOTOR ASSEMBLY
Fig. 8
TOP PLATE
SWITCH CUP
ALLEN
SET SCREW
BLADE
TALL COLUMN
SHORT COLUMN
BOTTOM
PLATE
Fig. 9
TOP &
BOTTOM
PLATE
4MM ALLEN WRENCH
SWITCH CUP
BLADE
Step 5. (Fig. 9) Replace the Top Plate, align the "ARROW" labels from the Motor and Top Plate and secure with the six Allen Set Screws and Washers
previously removed. CAUTION: Before tightening screws, make sure to pull blades straight out so that all blades are aligned the same. Tighten the
Allen Set Screws making sure the blades sit flat over the Columns and also make sure that the top and bottom Columns are aligned straight with
each other.Remove the "BLADE" and "ARROW" labels.
