Team Associated RC10B5M User Manual

Page 8

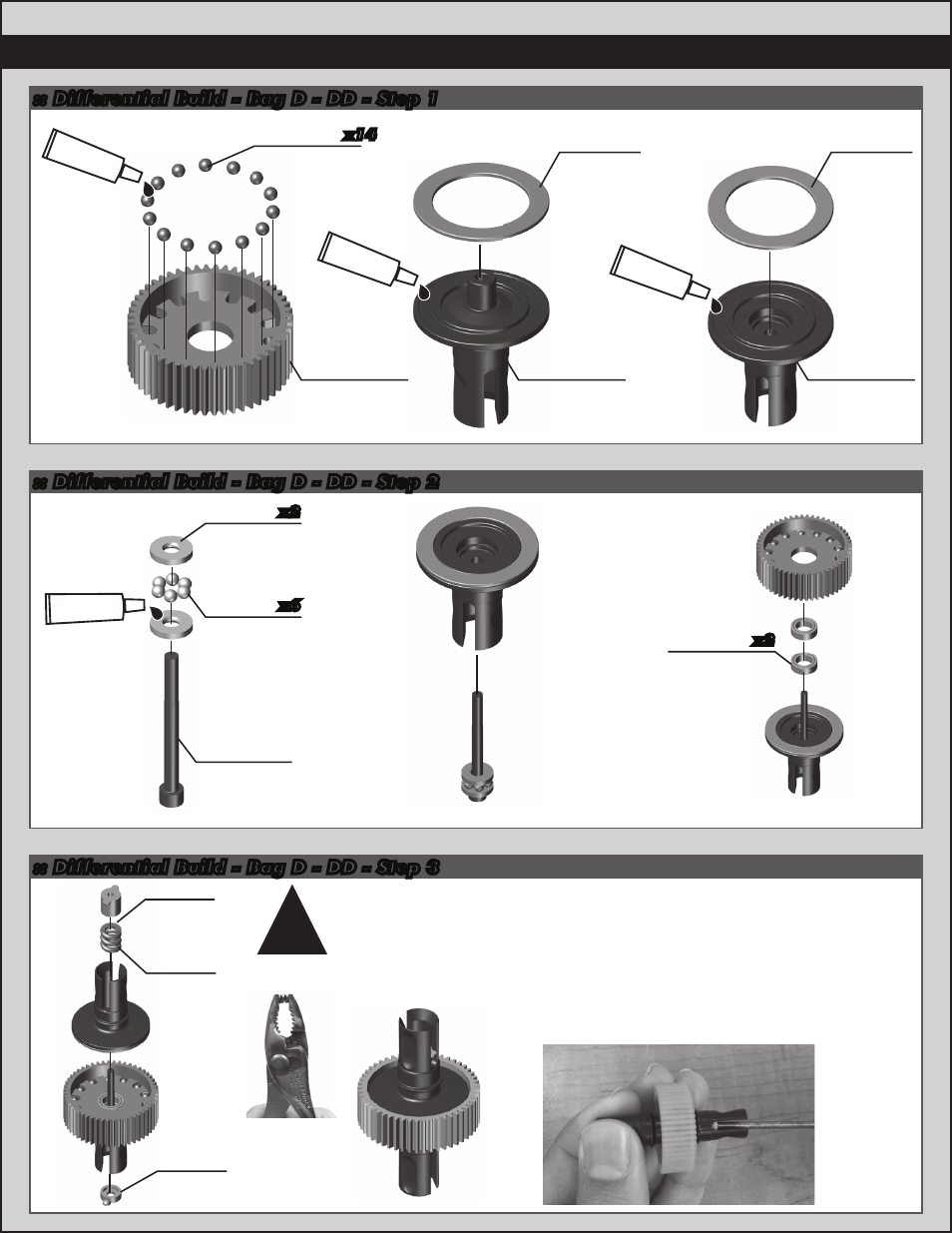

:: Differential Build - Bag D - DD - Step 3

:: Differential Build - Bag D - DD - Step 2

6575

Diff

cover

6575

Locking

t-nut

6582

Diff

thrust

spring

Compress

spring first.

:: Differential Build - Bag D - DD - Step 1

#6588

black grease

6573

Diff thrust

washer

6574

5/64 diff

thrust

balls

6573

Diff thrust

bolt

31400

5 x 8mm,

Bearing

6581

3/32 carbide

diff balls

91419

Diff Gear,

52T

91420

Ball Diff

Outdrive

91420

Ball Diff

Outdrive

7666

Diff Drive

Ring

7666

Diff Drive

Ring

x14

#6591

diff lube

#6591

diff lube

#6591

diff lube

As you tighten the diff bolt, you will notice the T-nut ears moving

closer to the bottom of the outdrive slot. This compresses the

spring behind the T-nut. The spring should be completely

compressed at the same time the T-nut reaches the end of the

slot. Caution! Pay close attention to the feeling when the spring

is completely compressed. Do not overtighten the bolt. When

you feel the spring completely compressed, loosen the diff bolt

1/8” of a turn. Your diff should now operate smoothly with

resistance as the outdrives move in opposite directions.

After you have driven the car once, re-check the diff setting.
