Team Associated RC10B5M - Manual (Page 7)

7

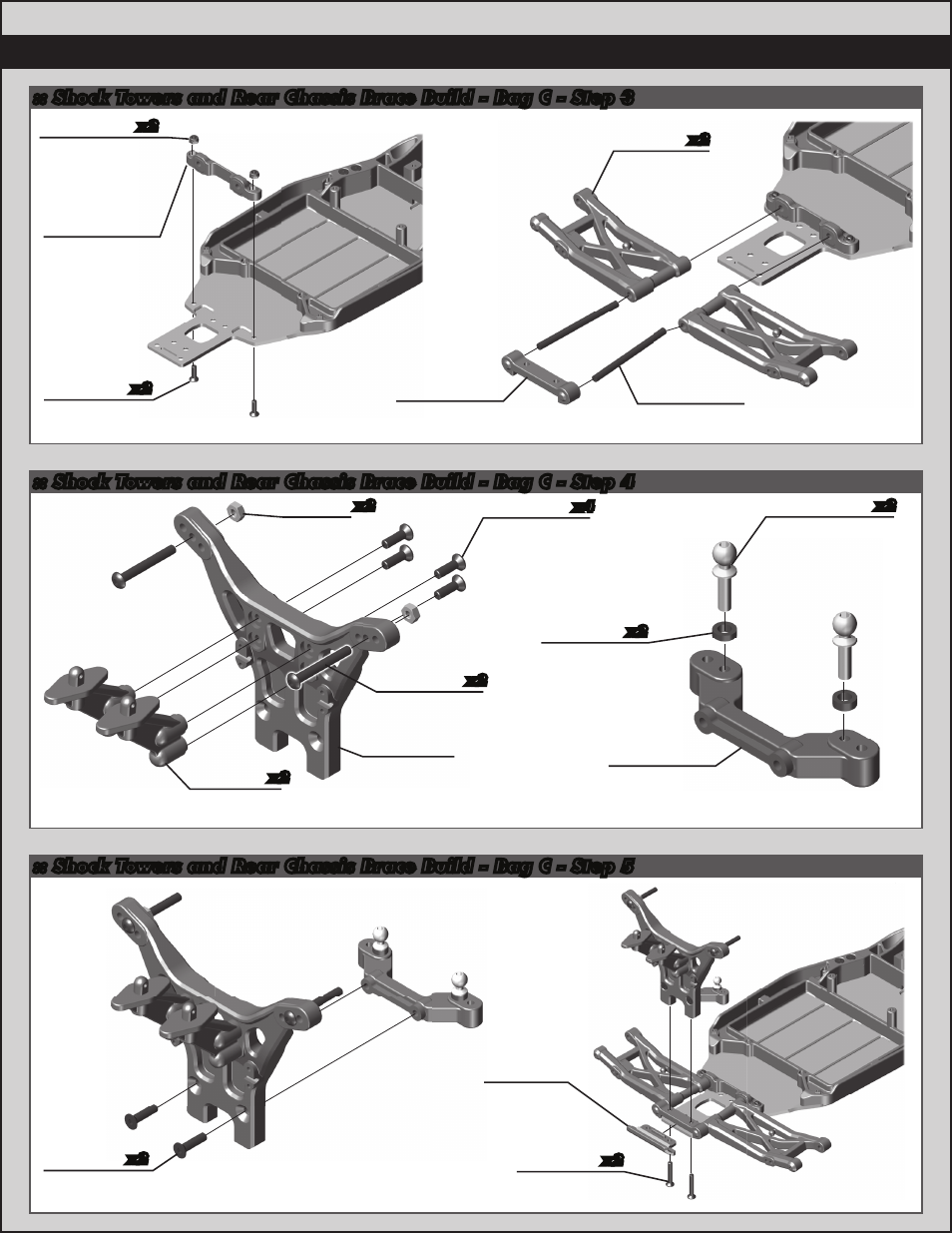

:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 5
:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 4
89204
M3 x 24mm
BHCS
25202
M3 x 10mm
FHCS
x2
x4
x2
91518
RC10B5M
Rear Shock
Tower
91531
Rear Wing
Mount
91531
RC10B5M
Rear
Bumper
91477
M3 Nut
(black)
25203
M3 x 12mm
FHCS
x2
:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 3
91049
Heavy-duty
Ballstud, 10mm
89209
M3 x 18mm
FHCS
x2
x2 x2
x2 31286
FT Ballstud
Washer,
aluminum
(2mm)
91518
RC10B5M
Rear Ball
Stud Mount
91528
RC10B5M
Rear Arms
25202
M3 x 10mm
FHCS
91532
RC10B5M
Arm Mount,
C (3+1)
91532
RC10B5M
Arm Mount, D
x2
91394
Hinge Pin
(rear, Inner)
25215
M3 Locknut,
black
x2
x2
