Team Associated RC10B5M - Manual (Page 6)

6

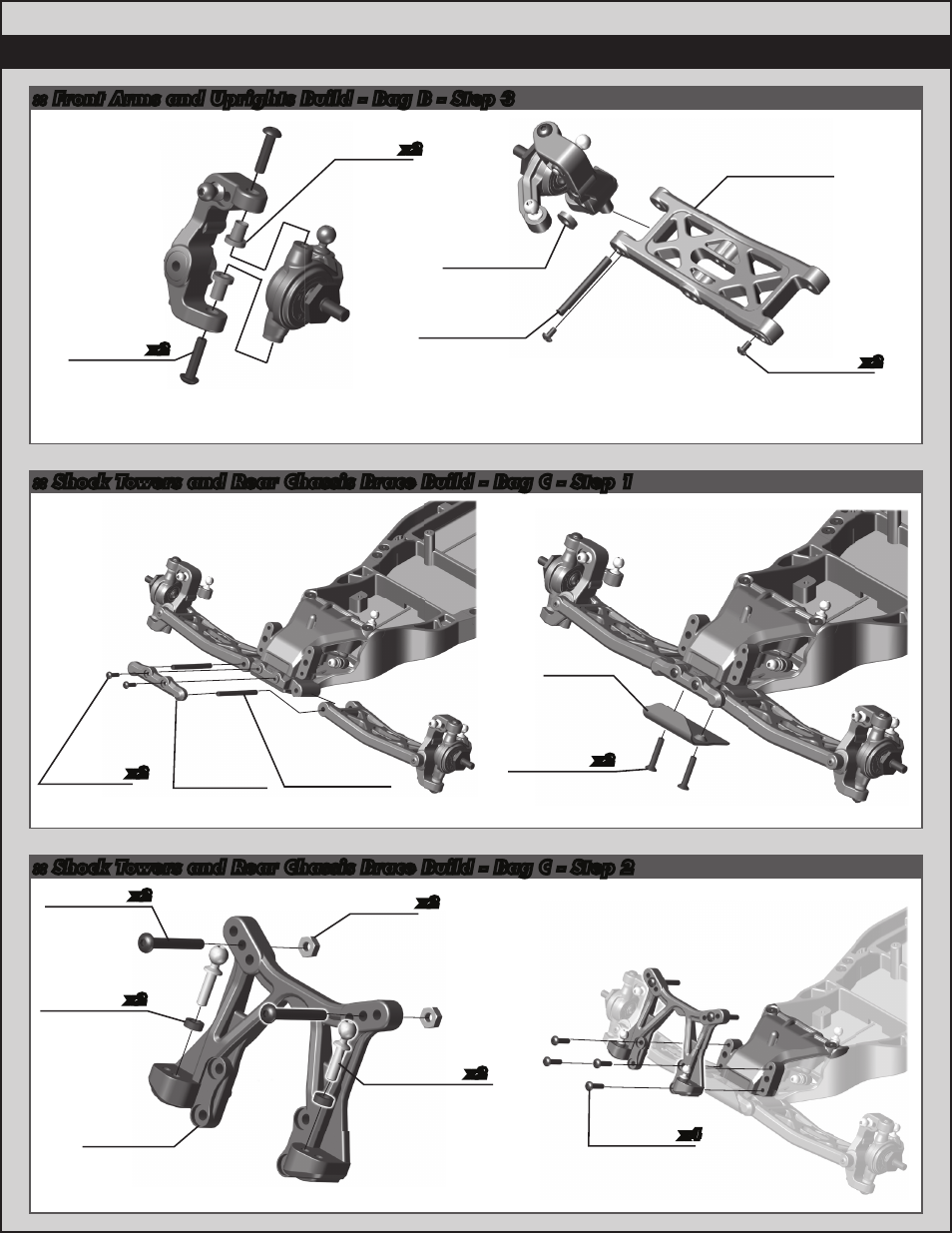

:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 2
:: Shock Towers and Rear Chassis Brace Build - Bag C - Step 1
:: Front Arms and Uprights Build - Bag B - Step 3
89204
M3 x 24mm
BHCS
89202
M3 x 12mm
BHCS
91477
M3 Nut
(black)
91516
RC10B5M
Front Shock
Tower
91049
Heavy-duty
Ballstud, 10mm
x2
x4
x2
x2
x2 31286
FT Ballstud
Washer,
aluminum
(2mm)
25204
M3 x 16mm
FHCS
91410
Front
Bumper
91394
Hinge Pin
(front, Inner)
91371
Front Hinge
Pin Brace
31521
M2.5 x 8mm
BHCS
x2
x2
Build 2 (1 left, 1 right) Build 2 (1 left, 1 right)
x2 89202
M3 x 12mm
BHCS
91402
Caster
Block
Bushing
x2
x2 31510
M2 x 4mm
BHCS
91400
Caster Block
Spacer
91394
Hinge Pin
(front, outer)
91526
RC10B5M
Front Arms
