Team Associated RC10B5M - Manual (Page 4)

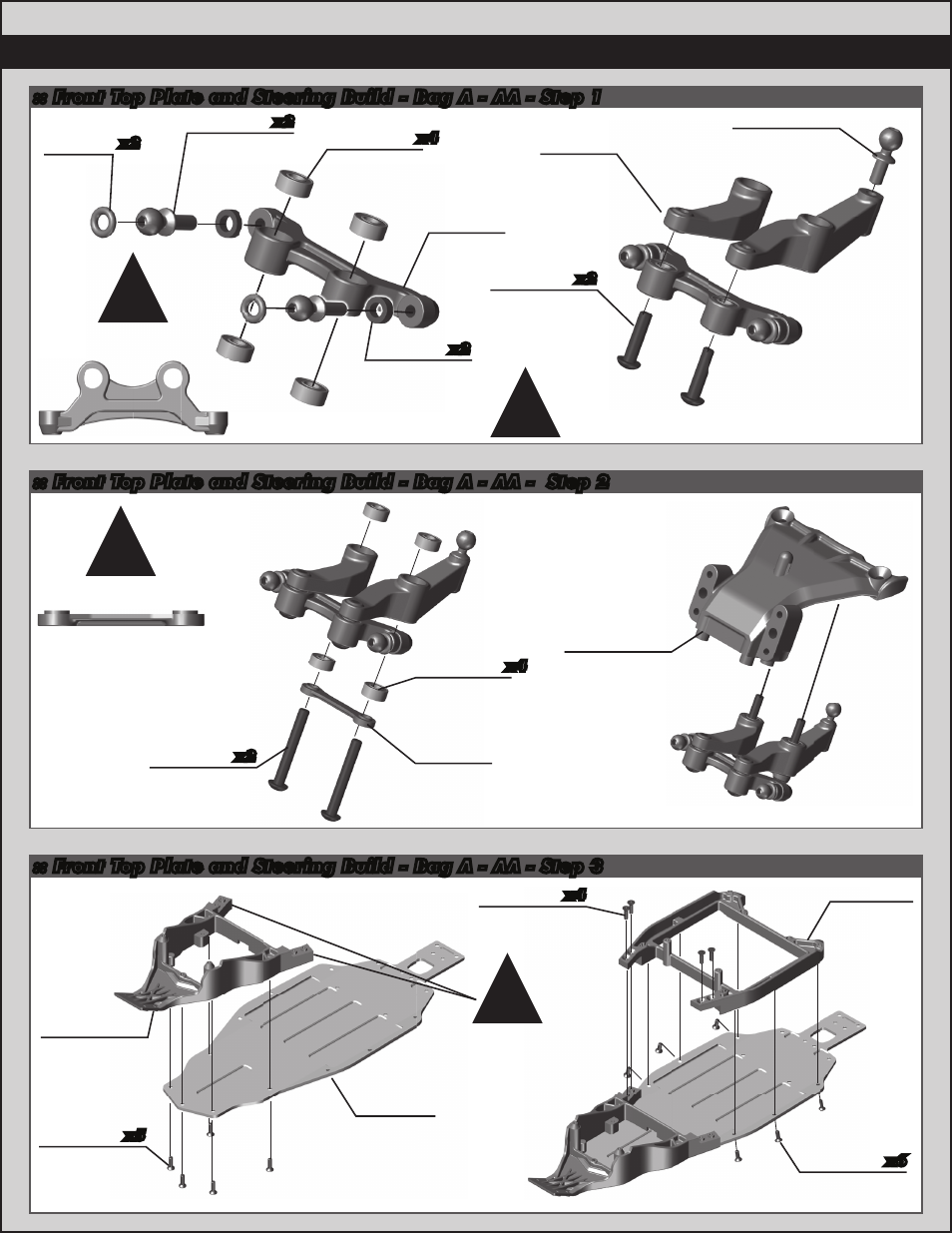

:: Front Top Plate and Steering Build - Bag A - AA - Step 2
:: Front Top Plate and Steering Build - Bag A - AA - Step 3
4
:: Front Top Plate and Steering Build - Bag A - AA - Step 1
91391
Steering
Bellcrank
Brace
91510
RC10B5M
Chassis
91475
3 x 7 x 3
Ball Bearing
x4
x2
x5
x6
25189
M3 x 22mm
BHCS
25202
M3 x 10mm
FHCS
25201
M3 x 8mm
FHCS
91512
RC10B5M
Front Chassis
Plate
91514
RC10B5M
Chassis
Cradle
91362
B5 Top
Plate
x4 25202
M3 x 10mm
FHCS
Do not overtighten steering bolts. Make sure
there is free movement in the steering rack.
91475
3 x 7 x 3
Ball Bearing
91391
Steering
Rack
x4
x2
x2
x2
91048
Heavy-duty
Ballstud,
8mm
5407
Red
O-Ring
31286
FT Ballstud
Washer,
aluminum
(2mm)
!
91391
Steering
Bellcrank
Brace
x2 89202
M3 x 12mm
BHCS
91047
Heavy-duty
Ballstud,
6mm
Note orientation
of steering rack.
Remove any flashing
materieal from part
#91512 to ensure a
smooth fit to
part #91514.
!
!
Note orientation
of the brace.
!
