Team Associated RC10B5M - Manual (Page 14)

14
Motor not included!
31532
M3 x 8mm
BHCS
31532
M3 x 8mm
BHCS
x2
x2
x2
89218
3 x 8mm
Washer

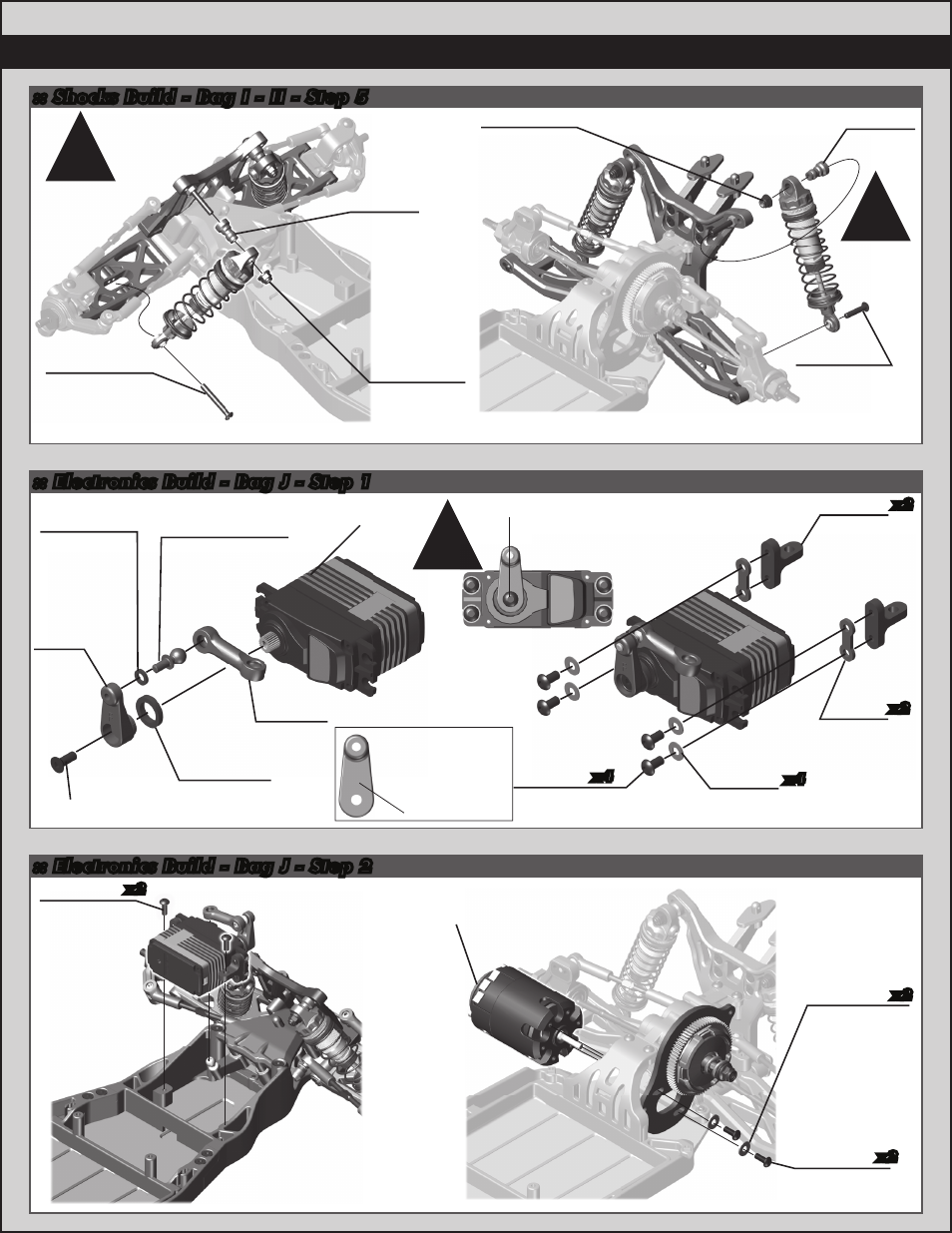

:: Electronics Build - Bag J - Step 1
:: Electronics Build - Bag J - Step 2
7337
Gold
Washer
91443
Servo
Mount
91455
Servo
Spacers
91455
Steering
Link
31532
M3 x 8mm
BHCS
89009
Servo Horn
Ring
91047
Heavy-duty
Ballstud, 6mm
9180
Servo
Horn
x4
x2
x2
x4
Servo not
included!
Servo screw
not included!
31286
FT Ballstud
Washer,
aluminum
(1mm)
:: Shocks Build - Bag I - II - Step 5
A - Airtronics
F - Futaba
H - Hitec
J - JR
Printed here
Use outside
hole in
front arm!
!
Use inside
hole in
rear arm!
!
25612
M3 Locknut,
with flange
(black)
25612
M3 Locknut,
with flange
(black)
89202
M3 x 12mm
BHCS
91445
Shock
Bushing
91445
Shock
Bushing
25189
M3 x 22mm
BHCS
Build x2 (right and left side) Build x2 (right and left side)
Align the servo
horn 90 degrees
!
