Team Associated RC10B5M - Manual (Page 5)

5

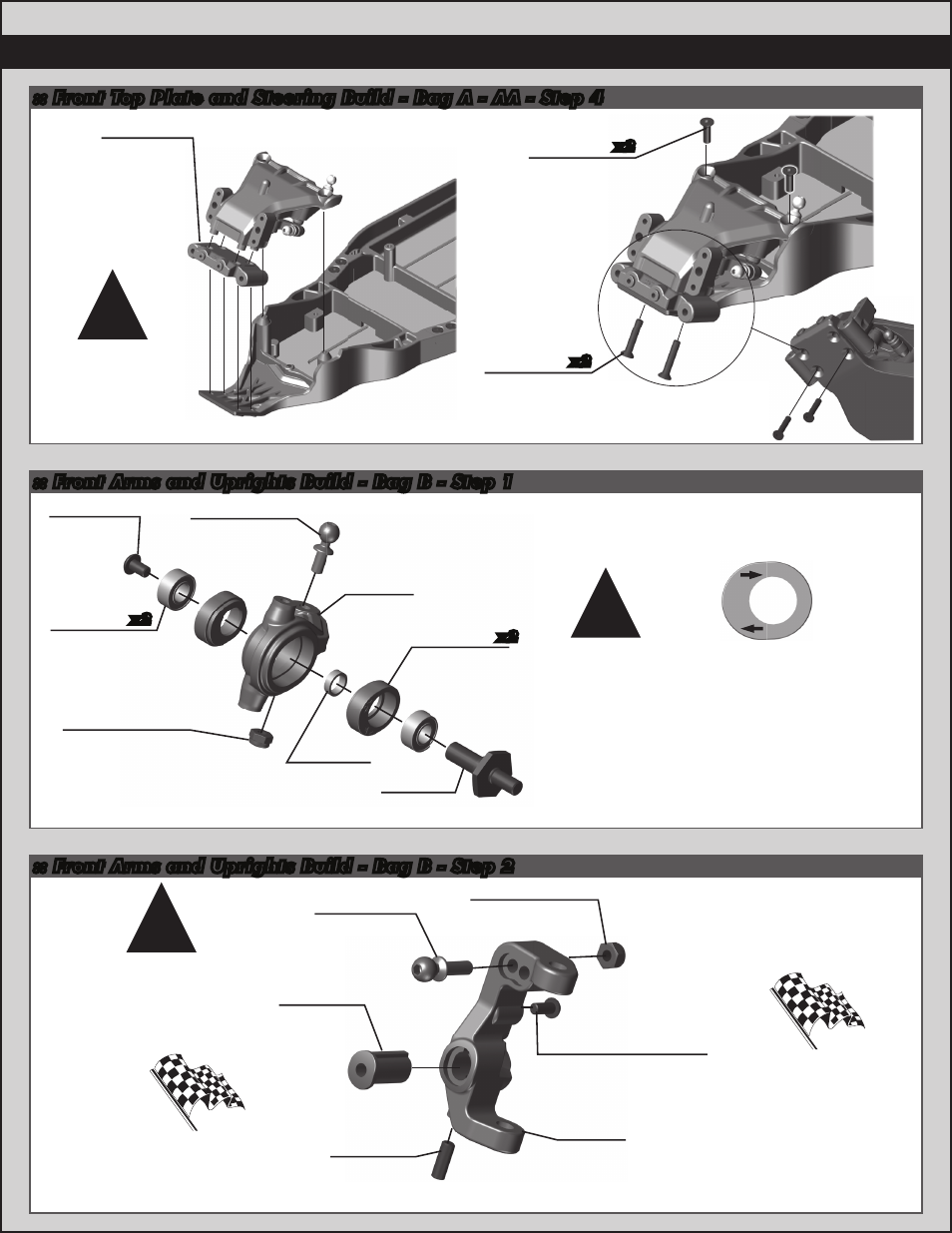

:: Front Top Plate and Steering Build - Bag A - AA - Step 4
Build 2 (1 left, 1 right)
Trailing Axle Inserts
Build 2 (1 left, 1 right)
x2
91049
Heavy-duty
Ballstud,
10mm
31530
M3 x 5mm
BHCS
25215
M3 Locknut,
black
25215
M3 Locknut,
black
25237
5 x 10 x 4
Bearing
91406
Front
Axles
4670
M3 x 8mm
Set Screw
(not included in kit)
91400
Caster
Block Insert
(5°)
91407
Front Axle
Crush Tube
91047
Heavy-duty
Ballstud,
6mm
There are two
caster block inserts
included (0°, 5 °). 5 ° is the
standard one used.
!
91404
Steering
Block Insert
(2-4)
91404
Steering
Block
91400
Caster
Block
31520
M2.5 x 6mm
BHCS
(not included in kit)
x2
There are multiple options for the
trailing axle inserts. 4mm is the
standard setting. Make sure the
arrow is pointing forward for your
desired selection. Also make sure
both the right and left sides are on
the same setting.
You can install an
optional #4670 set
screw to better hold
the caster block inserts
and hinge pin.
You can install an
optional #31520
screw to use as a
steering stop setting.
!
:: Front Arms and Uprights Build - Bag B - Step 2
:: Front Arms and Uprights Build - Bag B - Step 1
2
4
x2
x2
25204
M3 x 16mm
FHCS
91364
Bulkhead
(25 °)
25202
M3 x 10mm
FHCS
There are two
bulkheads included
(25 °, 30 °). 25 ° is
the standard one
used.
!
