2 - 50" Lightbars (1 for each side)
2 - 27" Lightbars (for the front and rear)
Approximately 12 feet of wire lead per Lightbar.
1 - Switch harness w/ 5 amp fuse
All Mounting Hardware:
12 - Mounting clamps
12 - Tie-straps
12 - Self tapping screws
Parts List
LED Lightbars
Mounting Clamp

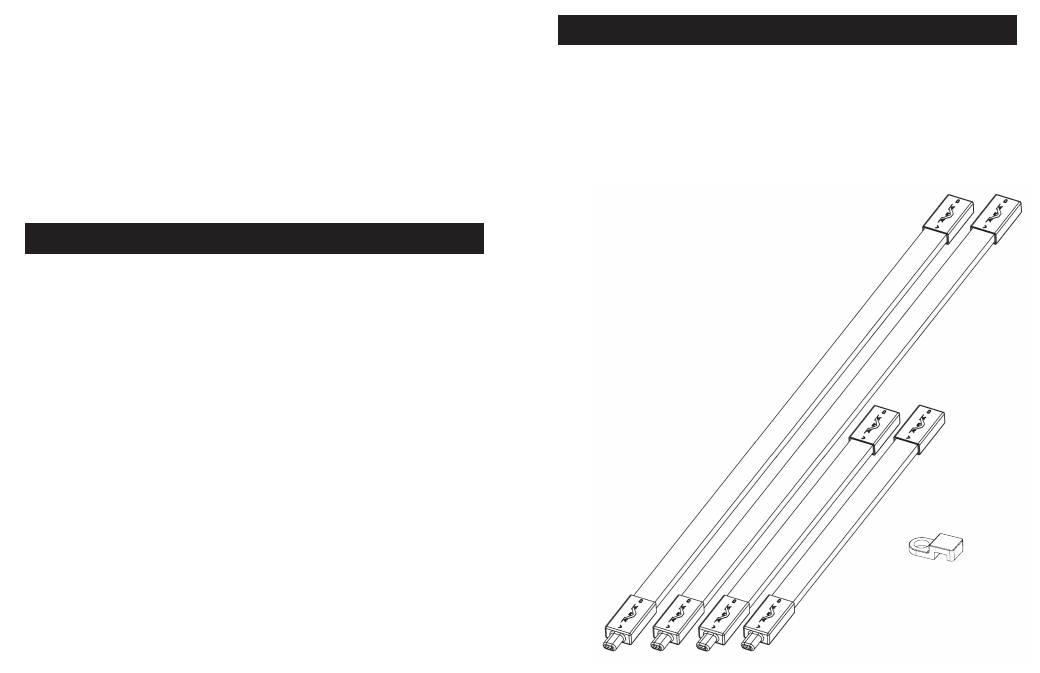

Items not shown to scale
The wiring harness consist of 2 red wires attached to a
switch. The red wire with the in-line fuse installs straight to
the battery's red / positive terminal. The remaining red wire
will need to be connected to the black wires w/ white stripes
from each of the 4 lightbars. The all black wires from the
lightbars will then go to the battery's negative terminal or a
bare metal chassis ground.
Wiring Set-up
3
