233890 05/11 (A03) 18
ALWAYS ENSURE THAT THE MACHINE IS
SWITCHED OFF PRIOR TO CLEANING.
! !

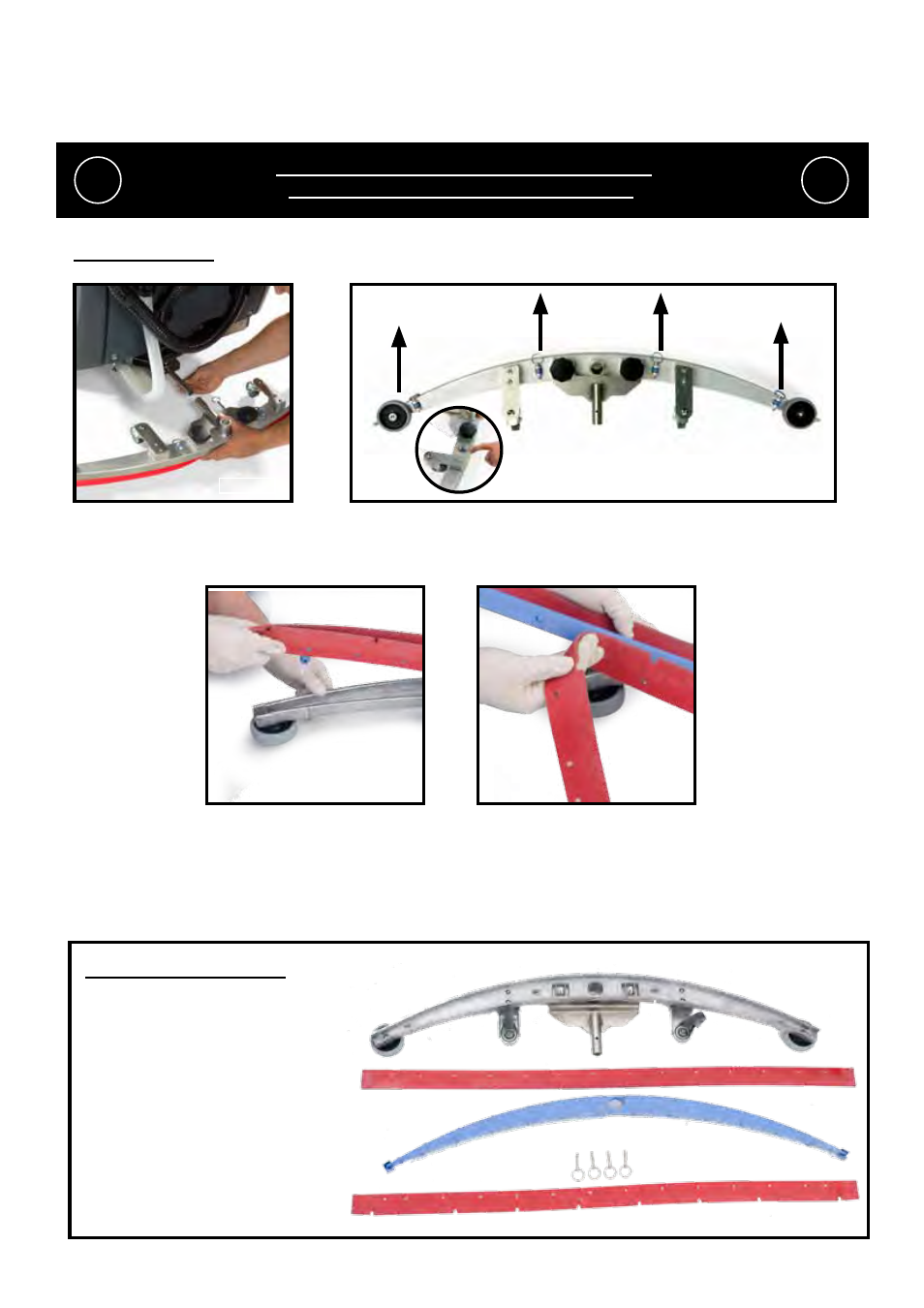

Machine Cleaning
The floor-tool
Fig.32
Fig.34 Fig.35
Fig.33
To clean the floor-tool, remove securing-pin and pull-free from the holder (see fig.31).
Rinse the floor-tool assembly with clean water and refit.
Periodically the floor-tool blades should be examined and checked for wear and damage.
The blade removal is easy. Simply start by removing the four retaining pins (see fig.33), turn the
floor-tool over and separate the blade carrier from the body (see fig.34).Peel away the blades from their locating lugs
(see fig.35) and examine or renew as required.
Replacement is a reversal of the removal process.
Floor-tool overview
1. Floor-tool main body
2. Rear blade
3. Blade carrier
4. Front blade (slotted)
5. Retaining pins x 4
1
2
3
4
5
