Page 5

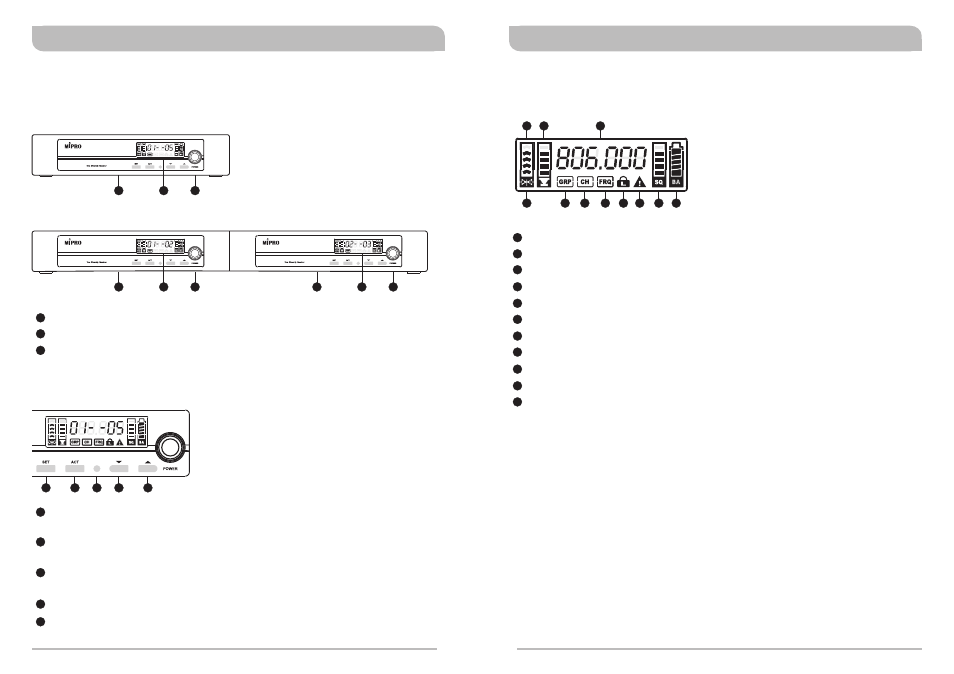

Receiver Controls and Indicators
Front Panel
ACT-515/ACT-515B Single Channel
ACT-515T/ACT-515BT Dual Channel
Receiver Panel: LCD screen and control buttons.
Receiver Display: LCD screen.
Power On/Off Button: Press and hold button to turn the receiver on and off.
2
3
1
SET Button:
To set receiver parameter values like group, channel, frequency,
squelch and lock.
ACT Button:
Facilitates simple frequency synchronization (sync) between
receiver and transmitter.
ACT Sync Port: Align IR sync ports of both receiver and transmitter for
successful frequency synchronization after ACT button is pressed.
▼ Button:
Decrease parameter value.
▲ Button:
Increase parameter value.
5
6
7
8
4
5
6
7
8
4
Displays all Parameters
Antenna A/B reception indicator.
GRP Group icon.
CH Channel icon.
FRQ Frequency icon.
Lock mode icon: Locked (lit).
Interference warning icon (lit).
SQ Squelch Level: Indicate Sensitivity Level.
Transmitter Battery Level: Indicate current transmitter battery level.
RF Signal Level: Indicate RF signal strength from the transmitter.
Audio Signal Level: Indicate audio signal strength from transmitter.
Channel & Frequency Display: Display Group/Channel & Frequency.
9
11
13
10
12
14
15
16
17
18
19
18
19
17
10
11
12
13
14
15
16
9
Receiver LCD Interface
4
5
Diversity Wireless Systems
Diversity Wireless Systems
3
2
1
ACT-515B
3
3
2
2
1
1
ACT-515B
ACT-515B
