Page 11

Wireless Accessories & Replacement Parts
FB-71:
Rackmount kit fits 1 ACT-515/ACT-515B receiver alone.
FB-72:
Rackmount kit fits 1 ACT-515T/ACT-515BT receiver alone.
FBC-71:
Rear-to-front cables only(1-pair). It allows front mount antenna placement
for improved reception quality.
AT-20:
Detachable 1/2 Wave Coaxial Antenna.
AD-707a: UHF 4-channel Wideband Antenna Divider System (470MHz ~ 850MHz).
AD-708:
UHF 4-channel Wideband Antenna Divider System (470MHz ~ 850MHz).
AT-90w:
UHF Wideband Directional Antenna (470MHz ~ 1GHz).
AT-100:
UHF Wideband Directional Antenna (470MHz ~ 1GHz).
AT-70:
UHF Ground Plane Antenna (1-pc, 2-pcs recommended)
MPB-20:
UHF Antenna Booster (1-pc, 2-pcs recommended)
AD-90S:
UHF 4-Channel Wideband Power Splitter.
AT-90A:
UHF 4-Channel Wideband Power Amplifier.
AD-808:
UHF 4-Channel Active Antenna Combiner.

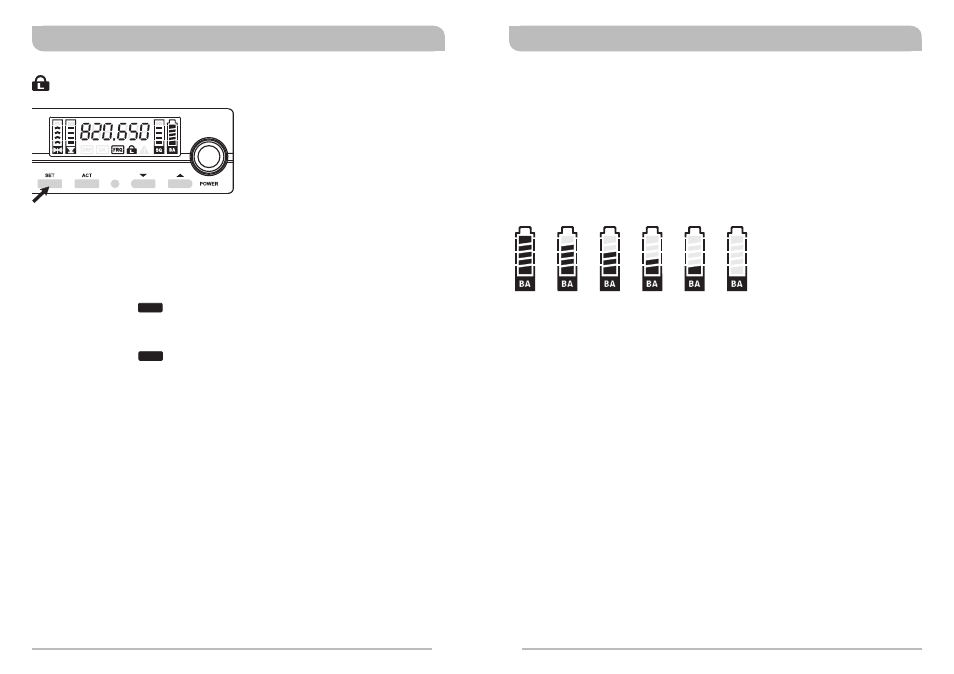

Battery Status:
The battery meter is lit when the transmitter is powered on. The battery meter
gives a percentage (%) indication of remaining battery life, as shown. Replace with
new, fresh batteries when battery indicators fall to 10% (1 indicator remaining).
The BA battery cursor starts blinking when transmitter is powered-on and signal is
received. After 3~5 seconds, the cursor will stop blinking and accurate battery level
will be displayed.
!
!
100%
90%
80%
40%
10%
0%
BA: Transmitter Battery Level
Instructions:
The purpose of Lock function is to lock and prevent accidental changing of settings.
To Lock setting:
Press and hold the 'SET' button for approximately 3 seconds until the Lock icon
appears.
To Unlock setting:
Press and hold the 'SET' button for approximately 3 seconds until the Lock icon
disappears.
!
!
LOCK Setting
Dimming & Lit Display Mode
Dim (Stand-by) Mode:
LCD screen is lit red.
No signals received from the transmitter or button not pressed within 10 seconds.
Lit (Performance) Mode:
LCD screen is lit green.
Signals received from the transmitter or button is pressed.
!
!
Press
SET
SET
16
17
