Model NuMber: CarlyN ® SerieS (1401, 1403)
Customer Service: 561-274-2110
www.decolav.com
Let your dreams come aLive, your passions
become reaLity, be the envy of your neighbors
®
2
062409
Faucet Hole
16 1/4"
413mm
19 1/4"
489mm
Undermount Clips
Fitting Line
BOTTOM VIEW
Finished Wall
13"
330mm
34"
Suggested
864mm
SIDE VIEW
Finished Floor
Faucet Hole
1 3/4"
Drain Hole
44mm
2"
Suggested
51mm
2 3/4"
69mm
2 3/4"
Suggested
69mm
16.535in
Cutout dimension
420mm
13.583in
Cutout
dimension
345mm
H H
TOP VIEW
Fitting Line
Finished wall
or backsplash
7 3/16"
183mm
1 1/4"
Waste
32mm
34"
Suggested
864mm
13"
330mm
11"
279mm
8"
203mm
FRONT VIEW
Finished Floor
Supplies as
required
reCoMMeNded toolS

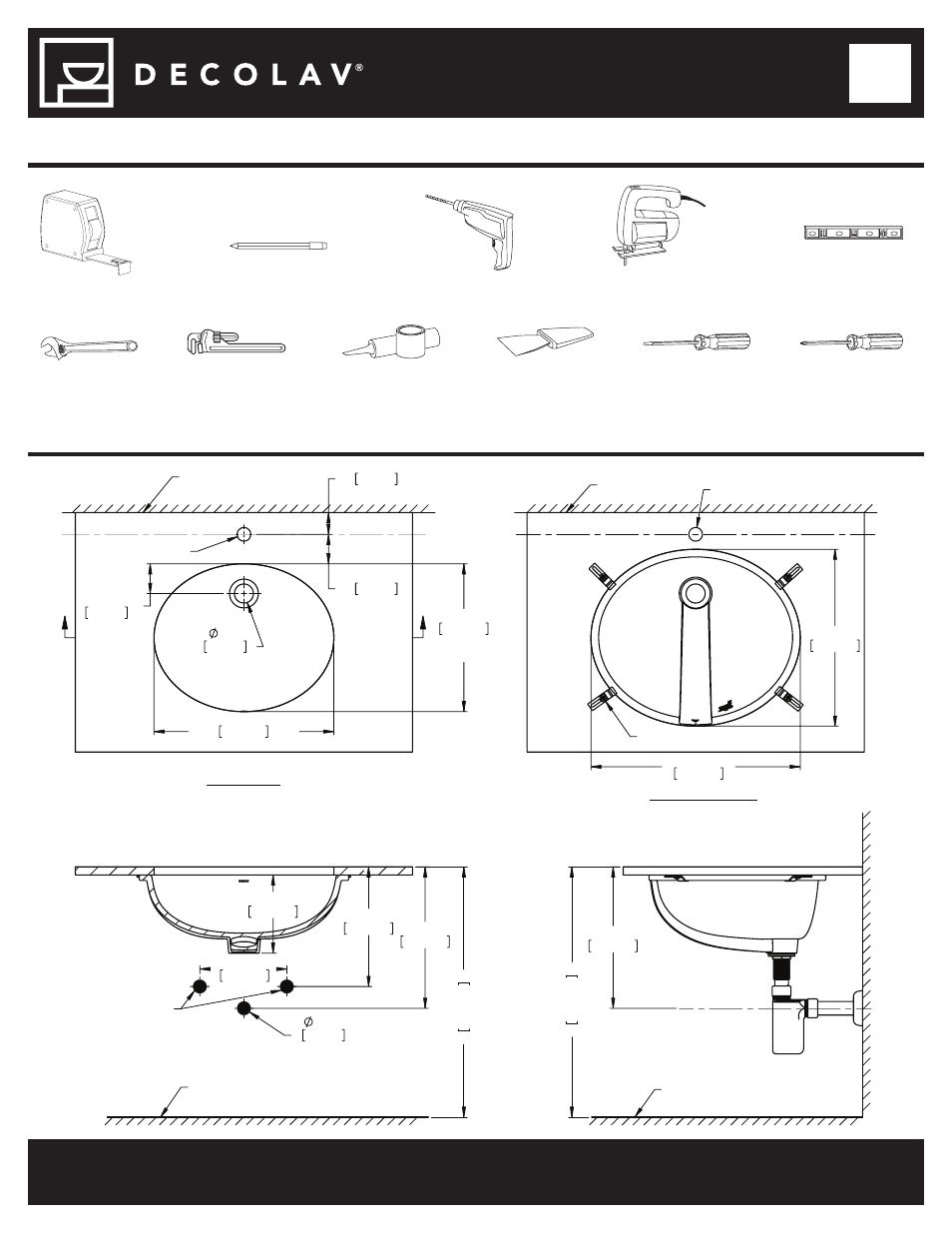

roughiNg-iN diMeNSioNS
tape measure
adjustable Wrench
drill Level
phillips
screwdriver pipe Wrench
plumber’s putty or
caulking putty Knife
flathead
screwdriver
scroll saw pencil
