3.11. Removing the Terminal Cover
3.11.1. Frame Size 2
3.11.2. Frame Size 3
3.11.3. Frame Size 4
3.11.4. Frame Size 5
Using a suitable flat
blade screwdriver,
rotate the two
retaining screws
indicated until the
screw slot is vertical.
Using a suitable flat
blade screwdriver,
rotate the four
retaining screws
indicated until the
screw slot is vertical.

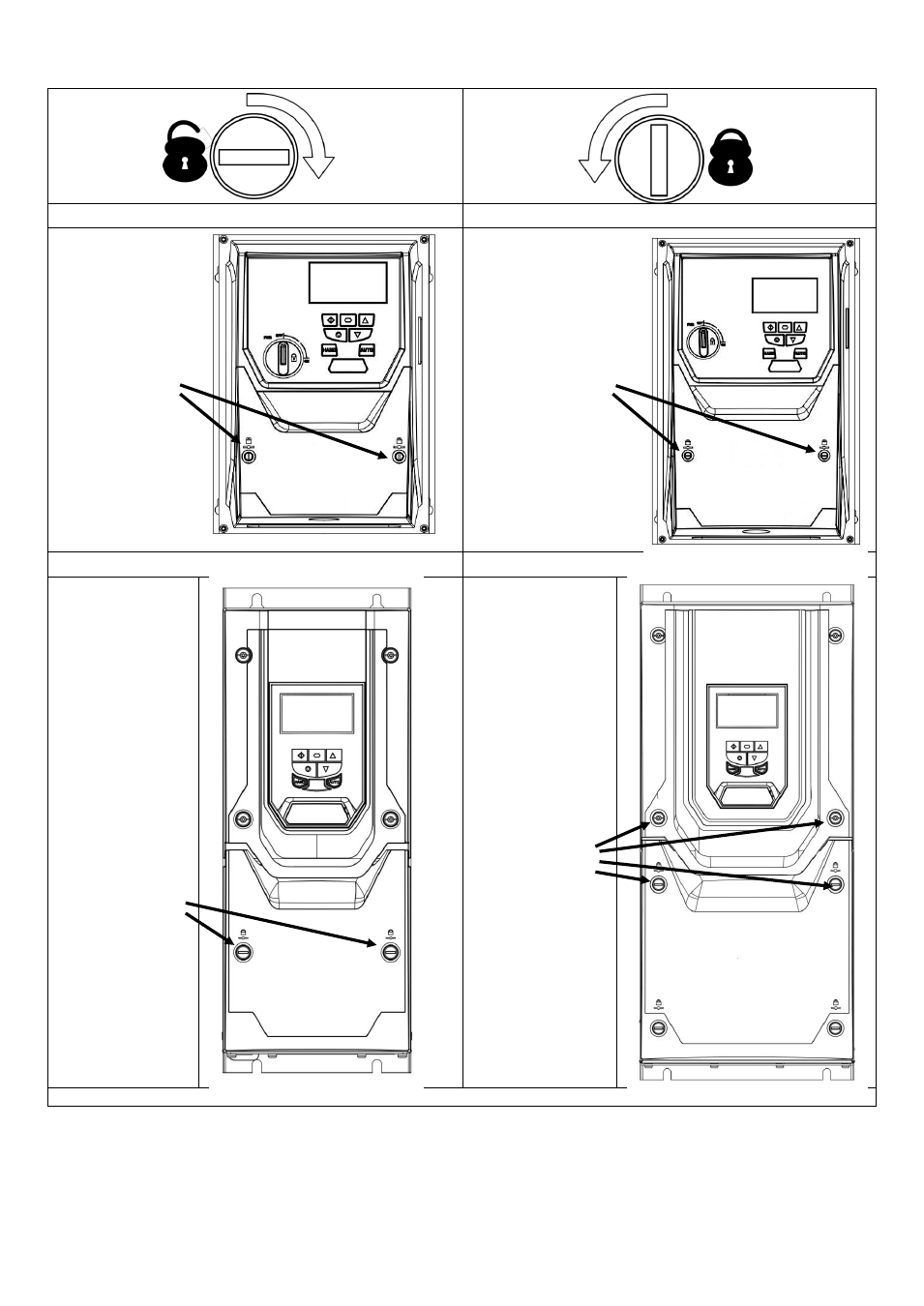

Terminal Cover Release Screws
Using a suitable flat
blade screwdriver,
rotate the two
retaining screws
indicated until the
screw slot is vertical
Using a suitable flat
blade screwdriver,
rotate the two
retaining screws
indicated until the
screw slot is vertical
