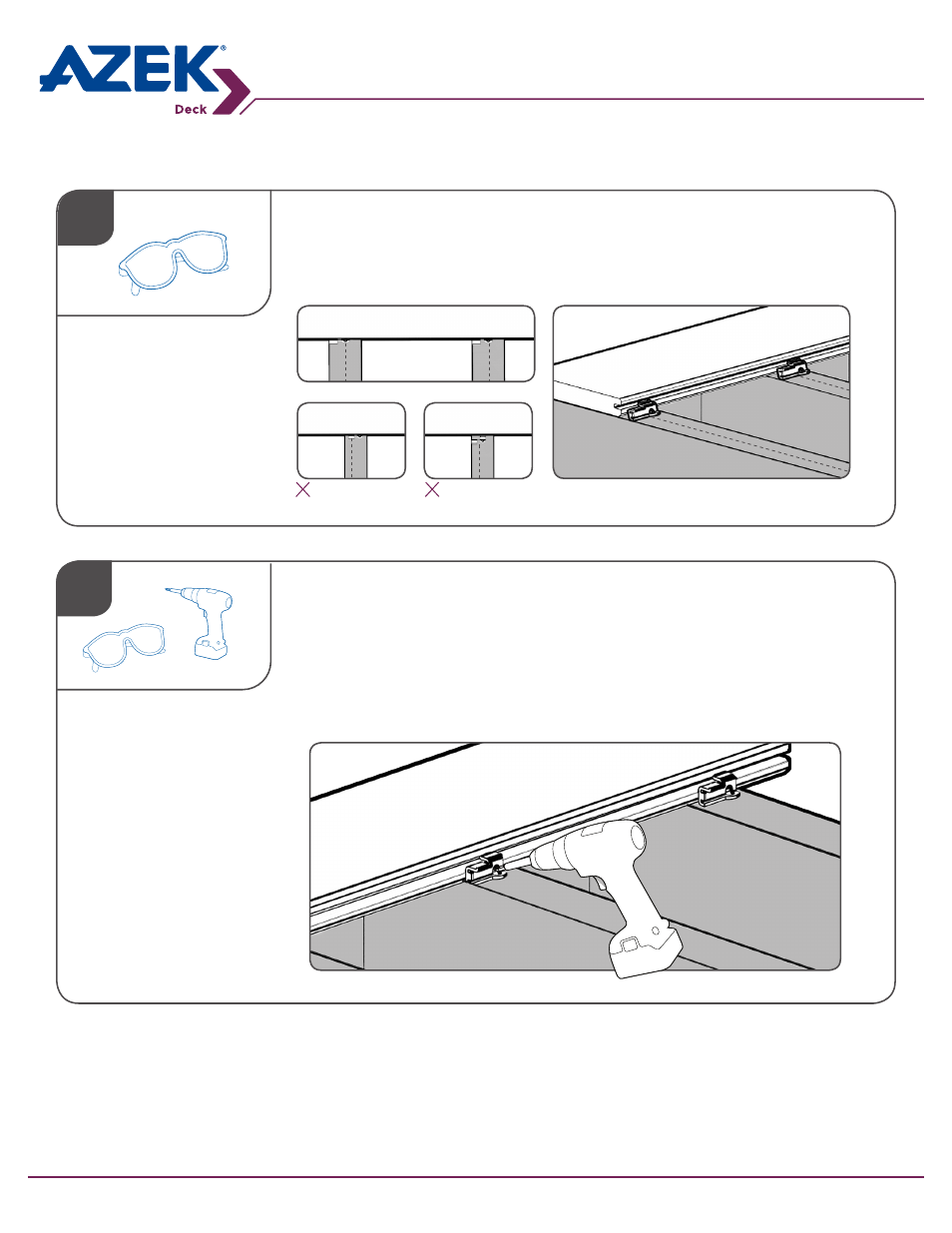

• Fully insert the CONCEALoc fastener into grooved edge of plank.
Screw hole should be lined up with the center of support joist.
• Install provided screw at 45° angle through the fastener and into the joist
while applying pressure on the fastener.
• Install one fastener and screw at each joist.
• Make sure fastener is in full contact with edge of plank and the screw is
holding the fastener down tight to the deck board.
POSITION CONCEALoc FASTENERS
INSTALL CONCEALoc FASTENERS
Incorrect Incorrect
Correct
Correct
