WideSHOT WallVIEW SR
WideSHOT WallVIEW SR System Document Number 342-0695 Rev B
Page 16 of 20
A
PPENDIX
1:
P
IN
-
OUTS FOR
W
IDE
SHOT
C
AMERA

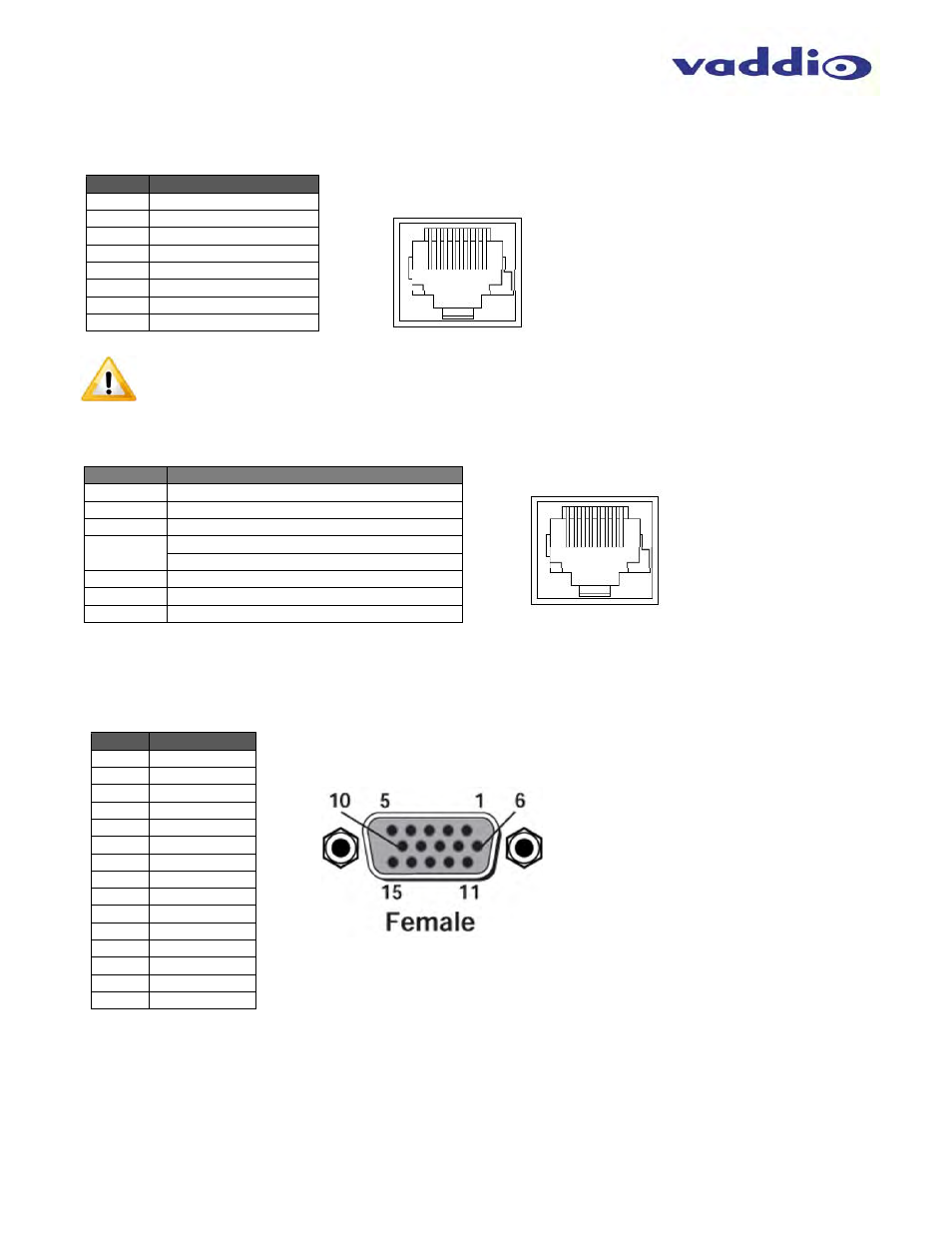

Table EZCamera
Power & HD Video RJ-45 Connector Pin-outs
WideSHOT EZPOWER HD VIDEO PORT
Important Note: The EZ POWER HD VIDEO RJ-45 Connector is for use with the Quick-Connect SR,
Quick-Connect DVI/HDMI SR, Quick-Connect USB and USB Mini Interfaces ONLY (568B Wiring
Standard). The video signals are differential (HSDS™) and can only be received by the interfaces
above.
WideSHOT Camera RS-232 Port
Pin #
Function
Pin - 1
N/A
Pin - 2
N/A
Pin - 3
N/A
Pin - 4
IR Output (Diff Signal to Quick-Connect SR Only)
Pin - 5
IR Ground (Diff Signal to Quick-Connect SR Only)
Pin - 6
Digital GND
Pin - 7
RXD (from TXD of control source)
Pin - 8
TXD (to RXD of control source)
A
PPENDIX
2:
P
IN
-
OUTS FOR
Q
UICK
-C
ONNECT
SR
I
NTERFACE
Table: DE-15 - YPbPr Pin-Out
Pin
YPbPr
1 Power+
2 Power-
3 Y+
4 PB+
5 PB
-
6 Y
-
7 PR+
8 PR-
Pin
YPbPr
1 Pr
2 Y
3 Pb
4 -
5 -
6 Pr
GND
7 Y
GND
8 Pb
GND
9 -
10 GND
11 -
12 -
13 -
14 -
15 -
12345678
EZ POWER
HD VIDEO
RS-232
12345678
