WallVIEW PRO Z700 Installation and User Guide 341-674 Rev. B Page 8 of 12
300 200
POWER
36V 2A
>100 400+
Y-GAIN CAM SELECT
Y C
Y PB
COMP SD
PR HD DISTANCE
GN
D
SI
G
.
CAMERA IR VIDEO ADJUST VIDEO OUTPUTS VIDEO
IR GAIN

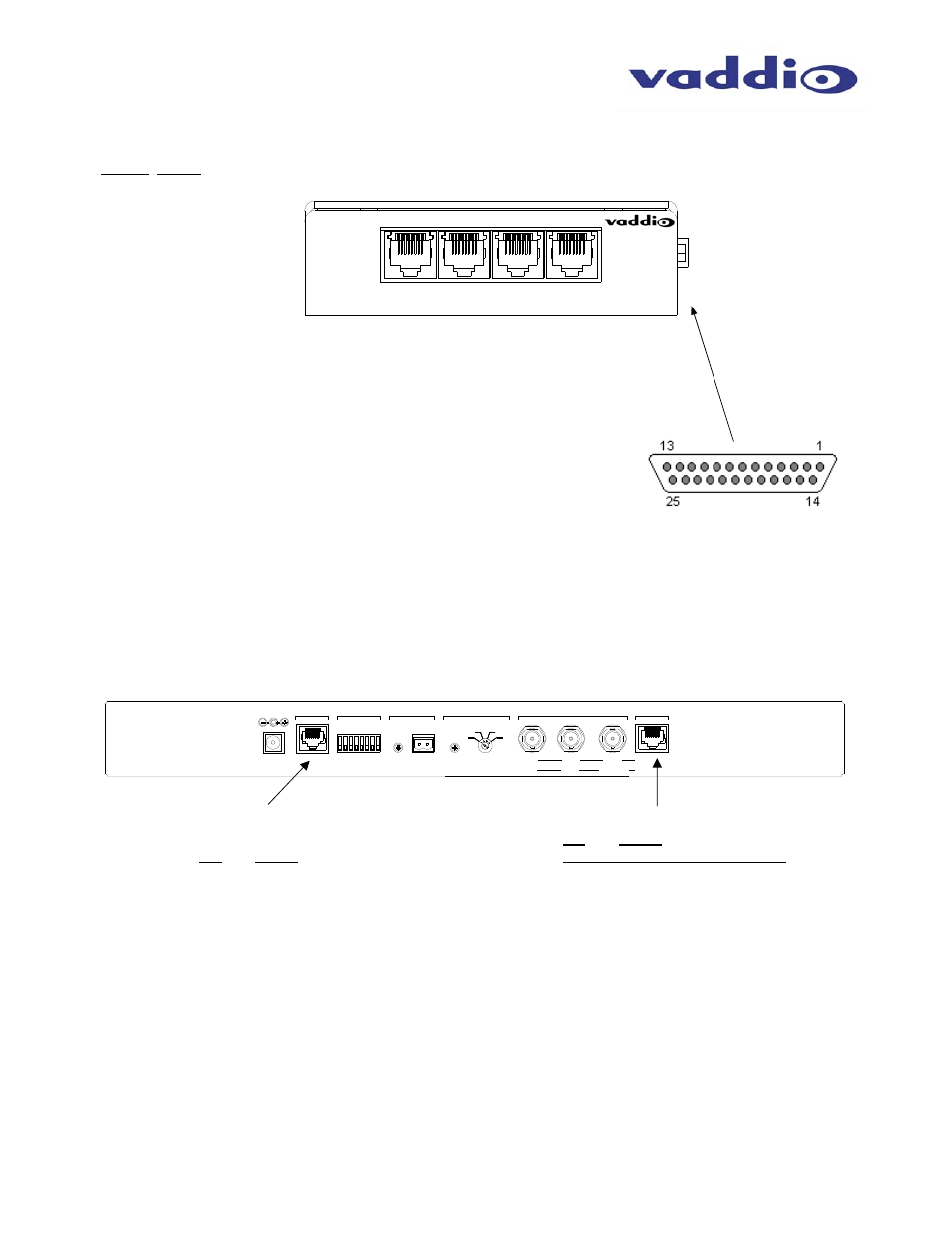

EZCamera Interface Module Pin-outs (continued)
DB-25 Connector
Pins Signal
1 GND
Out
14 RXD Out
2 TXD Out
15 DTR Out
3 DSR Out
16 GND IN
4 TXD IN
17 RXD IN
5 DTR IN
18 DSR IN
6 IR
19
GND
7 GND
20
CVBS/PR
8 GND
21
C/PB
9 GND
22
Y/Y
10 GND
23
GND
11 GND
24
12V
12 12V
25
12V
13 12V
Quick-Connect Pin-outs
Power Connector
Pin Signal
1 Power
+
2 Power -
3 Power +
4 Power -
5 Power +
6 Power -
7 Power +
8 Power -
Video Connector
Pin Signal
SD
HD
1) IR+ IR+
2) IR GND IR GND
3) Y+ Y+
4) C+ PB+
5) C- PB-
6) Y- Y-
7)
Comp. Video + PR+
8) Comp. Video - PR-
VIDEO POWER RS-232
OUT
RS-232
IN
EZIM
