WallVIEW PRO HD1 Installation and User Guide 341-661 Rev. D Page 3 of 14
Polycom
Breakout
Cable
Polycom HDX-8000
Series Codec

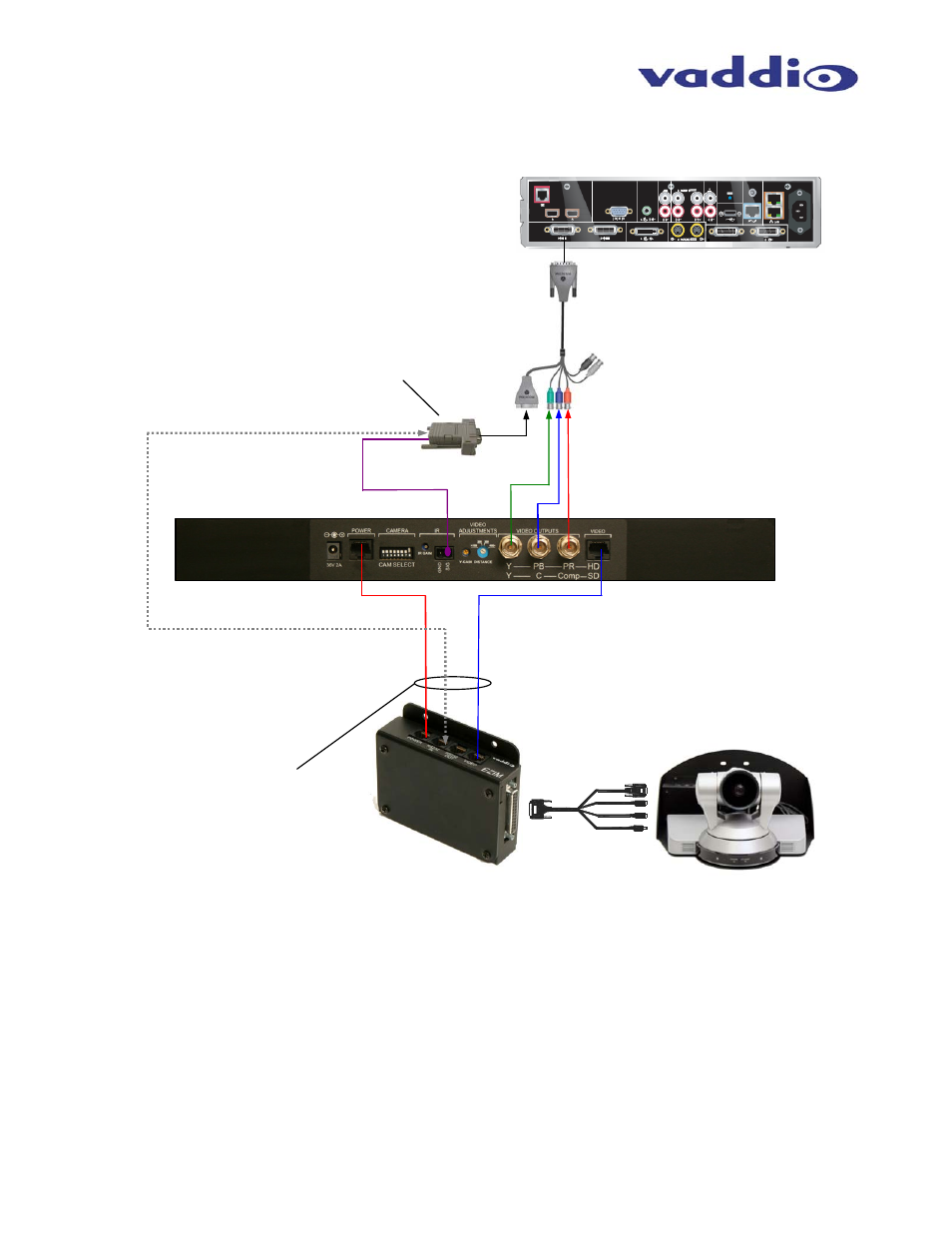

Wiring Diagram Example for HDX 7000 and 8000 Series Codecs:
Requires optional DB-9M to RJ-45 Adapter – Part # 998-1006-232
Figure 3: The WallVIEW HD1 connected to an HDX 7000 / 8000 series codec uses an Optional RJ-45 to DB-9M adapter
(998-1006-232) for PTZ and IR control between the HD1 and codec. IR signals are fed from the HD1 camera, to the
Quick-Connect rack mount unit – see Step 9 for additional information on wiring the HDX 7000 / 8000 codecs. The Power,
Video and Control Cat. 5 cables can be run up to 500 from the Quick-Connect box to the EZ Interface Module, which
connects to the camera.
Up to 500’ (152.4m) of Cat. 5
for Power, Video and Control
RS-232 Cat. 5
Video Cat. 5 Power Cat. 5
Quick-Connect PRO
Rack Mount Interface
Component Video (Y, Pb, Pr)
to breakout cable
IR Signal Wire
Optional 998-1006-232
RS-232 and IR Adapter
(see Page 7)
HD1 on Mount with EZIM
Vaddio HD
Interface Cable for
WallVIEW HD1
