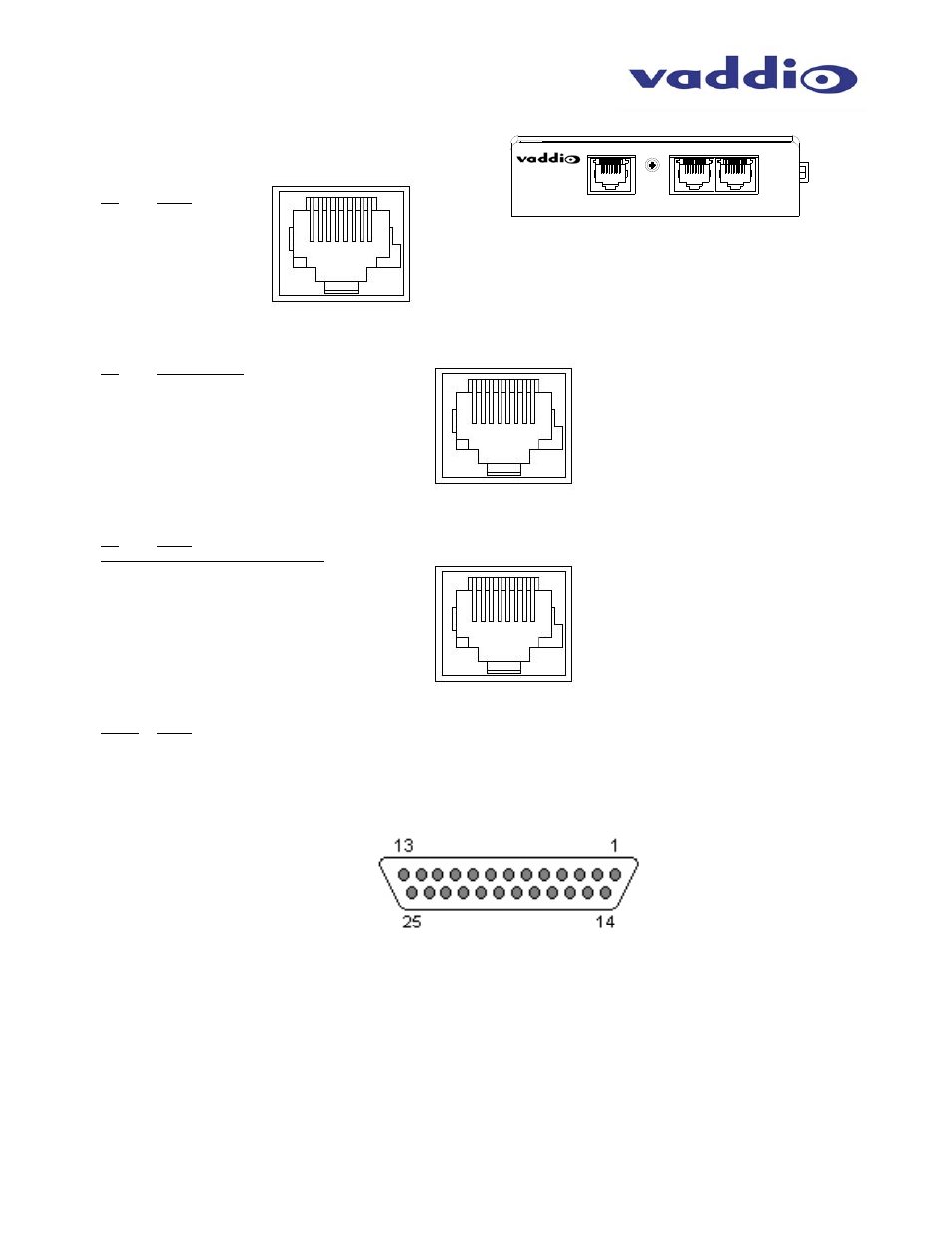

EZIM CCU Pin-out Assignments
Power Connector RJ-45
Pin Signal
1) Power
+
2) Power -
3) Power +
4) Power -
5) Power +
6) Power -
7) Power +
8) Power -
RS-232 IN Connector
Pin
Signal - RS-232
1) Not Used
2) Not Used
3) Not Used
4) G/L+
5) G/L GND
6) GND
7) RXD (from TXD)
8) TXD (to RXD)
Video Connector RJ-45
Pin Signal
SD
HD
1) CVBS + CVBS +
2) CVBS GND CVBS GND
3) Y+ Y+
4) C+ PB+
5)
C GND PB GND
6) Y GND Y GND
7) Not Used PR+
8) Not Used PR-
DB-25 Connector
Pins
Signal
1 CVBS GND
14
CVBS
2 G/L GND
15 G/L
3 NC
16
GND IN
4 TXD IN
17 RXD IN
5 NC
18
NC
6 NC
19
NC
7 GND - PR
20 PR
8 GND - C/PB
21 C/PB
9 GND - Y/Y
22 Y/Y
10 GND - PWR
23 GND - PWR
11 GND - PWR
24 12V - PWR
12 12V - PWR
25 12V - PWR
13 12V - PWR
12345678
12345678
12345678
POWER
EZIM
CCU
VIDEO
G/L
GAIN
RS-232 IN/
G/L IN
