For Vaddio Cameras and Control Systems
The Sony Remote Control Joystick can control
all camera settings including the Pan/Tilt/Zoom
functions and six presets patterns. The
ergonomic joystick and feature rich control
panel provide superb operability in various
remote-shooting applications (Figure 1).
Vaddio/Sony Joystick Control Bundle Includes:
• Sony Joystick Remote Control Unit
• Custom 20’ (6.1m) VISCA Cable (8-Pin mini din to DB-9M)
• Custom 20’ (6.1m) ControlVIEW Xtreme Link Cable (9-pin Phoenix Type to DB-25M)
for tally contact output
• Power
Supply
• AC Cable (North America or Euro)
Key Product Features:
• Joystick can control up to seven VISCA based PTZ cameras (daisy chained control
configuration only - Figure 2).
• Preset memory supports up to 16 combinations of settings (EVI-D100, EVI-D70 and
BRC-300 have only 6 presets per camera), including camera position, zoom, focus
and backlight can be stored in the memory of the camera using this unit.
• An external video switcher with the contact control interface can be used to switch
between different camera video sources (contact closure)
• RS-232 or RS-422 communication interfaces
• Control of brightness, white balance, focus (auto/manual)
Table 1:
Vaddio/Sony Joystick Control Bundle – General Specifications
Vaddio/Sony Joystick
Bundle Part #s
NTSC – 999-6605-000
PAL – 999-6605-001
Camera Control
Interface
RS-232C (VISCA protocol) / RS-422
(VISCA protocol)
External control
Contact Closure (tally contacts)
Power requirement
DC 10.8 to 13.2 V
Power consumption
2.4 W
Compatible Cameras
All Vaddio VISCA Control Camera
Packages
Sony EVI-D100, EVI-D70, BRC-300
Maximum Number of
Controllable Cameras
Seven Cameras – Daisy Chain Only
Dimensions (W x H x D)
15-1/2” x 7-3/8” x 5-3/4”
39.13cm x 18.5cm x 14.59cm
Weight
2 lb - 1 oz
950 g

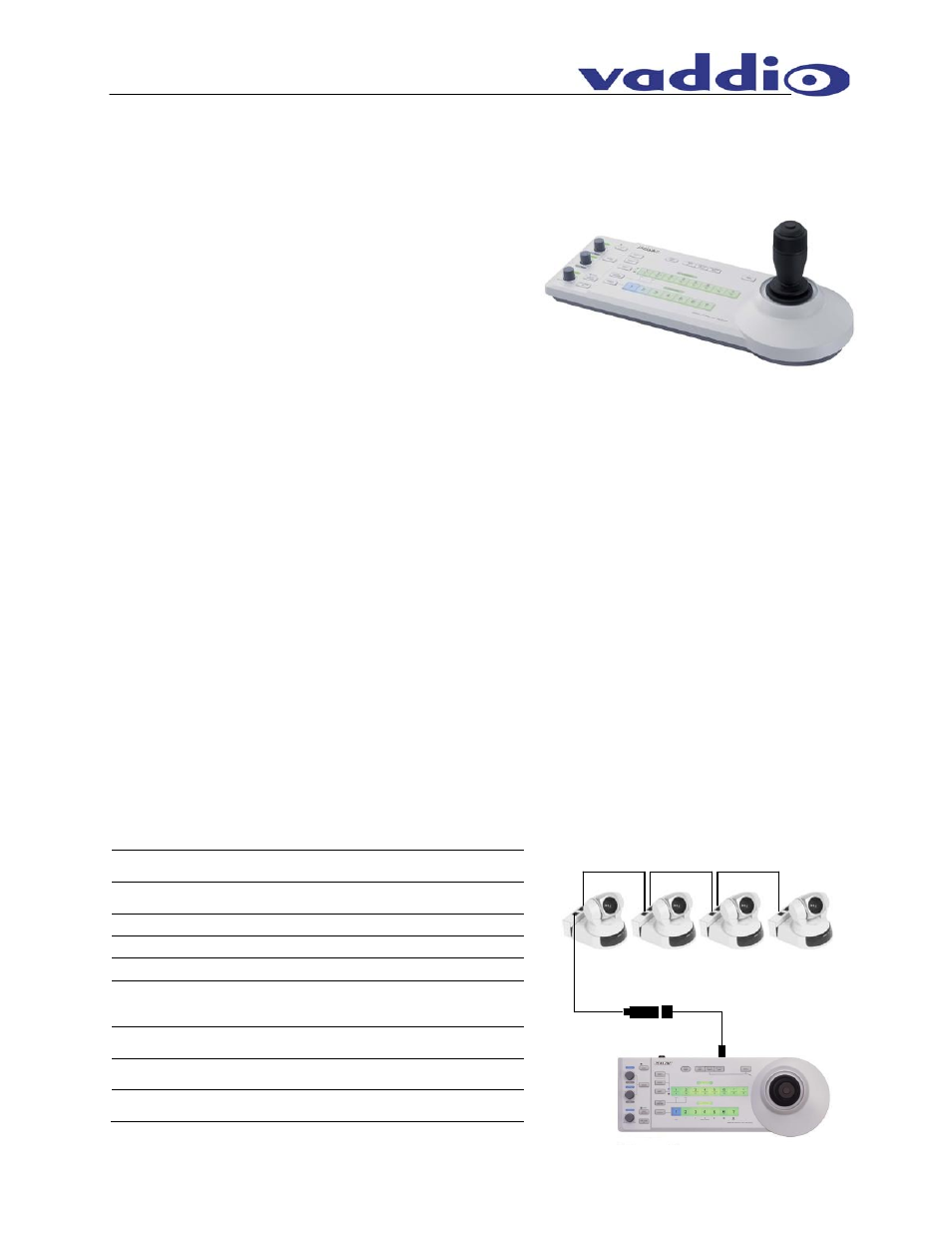

Figure 1:
Sony RM-BR300
Joystick Remote Control Unit
Figure 2:
Sony RM-BR300 Joystick with Daisy Chain Control
RS-232
RS-232*
RS-232*
* = RS-232 on Cat. 5
RS-232*
IN
OUT
IN
IN
IN
OUT OUT
Four (4) Vaddio Model 100 PTZ EZCamera Camera
Kits with Cat. 5 Camera Shoes and Control Adapters
Cat. 5
EZCamera Control Adapter
DB-9F to RJ-45F (Cat. 5)
20’ (6.1m) VISCA Cable
(8-Pin mini din to DB-9M)
