Vaddio ClearVIEW HD-USB PRO User Manual
Page 8

WallVIEW HD-USB PRO Camera System
WallVIEW HD-USB PRO Camera System Document Number 342-0467 Rev. E
Page 8 of 40

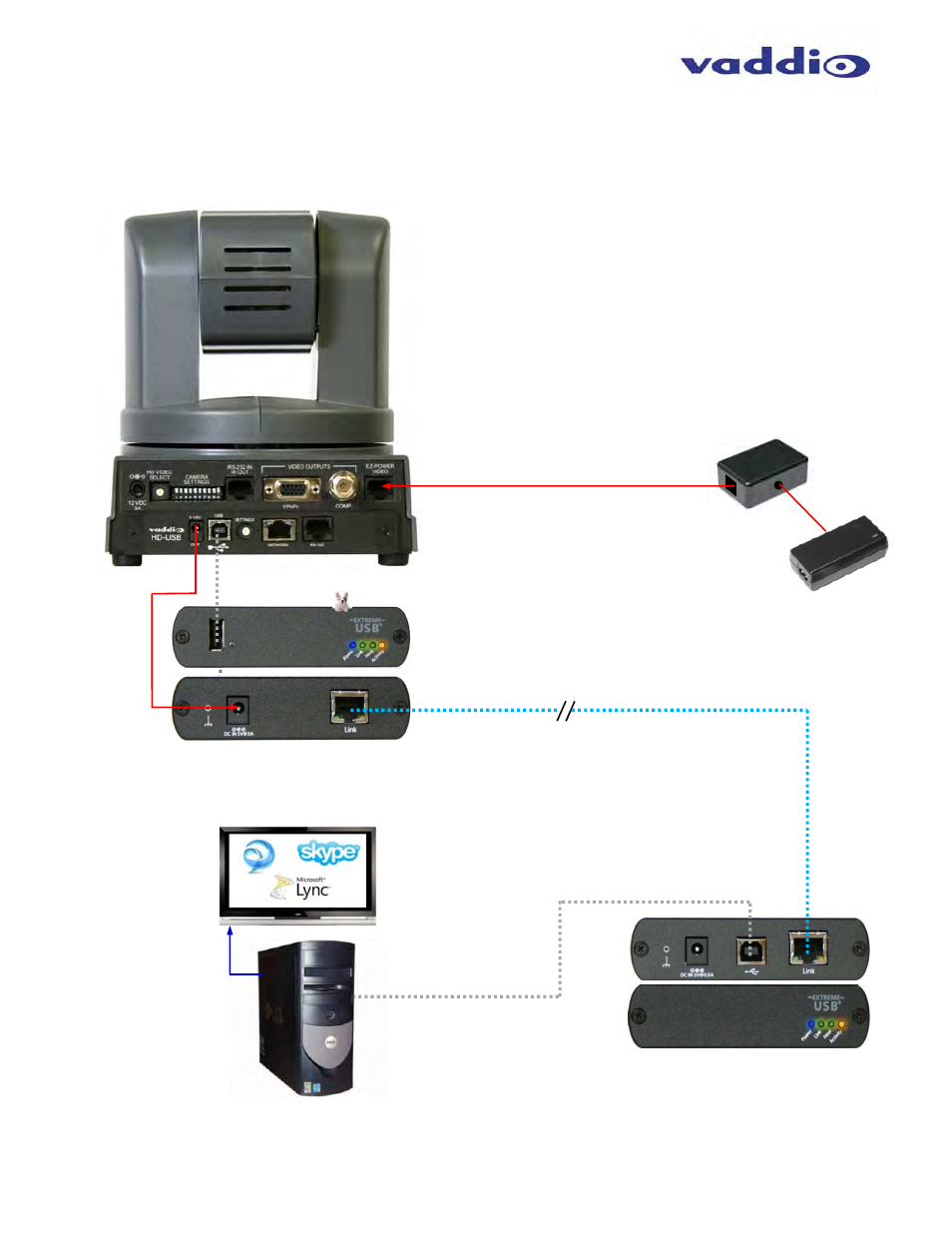

Diagram: Connection Detail with the Power Extension Module and the Active USB 2.0 Extension Cable
The 24VDC connection from the Power Extension Module to the camera can provide adequate power up to 150’
(45.7m) away. The Extreme UBS 2.0 Extenders can amplify the USB 2.0 signal up to 328.1’ (100m) on a single
CAT-5 or better cable.
CAT-5 Cable - 24 VDC Power
(Pin 1: +, Pin 2: -)
24 VDC, 2.75A
Power Supply
Power Extension
Module
The 24VDC connection from the
Power Extension Module will
power the camera up to 150’
(45.7m) away.
HD-USB PTZ Camera
Rear View
DC Power
1’ (305mm)
USB 2.0
Cable
Extreme USB 2.0 Extender
RX Unit - Front and Rear Views
Host Tower PC
with UC Application
PC Video Monitor
The CAT-5 cable between the
Extreme USB 2.0 Extenders can
carry the signal up to 328.1’ (100m)
USB 2.0
Cable
PC HD
Video
5 VDC
from
Camera
Extreme USB 2.0 Extender
TX Unit - Front and Rear Views
