Quick-Connect 4
Vaddio Quick-Connect 4 - Document 341-256-1 Rev C
Page 5 of 8
4-Camera
Quick-Connect 4
Head End Daisy
Chain Example
Detail
Note: Cat. 5 Cable
Maximum Length for
this Control
Configuration:
50’/15.24m
PIN-OUTS
Video/Power
The pin-outs for the Quick-Connect 4’s Video, Power and Control
connectors are as follows:
Video/Power Connection RJ-45
RJ-45 Pins
1) Power
(+)
2) Power GND
3) Video GND
4) Y (luminance)
5) Video GND
6) C (Chrominance)
7) Video GND
8) Composite Video
3-Cat.5
Homeruns
3-Cat.5
Homeruns
3-Cat.5
Homeruns
2-Cat.5
Homeruns

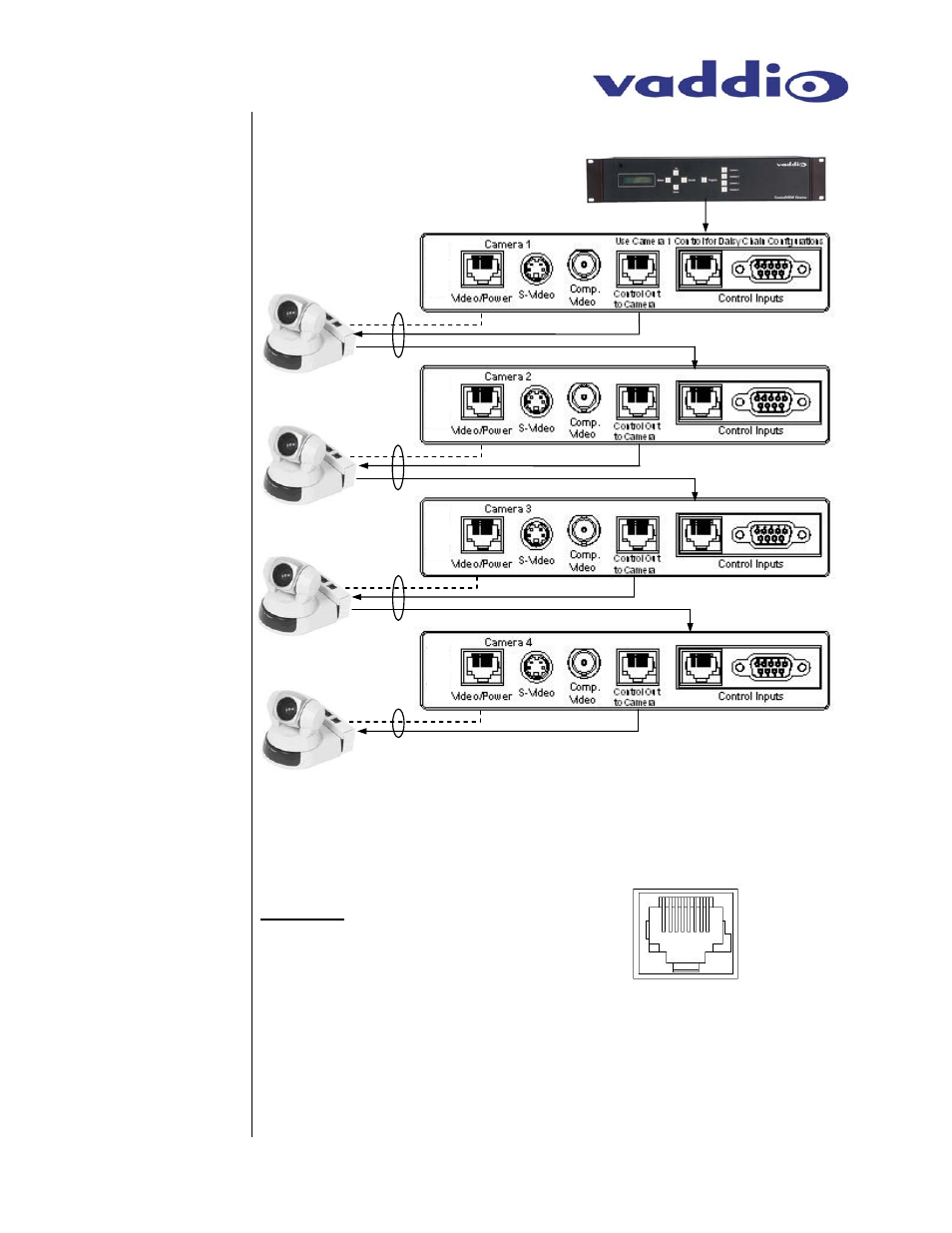

Figure 7: Connection Detail for Head End Daisy Chain using the Quick-Connect 4
Camera 1
Vaddio Model
100 PTZ
Camera 2
Vaddio Model
100 PTZ
Camera 3
Vaddio Model
100 PTZ
Camera 4
Vaddio Model
100 PTZ
Control Source
ControlVIEW Xtreme
Control to Camera
Control Out to QC4
Control to Camera
Control to Camera
Control to Camera
Control Out to QC4
Control Out to QC4
12345678
Video/Power
Top
View
