HuddleSTATION
Vaddio HuddleSTATION - Document Number 342-0692 Rev B Page 15 of 44
Step 2: Route Cables in Cable Tray
Place the interface cables (LINK, Power, Ethernet and HDMI) into the integrated cable tray on the wall bracket.
Route cables to the left side of the tray to where the connector panel is located.

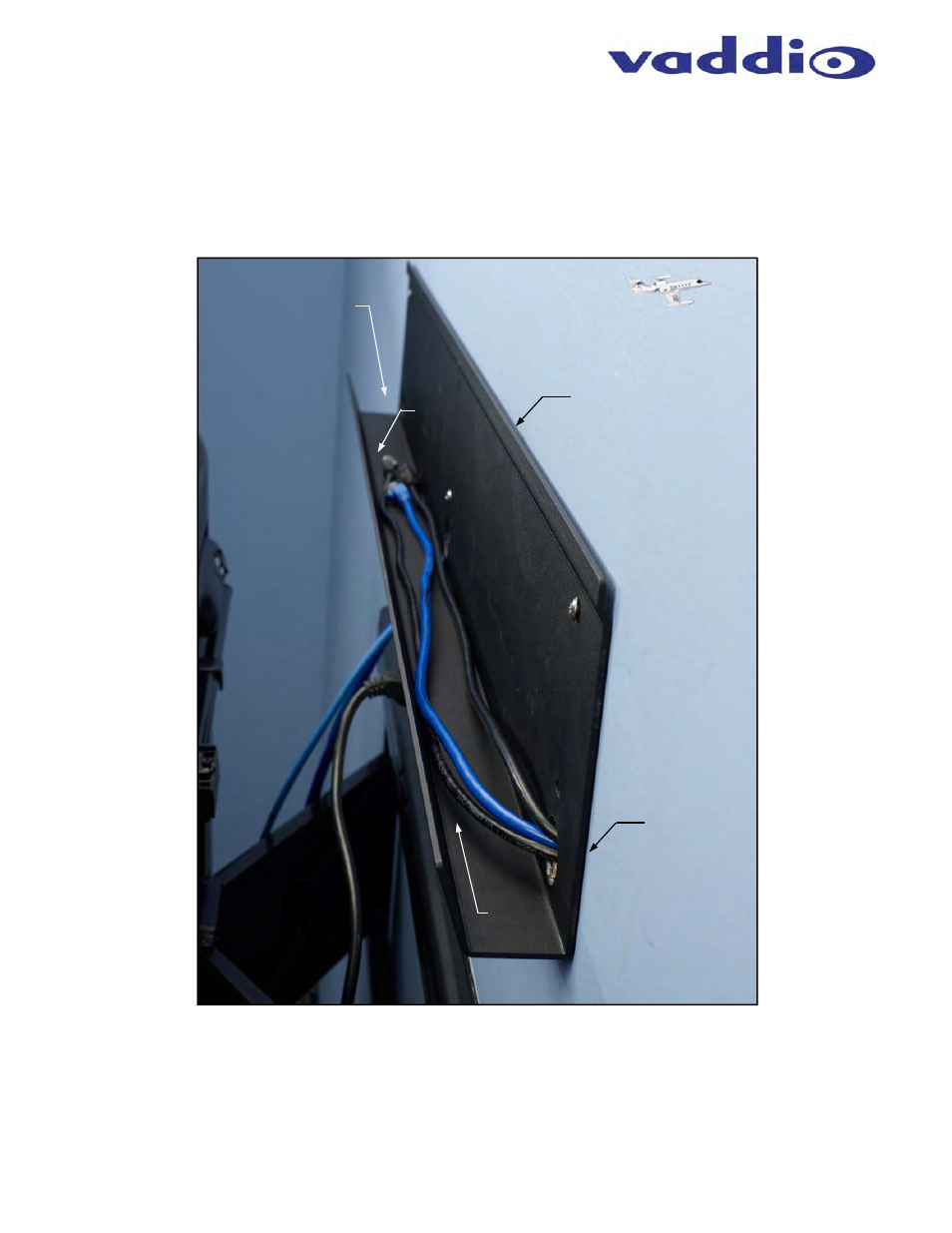

Image: Side View of Wall Mount and Cable Tray
Pull enough cable through the cable tray (about 6” to 8”) to allow easy connections to the left side connector panel
once the Camera/Sound Bar is mounted to the wall.
Cables in
cable tray
Wall
Mount
Monitor
Mount
Z-Clip Top Channel
Cabling is in-wall
All cables routed
to left side
All cables
routed to left
side of Wall
Mount
Pull cables to 6”-8” past
the end of the tray for
easy connection
