Extreme USB 2.0 Extenders
Extreme USB 2.0 Extenders - Document Number 342-0468 Rev D
Page 4 of 16
U
NPACKING

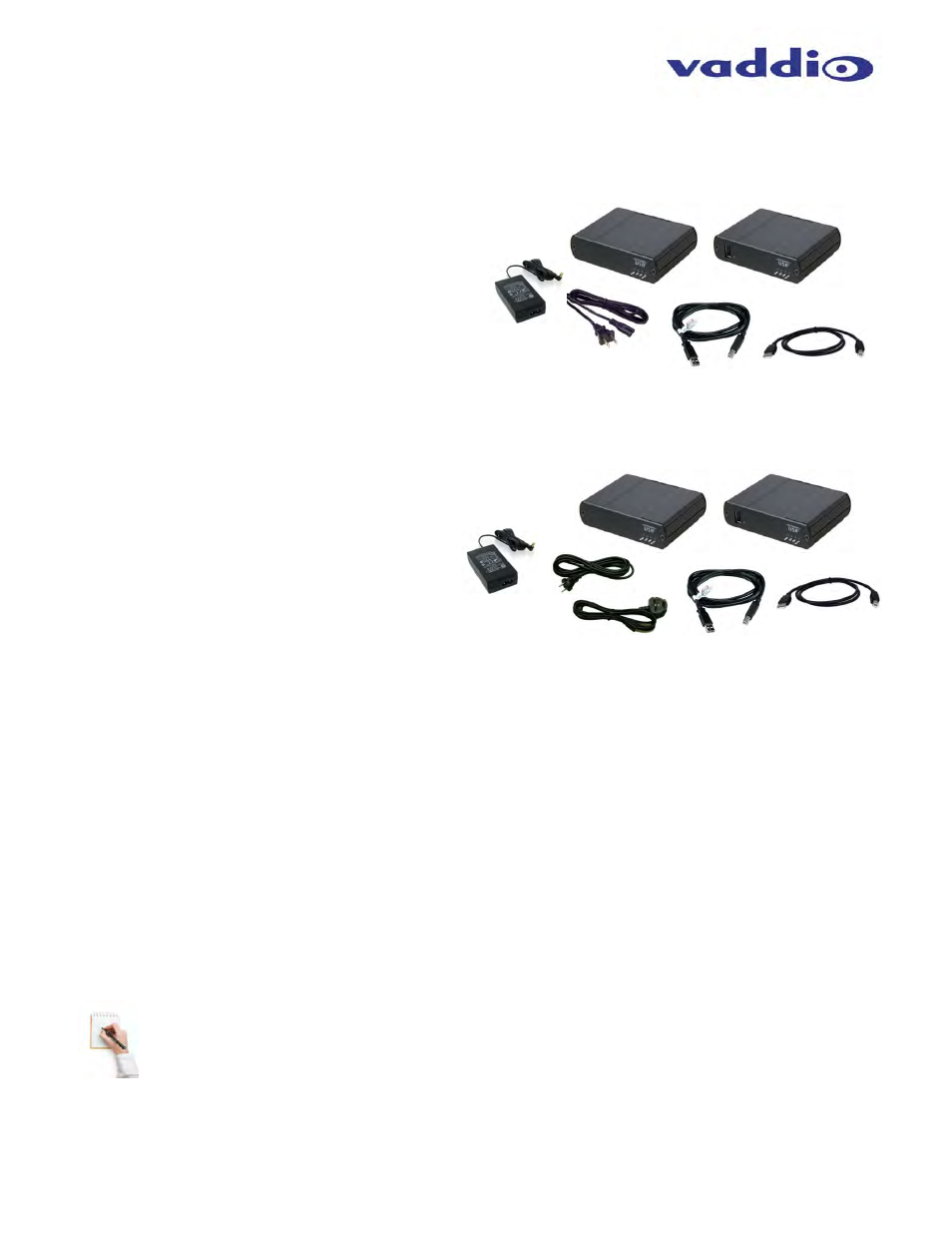

All the components within the shipping box are packaged as described in the sections below. Carefully remove all
parts included in the packaging.
Extreme USB Extenders (North America) 999-1005-022
Unpack and identify the following parts
One (1) Extreme USB Extender TX
One (1) Extreme USB Extender RX
One (1) 5 VDC Switching Power Supply
One (1) North American Power Cord
One (1) 6’ (1.83m) USB 2.0 Cable Type-A Male to Type-B Male
One (1) 1’ (305mm) USB 2.0 Cable Type-A Male to Type-B Male
Documentation
Extreme USB Extenders (International) 999-1005-122
Unpack and identify the following parts
One (1) Extreme USB Extender TX
One (1) Extreme USB Extender RX
One (1) 5 VDC Switching Power Supply
One (1) Euro Power Cord
One (1) UK Power Cord
One (1) 6’ (1.83m) USB 2.0 Cable Type-A Male to Type-B Male
One (1) 1’ (305mm) USB 2.0 Cable Type-A Male to Type-B Male
Documentation
Requirements:
To complete the installation, you will also require the following items that are not included with the product:
One (1) USB 2.0 compatible PC (host computer) with a USB compliant operating system. The PC must have
the ability to supply 5VDC, 500ma of power or an additional power supply may be required.
Cat-5e Unshielded Twisted Pair (UTP) cable or better with two RJ45 connectors.
For best results please use
standard RJ-45 connectors, mark and test all cables for proper pin-outs prior to use.
All references to Cat-5e cable in this document represent the minimum requirement of solid core Cat-5e
unshielded twisted
pair cable or better. Cat -6 and STP cables can be substituted. Regular Cat-5 cable can be
used; however the maximum length may not be achievable.
Note: Not all equipment is compatible with the Extreme USB 2.0 Extenders. For whatever reason,
some stuff just doesn’t work. The Extreme USB 2.0 Extenders do comply with the USB 1.1 and USB
2.0 specifications, but there are a number of factors that can affect the operation of USB devices over
distance.
