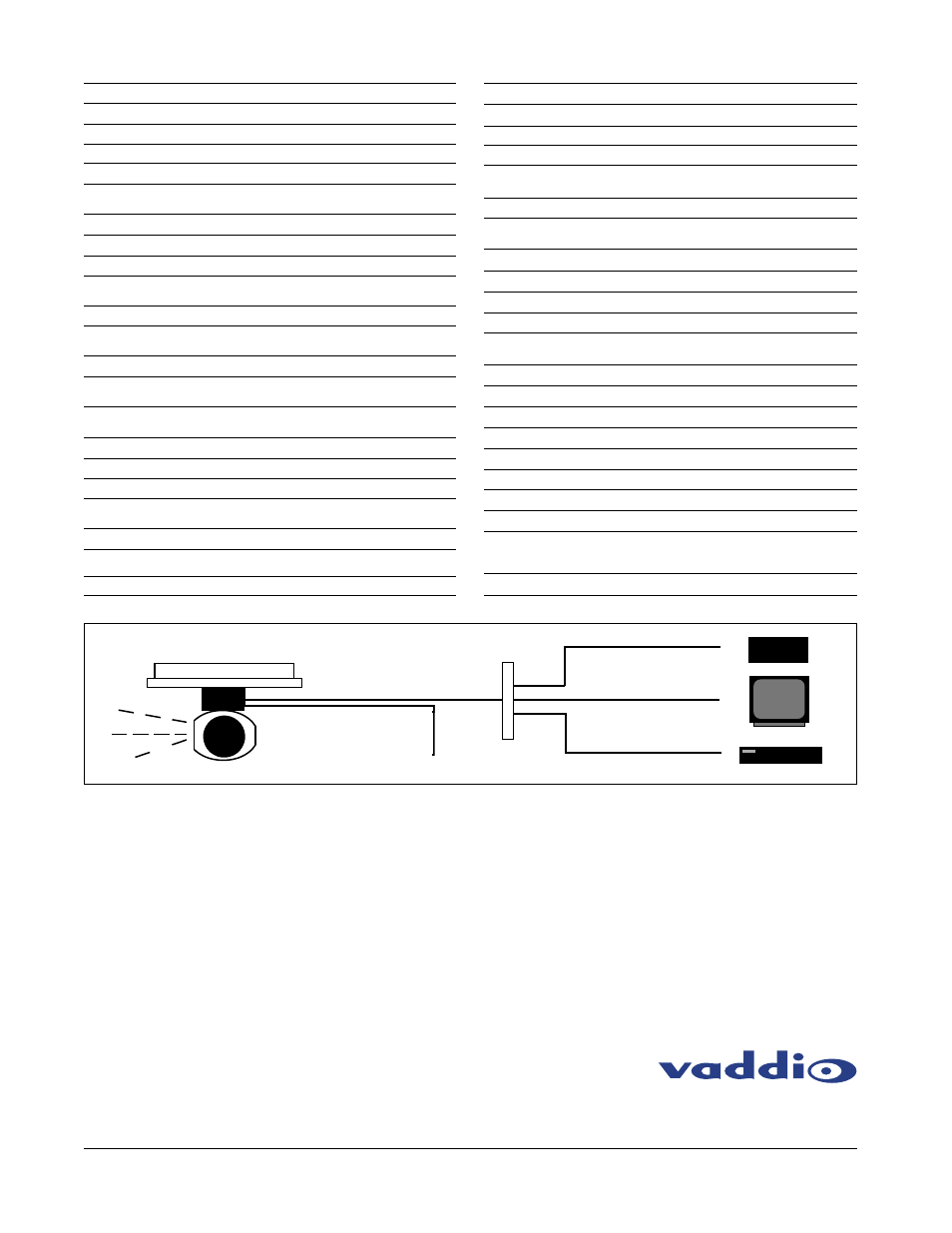

Figure 1 – EZCamera cable system with a
Quick-connect box and control.
Figure 2 – EZCamera cable system with a
Quick-connect and RS-232 control.
▲
▲▲
POWER
COMPOSITE VIDEO
S-VIDEO
Monitor
Codec
PowerRite
Power Supply
CAT. 5 CABLE
S
QUICK-CONNECT
BOX
CEILING BRACE
CAMERA
SHOE
CAT. 5 CABLE
CAT. 5 CABLE FOR RS-232 CONTROL
▲
COMPOSITE VIDEO
▲
POWER
Monitor
PowerRite
Power Supply
▲
▲
Codec
ControlVIEW
S-VIDEO
RS-232
CEILING BRACE
CAMERA
SHOE
Optics
Lens Configuration Nine(9) Groups of Eleven(11) Lens
Focal Length & F Number f=3.5 to 91mm; F1.6 to F4.0
Marginal Lumination Ratio 30% Over
Zoom Ratio 26X (at infinite)
Focus Region Wide: 0.01m to ∞ ; Telephoto: 1.6m to ∞ ;
Auto/Manual
Horizontal 42˚ Wide; 1.7˚ Telephoto
Imaging
Imaging Device 1/4” CCD
Number of Pixels NTSC – 630K Total (340K effective);
PAL – 740K Total (400K effective)
Color Separating System Secondary Mosaic Filter System
Electronic Shutter Speed NTSC – 1/80,000 - 1/60 - 1/1 sec;
PAL – 1/80,000 - 1/50 - 1/1 sec
Imaging Mode Visible Light Mode; Infrared Light Mode
Minimum Subject Illumination 1 lx (visible light mode, at 1/30 electric
shutter speed)
Infrared Lighting GaAIAs Infrared Radiation LED;
Four Piece
Infrared Light Power About 0.75 W x 4
Infrared Light Wavelength 970nm (peak value)
Video
Color System NTSC/PAL
(depending on the country of use)
Luminance Signal S/N ratio 50dB
Resolution Horizontal: 460 TV Lines;
Vertical: 350 TV Lines
Scanning System Interlace
Technical Specifications
White Balance Auto/Manual/One-push
Character Display Setting, Clock
Mechanism
Pan Angle Range VC-C50i – ± 100˚; VC-C50iR – ± 170˚
Tilt Angle Range VC-C50i – -30˚ to +90˚;
VC-C50iR – -90˚ to +10˚
Rotation Speed Pan: 1 to 90˚/s; Tilt: 1 to 70˚/s
Infared Cut Filter Motor Driven
(visible light mode/infrared light mode)
Preset Function Nine(9) Positions
Cascade Control Nine(9) Cameras
Connectors
BNC Composite Video Output
Multiconnector S-Video Output, RS-232C Control
(input, output), Other
DC Input Custom Jack (AC adapter is used)
Regulation
Wide Converter Connection Diameter: 37mm; Pitch: 0.75mm
Voltage of Operation DC 13 V (Camera only)
Power Consumption 13 W
P owerRite Power Supply 100 - 240V, 50/60Hz, 18VDC
Other
Operating Temperature 32˚ F (0˚ C)
Dimensions Depth: 4.48”/113mm
Width: 4”/101mm
Height: 3.58”/90mm
Weight 14.3oz/405g
RS-232
