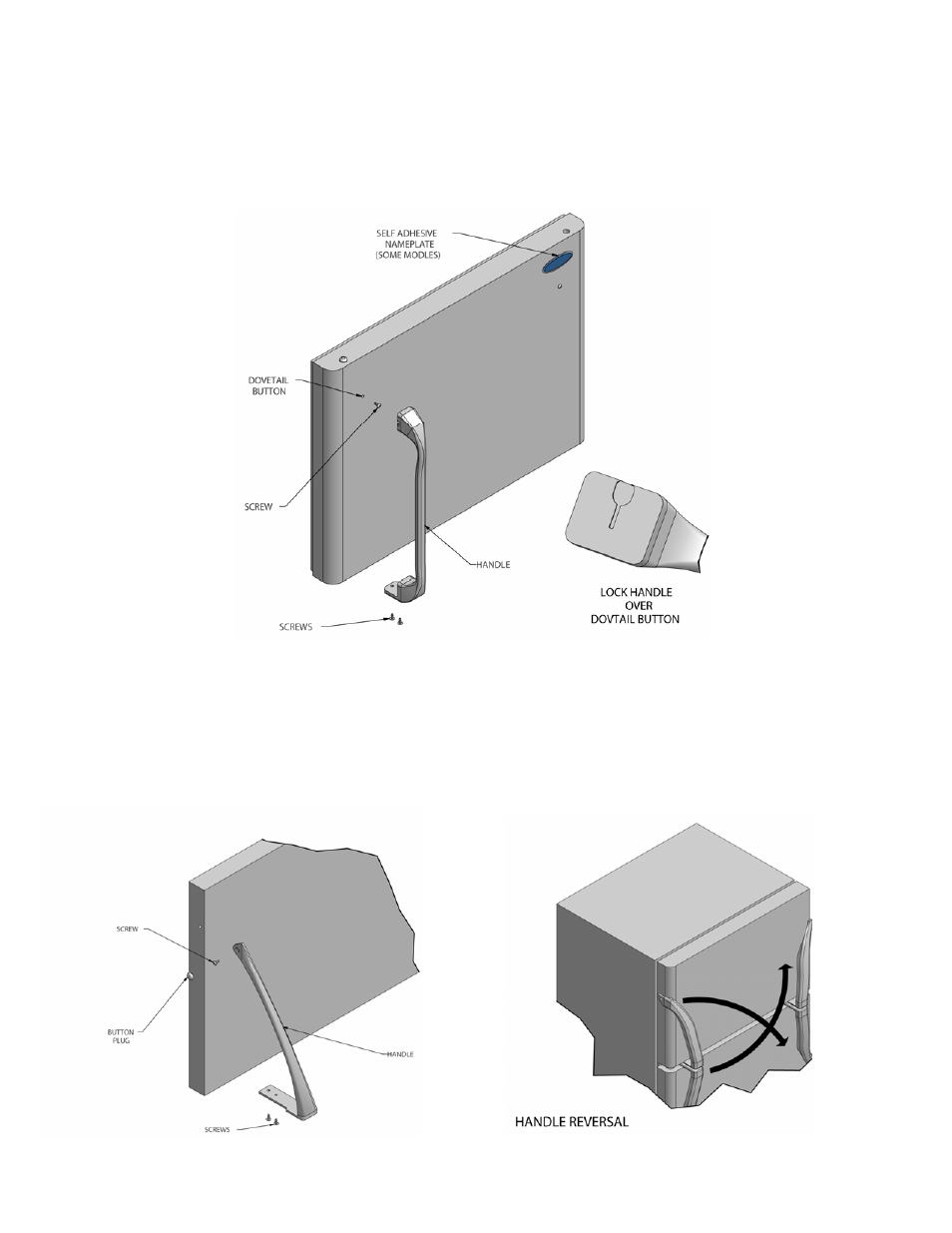

4. Self-Adhesive nameplate Models: Use a putty knife to gently peel off the nameplate from
the door and reapply it over the old handle holes.
5. Reinstall the handle with the handle offset away from the door. Place the top of the handle
over the dovetail button, swing the handle into an upright position and pull downward locking
it into place.
6. Secure the bottom of the handle with the two screws removed in step 1.
REMOVE/REVERSE FREEZER HANDLE
(Handles may be easier to reverse while doors are off.)
1. Remove the two screws attaching the handle to the bottom of the freezer door.
2. Remove the bottom plug using the edge of a putty knife.
3. Remove the screw on the side of the freezer door and remove the handle.
4. Reinstall the side of the handle to door and replace the bottom plug.
5. Secure the bottom of the handle with the two screws removed in step 1.
