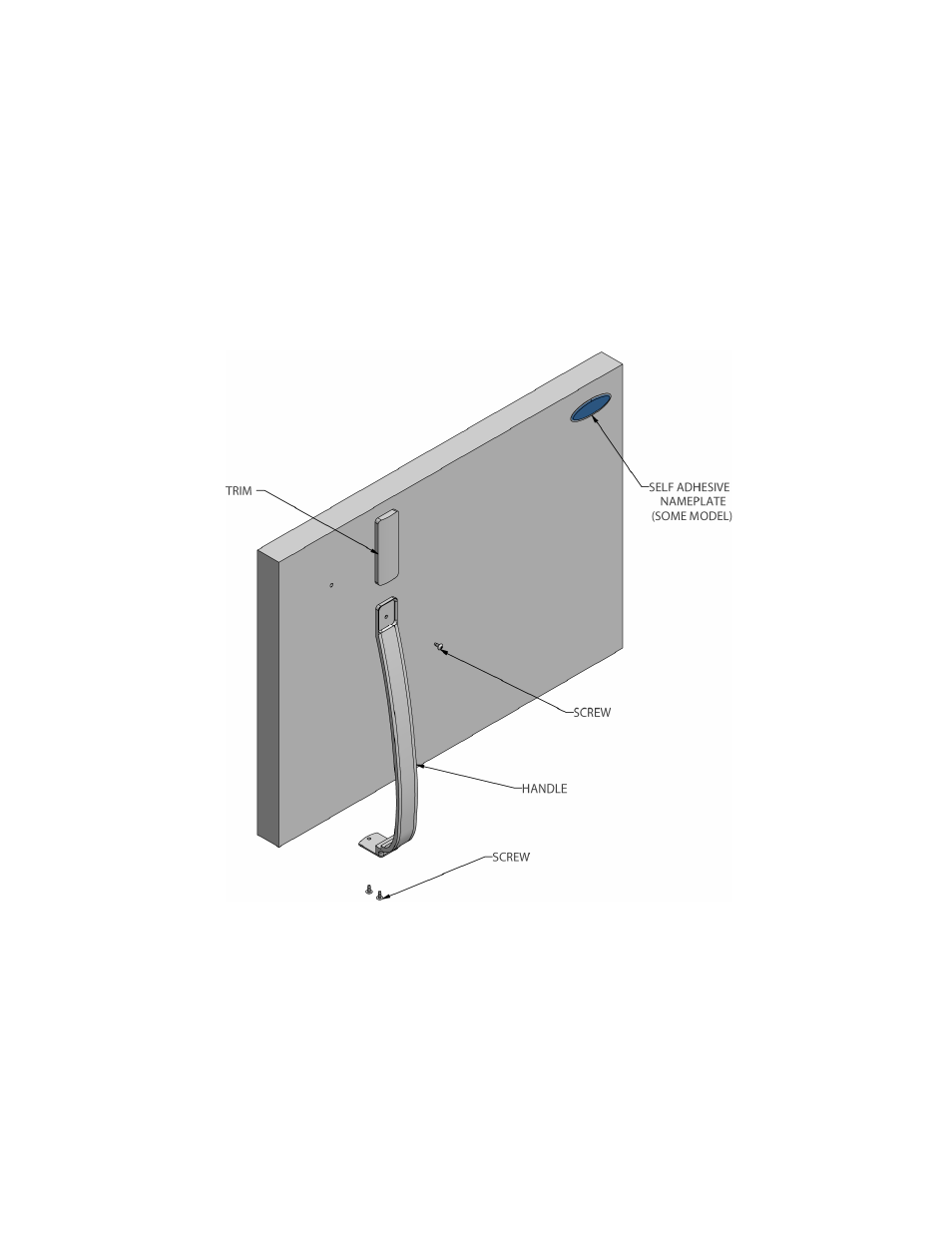

FREEZER HANDLE REMOVAL & REVERSAL
Various handle styles may be installed. All styles and removal/reversing instruction are
detailed below.
(Handles may be easier to reverse while doors are off.)
1. Remove the two screws attaching the handle to the bottom of the freezer door.
2. Remove the short trim piece by sliding the trim straight up and off the handle bracket.
3. Remove the screw attaching the top of the handle to the door.
4. Self-Adhesive Models: Use a putty knife to gently peel off the nameplate from the door and
reapply it over the old handle holes.
5. Reinstall the freezer handle on the opposite side using the same holes as the nameplate
6. Attach the handle to the bottom of the door using the screws removed in step 1.
7. Slide the trim piece straight down onto the handle bracket.
REMOVE/REVERSE FREEZER HANDLE
(Handles may be easier to reverse while doors are off.)
1. Remove the two screws attaching the handle to the bottom of the freezer door.
2. Swing the bottom of the handle away from the door and slide the handle straight up and off
the dovetail button.
3. Remove the screw and dovetail button and reinstall on the other side after the nameplate
has been reversed (see steps 4 and 5).
