Nor-Lake AdvantEDGE Chef Base - Manual (Page 7)

08/13 Rev. E 147774 7

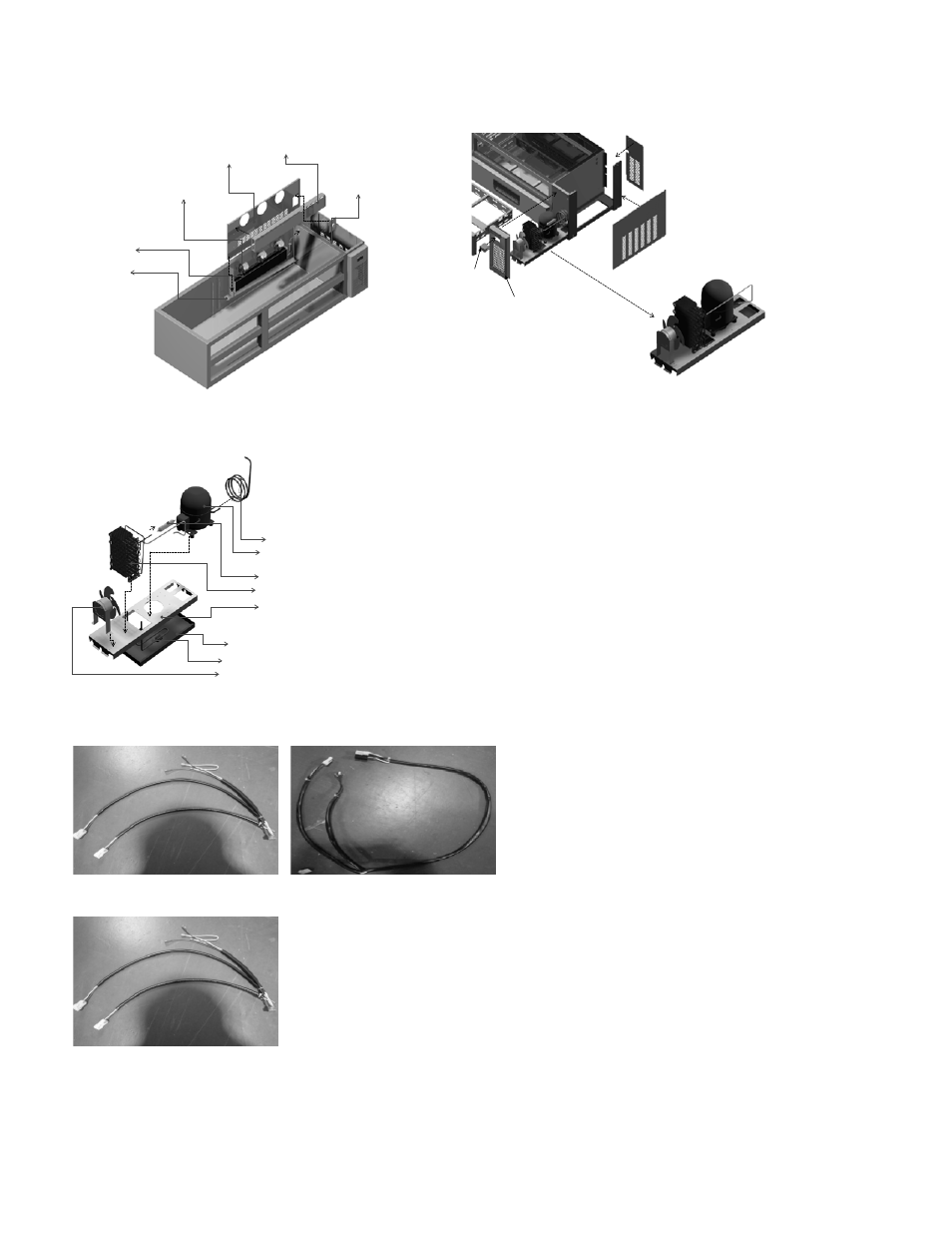

▣ Chef Base – Internal Structure
REF-Thermostat Kit
Control – ITEM 18
Knob – ITEM 19
Plate – ITEM 20
EVAP. FAN GUARD
Small – ITEM 37
Large – ITEM 38
Drain Pan(Drip)
EVAP. DUCT (3F)
2 Fan – ITEM 39
3 Fan – ITEM 40
EVAPORATOR
Small – ITEM 14
Large – ITEM 15
Evaporator Fan Motor
Motor – ITEM 30
Blade – ITEM 31
▣ Chef Base – Machine Room
Disassembly
REAR COVER
ITEM 36
SIDE MACHINE COVER
ITEM 34
FRONT COVER
ITEM 35
INDICATOR
ITEM 27
▣ Chef Base – Machine Room
Condensing Unit Disassembly -2
Unit Base
Condenser - ITEM 11
- ITEM 12
Evaporating pan (dish)
Hot Pipe – ITEM 13
Condenser fan motor – Assembly
Motor – ITEM 28
Blade - ITEM 29
Compressor – ITEM 21
- ITEM 22
CAPILLARY & SUCTION PIPE ASSY – ITEM 17
Dryer – ITEM 16
HARNESS MAIN
ITEM 23
HARNESS COMP
Compressor Type [SD162C-L1U]
ITEM 24
HARNESS COMP
Compressor type [SK1A1C-L1U2]
ITEM 25
