Page 7

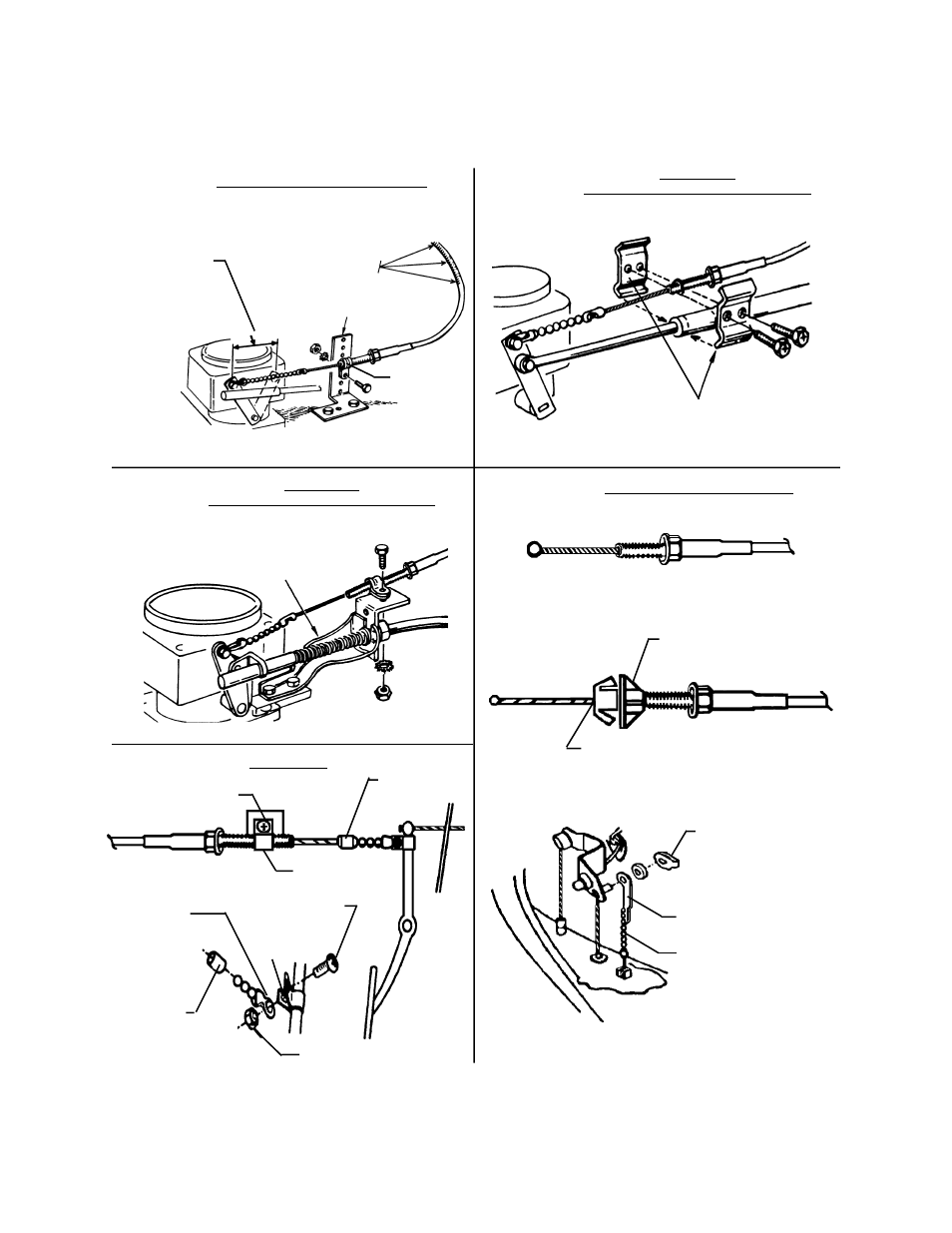

FIG. 8

FIG. 9

FIG. 10

Snap-in Cable Anchor (#19)

Module Cable MUST extend past Adaptor

Three Bead Connector
(#27)

Throttle Clip (#26)

Bead Chain (#20)

Hex Nut & Lockwasher

Bead Chain
Eyelet Connector
(#25)

Tube Clamp

Cable Anchor Point

PEDAL PULL

Carburetor

Existing

Sheet Metal

Bracket

ALTERNATE

FLEX CABLE MOUNTING TECHNIQUE

ALTERNATE

FLEX CABLE MOUNTING TECHNIQUE

FLEX CABLE CONDUIT MOUNTING

Select a location
which provides
1-3/4" travel
to match actuator.

Mounting Bracket used to
lock down carburetor end
of flexible cable (bend as
required).

4"R Min.

Bead Chain
Coupling Sleeve
(#23)

Connector
Bead Chain

FIG. 12

Tube Clamp
(#17)

Parallel Throttle Cable Clamps
(#18) used to lock cable end to
existing throttle housing

Slotted Head Shoulder Bolt

(#34)

Tube Clamp
(#17)

FIG. 11

THREADED SNAP-IN ADAPTOR

-5-
