Instruction Manual for CMOS2
5-in-1 Rear-view Camera
Dear Customer,
CONGRATULATIONS! This 5-in-1 high resolution
rear-view camera kit when used as described can
be installed in 5 different ways and will improve your
ability to see what behind you car, CRV or mini-van.
We have taken numerous measures in quality
control to ensure that your products arrive in top
condition and will perform to your satisfaction.
Before You Install
Automotive video equipment installations can be
difficult at times, even to the most experienced
installation technicians. If you are not confident
working with 12 volt DC vehicle wiring, removing and
reinstalling interior panels, carpeting or other
components of your vehicle, contact the vehicle’s
manufacturer or consider having the system
installed professionally.

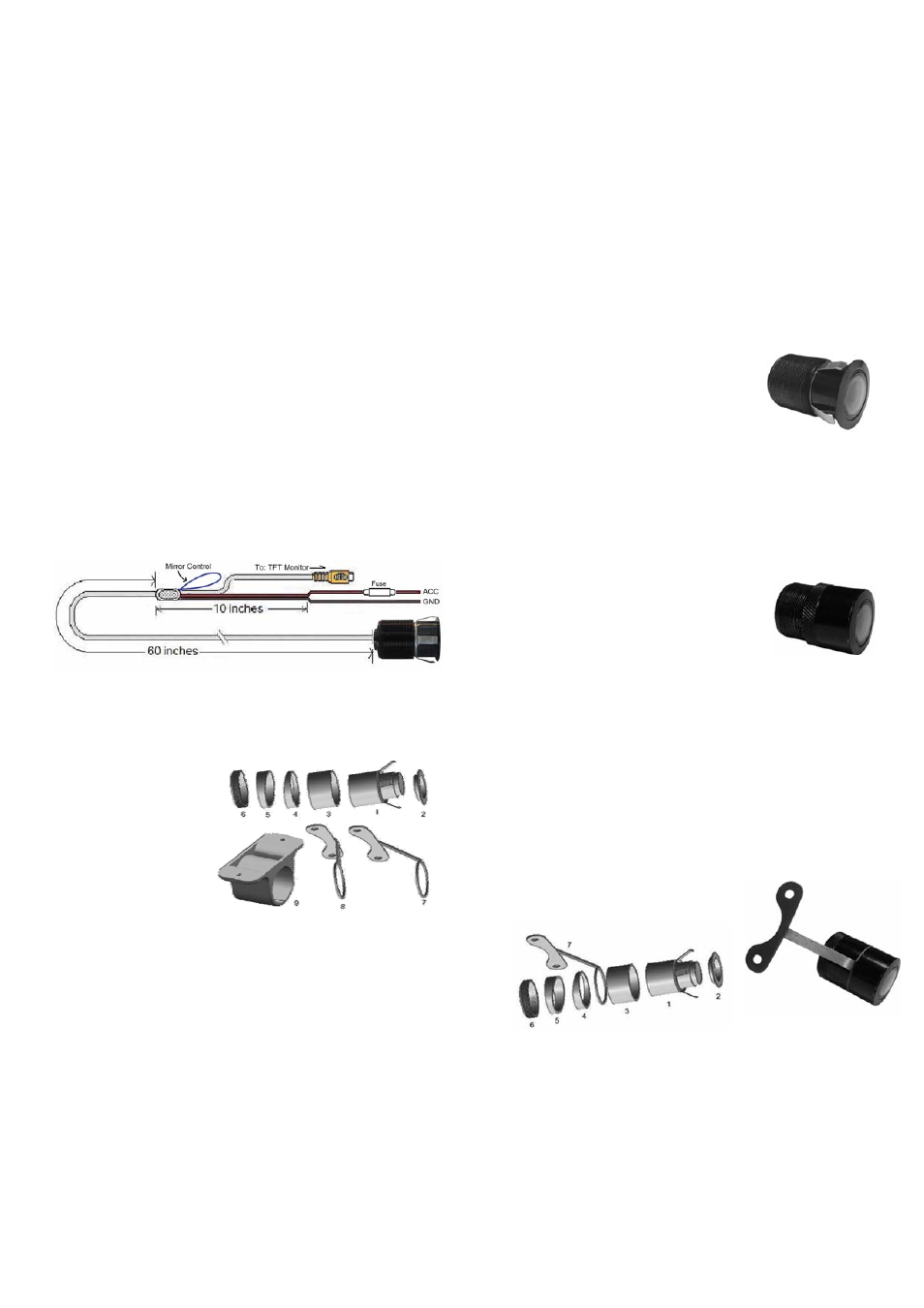

Parts
1. Camera main body with 70” power and signal
cable.
Parts name list:
1. Camera main unit.
2. Trim Ring.
3. Main ring.
4. Slim angle ring.
5. Angle ring.
6. Locking ring.
7. Long butterfly
bracket.
8. Short butterfly
bracket.
9. Surface Mount
bracket.
2. Parts package listed below:
This camera kit can be in the following installations:
a. Bumper Mounted
b. Traditional Drilled/Angled Mount
c. With Long butterfly Style bracket
d. With Short butterfly Style bracket
e. Surface Mounted style
Note: The Trim Ring (Part no #2) can be painted in
any color and then replaced to match the Vehicle
Color. DO NOT PAINT ON THE CAMERA.
Installation Instructions:
A. Bumper Mounted
Before you drill a hole on the rear bumper, you must
check what is behind where you are drilling. If there
are any vehicle components, such as electrical
parts or fuel system components behind where you
are drilling, you must take whatever precaution
necessary not to damage them. Insure you have
enough depth for the camera housing.
1. You will only need #2 attached to
The camera.
2. Use a 15/16” diameter hole saw to
drill a hole on the rear bumper.
3. Insert the camera cable into the hole and
carefully feed through the hole. Route the cable
into the trunk or Tail Light Housing area.
4. Connect the camera power cable: Red to
reverse lamp power +12V and black to ground
5. Connect the monitor and camera using a video
coax cable. Note: DO NOT USE AN AUDIO RCA
CABLE.
B. Traditional Drilled/Angled Mount
1. Parts # 3, 4, 5, &6 may be used
depending on the mounting location
selected. Use any combination to adjust to your
required mounting angle.
2. Use a 15/16” diameter hole saw to
drill a hole where you are mounting the camera.
3. Insert the camera cable into the hole and
carefully feed through the hole. Route the cable
into the trunk or Tail Light Housing area.
4. Connect the camera power cable: Red to
reverse lamp power +12V and black to ground
5. Connect the monitor and camera using a video
coax cable. Note: DO NOT USE AN AUDIO RCA
CABLE.
c. Long butterfly style bracket
1. Parts #2, #1 #3, #7, #4, #5 and #6 May be used,
The Butterfly mount can be at any position on the
camera.
2. Mount the camera using two screws; always look
before you screw into the vehicle to insure there is
nothing located behind your mounting location.
3. Route the cable into the trunk or Tail Light Housing
area.
4. Connect the camera power cable: Red to
reverse lamp power +12V and black to ground
5. Connect the monitor and camera using a video
