Figure 1, Dash board template, Figure 3 control switch connections – Audiovox CCS-100 User Manual
Page 11: Figure 2, Control switch mounting

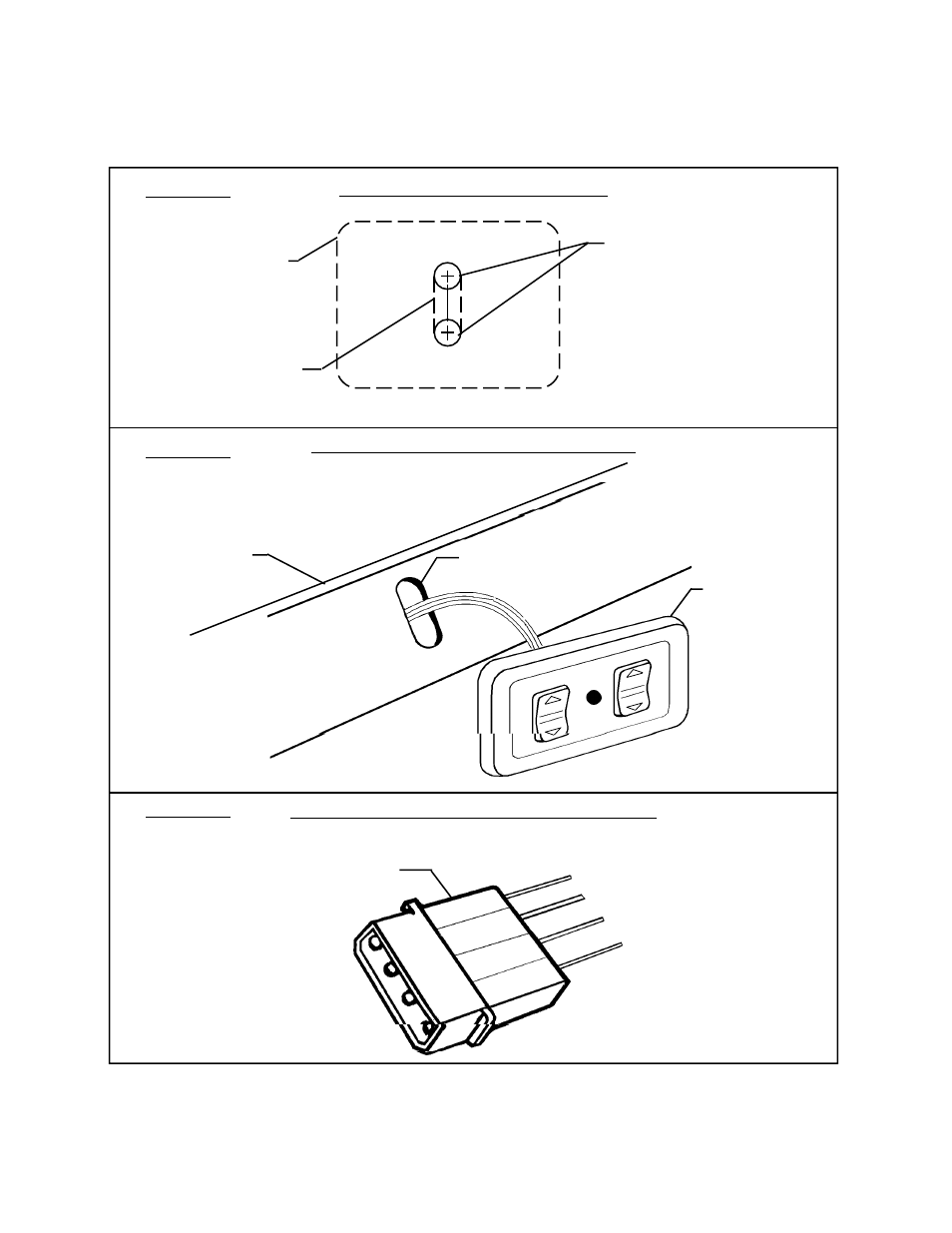

Figure 1
Drill 1/4" Dia. holes, (2 places).
Carefully cut-out along dotted
lines and place on selected area.
DASH BOARD TEMPLATE
Use a file or razor knife to remove
the material between the 2 holes.
Figure 3
CONTROL SWITCH CONNECTIONS
CRUISE
CONTR
OL
Figure 2
RED
CONNECTOR
1
2
3
4
GREEN
BR
OW
N
YELLO
W
ACCEL
ON
OFF
SET
COAST
RES
DASH
CONTROL SWITCH
TEMPLATE CUT-OUT
CONTROL SWITCH MOUNTING
-9-
