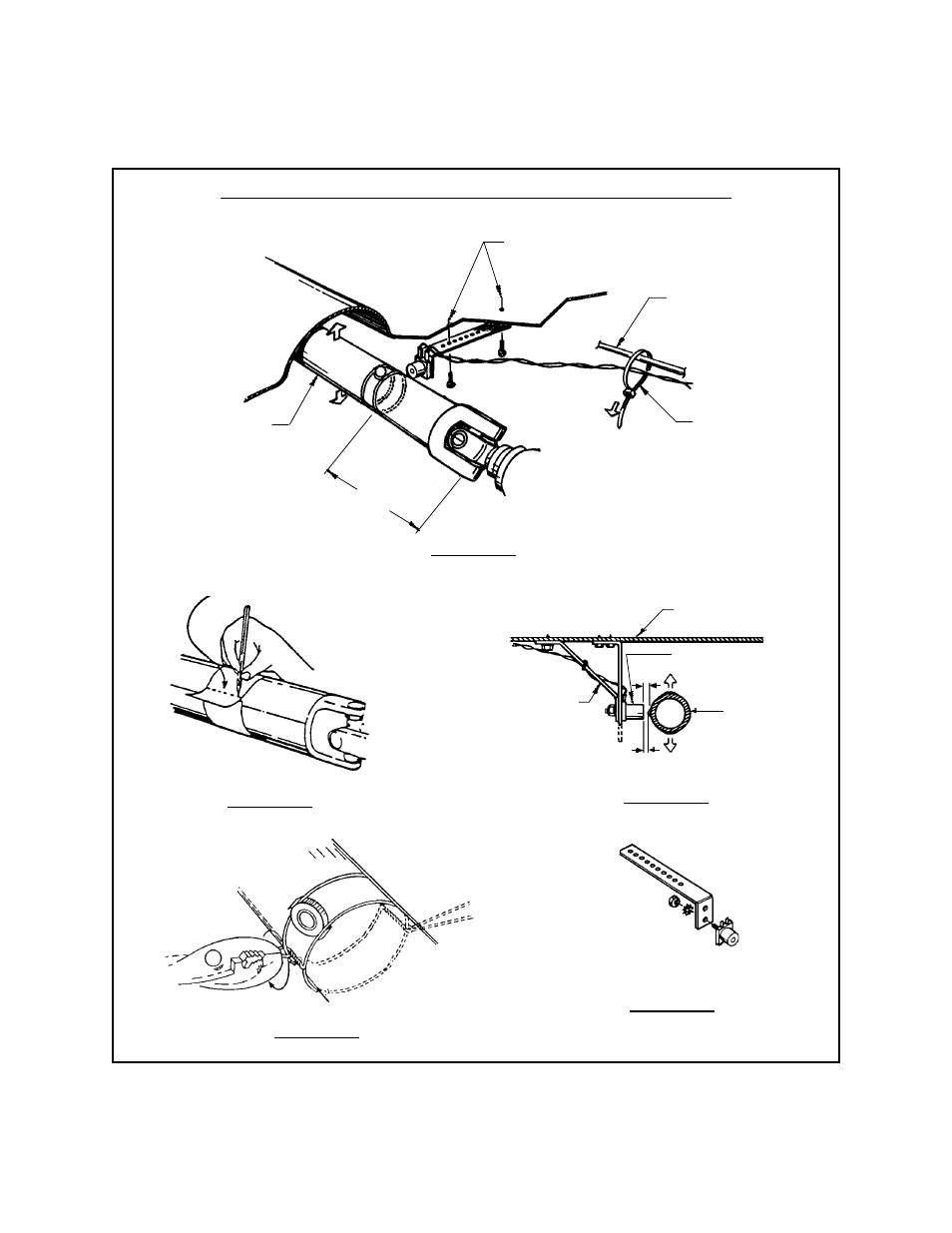

INSTALLATION - REAR WHEEL DRIVE VEHICLES

EXISTING CABLE OR
BRACKET ON VEHICLE

CABLE TIE

PULL

TIGHT

DRILL 3/16" DIA HOLES IN
FLOOR PAN OF VEHICLE

DRIVE SHAFT

12" MAX. DISTANCE
FROM U-JOINT

1/2"

POSITION SPEED SENSOR HORIZONTALLY
TO ALLOW FOR UP AND DOWN MOTION OF
DRIVESHAFT

VEHICLE FLOOR

CLEARANCE 3/8"

FABRICATED BRACE TO
STIFFEN PICK-UP COIL
BRACKET

DRIVE SHAFT

Figure 1

CUT STRIP ALONG THIS LINE

Figure 2

Figure 3

PICK-UP COIL AND BRACKET ASSEMBLY

Figure 5

Figure 4

-14-
