4. Configuring for WDS Link

Note :

1. The system provide WDS function on Router AP Mode, AP Mode and WDS Mode.

2. WDS Link requires at least 2 APO1200. The Two wire networks(LAN) need the same subnet.

3. The WDS Link needs to be set at same Channel and with same Security Type.

4. Please install and test in a lab environment before mounting the APO1200.

5. After you set the APO1200 to WDS Mode, wireless clients will not be able to connect to the APO1200.

6. The examples below are for WDS Mode.

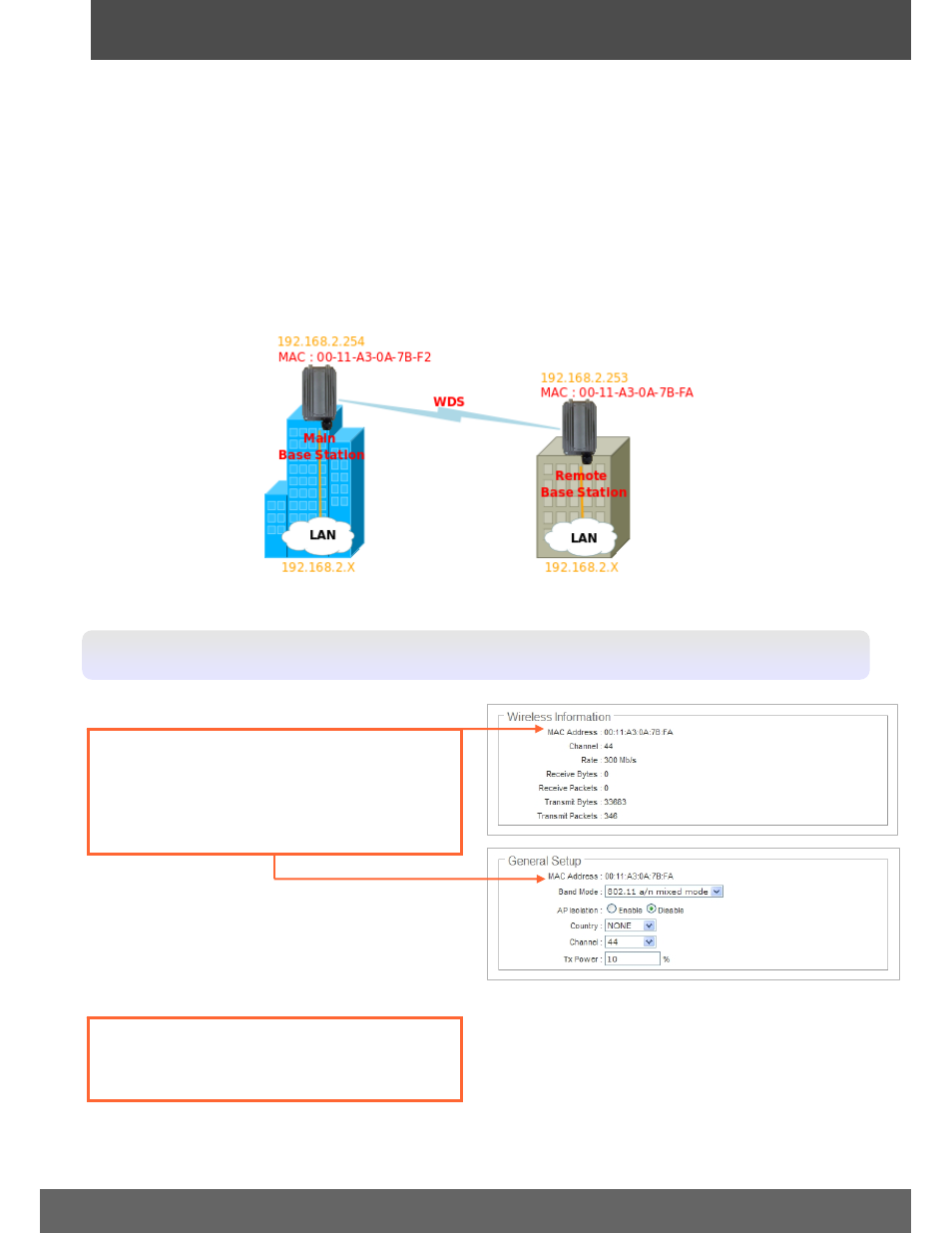

Setting Up the Main APO1200 (Main Base Station)

1. Copy down the 12 digit MAC Address of the

Remote APO1200 (Remote Base Station).
The MAC Address is on the

Overview Page (Status->Overview) and
Wireless General Setup Page (Wireless
->General Setup)

2. Follows steps 1-6 (Select “WDS” mode on
step 4) in Section 3 Configuring the Access
Point.
