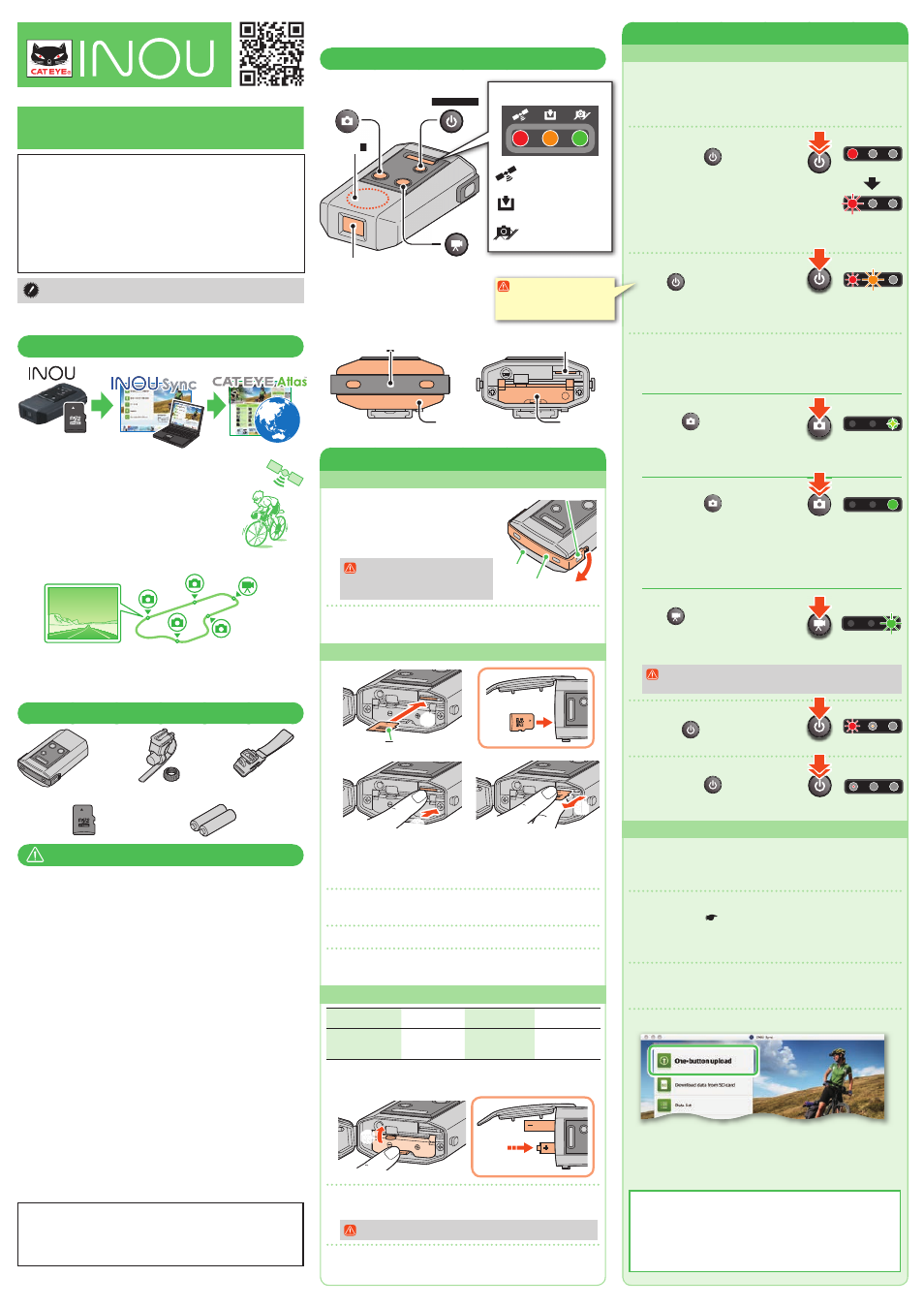

CatEye MSC-GC100 [INOU] User Manual

Usage edition, Element names, Using

Recording the trip

This unit records the whole trip after it is turned on until turned off

as a single trip. Turn off the unit during recording to save it as a

separate trip.

* If batteries are replaced during recording, the trip is divided into

two records.

Turn on the unit.

Press and hold

button until the

red lamp lights up.
Once GPS is acquired, it will change

to fl ashing.
* It may take several minutes to acquire

GPS depending on the receiving

condition.

Start recording a trip.

Press

button to start recording.

The yellow lamp fl ashes during recording.
* When an analog speed sensor is used, the yellow lamp changes to

double fl ashing to indicate that the unit is receiving a sensor signal.

Take a photo and video.

Shoot according to the following procedure.
* You can take images whenever the main unit is turned on, whether

recording a trip or not.

Taking a photo

Press the

button.

The green lamp lights up every time a

photo is taken.
* This operation is enabled even during automatic photographing.

Taking a photo automatically

Press and hold

button to start/

stop automatic photographing at a

specifi ed interval.
During automatic photographing, the green lamp lights up, and

the lamp fl ashes with a buzzer sound when photographing.

* The photographing interval is set from INOU Sync™ (default: 1

minute). For details, see [Setting] on INOU Sync™.

Taking a video

Press

button to start/stop

videographing.
During videographing, the green lamp

fl ashes and a buzzer sounds every minute.

Once you start videographing during automatic photograph-

ing, the automatic photographing pauses in the meantime.

Stop recording a trip.

Press the

button.

The yellow lamp lights off.

Turn off the unit.

Press and hold

button until the

red lamp lights off.

Uploading a trip recorded

Trips recorded with INOU are saved in your PC and uploaded to a

web server together with photo and video data, using the dedicated

application software “INOU Sync™.” On the website “CATEYE Atlas™”

you can check a route, or open a trip.

Remove a microSD card from the main unit, and insert it

into your PC ( Removing/inserting a microSD card).

* Use an SD card adapter to insert a microSD card into your PC.

* When your PC has no SD card slot, an SD card reader is

required.

Start INOU Sync™.

Double click [INOUSync] on the desktop or shortcut to start

INOU Sync™.

Click [One-button upload].

* Data is saved in your PC, and then uploaded to the website

“CATEYE Atlas™” automatically.

* It may take time to upload, depending on the data size and the

line condition.

Uploading data after organizing

With INOU Sync™, you can organize the photos and videos saved

in your PC, and then upload them to CATEYE Atlas™. In that case,

click [Download data from SD card] to load data into your PC. Then,

select the desired photos and videos from [Data List] > [Detail],

and click [Upload].

Element names

microSD card slot

Battery case

cover

Lock strap

Back

Cover

Using

Red lighting

Red fl ashing

(GPS acquired)

Yellow fl ashing

Green lighting

momentarily

Press

& hold

Press

& hold

Press

Inserting a microSD card and batteries

Removing/installing the cover

Pinch the right end of the lock

strap with your fi ngers to remove it

from the hook on the main unit.

The cover is removed together with

the lock strap.

When the unit is wet, remove

moisture sufficiently before

opening the cover.

Be sure to fi t the cover fi rmly to the unit and install the lock strap,

after removing/inserting a microSD card or replacing batteries.

Removing/inserting a microSD card
Insert

Remove

* When the yellow lamp fl ashes slowly, the remaining microSD card

capacity is approx 200MB.

* When the microSD card capacity is full, all lamps will be turned on.

After that, no more recording is possible.

Insert a microSD card with its label surface faced up, fi rmly

to the end until it clicks.

To remove the microSD card, press it in until it clicks.

Pinch the popped-up section with your fi ngers to pull

out the card.

Replacing the battery

No photographing

Automatic photo-

graphing (1 minute) Videographing time

Battery life

(Reference value at a

temperature of 20 °C)

About 6.5 hours

About 6 hours

About 2.5 hours

* When the red lamp fl ashes slowly, the available battery capacity is

small. (With alkaline cells, it is characteristic for the indication to be

shown a little earlier).

Open the battery case cover while pressing the lever, and

install the batteries in the correct direction.

Be sure to install the batteries in the correct direction.

Replace the battery case cover, fi t the cover fi rmly to the unit, and
install the lock strap.

microSD card

Press in

Press downward

Pull out

microSD card

Cover
Lock strap

Hook

AAA battery x 2

Green fl ashing

Yellow turned off

Press

Red turned off

Press

& hold

Usage edition

Power /

Measurement button

Camera button

Video button

Camera

Antenna

Recording a trip is nec-

essary to upload data

to CATEYE Atlas™.

Lamp

Red lamp:

Power / GPS acquired

Yellow lamp:

Measurement / Memory

Green lamp:

Photo / Video

Before using the computer, please thoroughly read this

manual and keep it for future reference.

It is necessary to read the

Preparation guide edition

, “Mounting the main

unit” and “Preparing your PC” before use.

What you can do with this unit

• Recording the trip route

Positional information from GPS is recorded while

recording the trip. The recorded positional infor-

mation (route) can be saved as your own trail by

superimposing it on a Google map on the website

“CATEYE Atlas™”.

• Taking a photo and video containing positional

information

You can look at a photo and/or video while checking

the shooting spot on the route on “CATEYE Atlas™”.

• Uploading and arranging trip data

You can download the trip data from a microSD card to your PC, and

upload it to the website “CATEYE Atlas™.” You can also arrange the

data, or handle the downloaded photo and video as a fi le.

Package contents

CAUTION

• The manufacturer shall in no event be liable for the loss of recording and recorded

data due to malfunction or defect of this product, its accessories or recordable media.

• Pay careful attention to the surrounding situation when you operate the main unit.

• When you use this unit with your bicycle, mount it fi rmly to the bicycle with

the bracket, and check before use that it is not loose.

• Avoid leaving the main unit in direct sunlight for a long period of time.

• Do not disassemble the main unit.

• Do not drop the main unit. It may result in damage.

• Do not expose the camera lens to direct sunlight for a long period of time.

• Dispose of used batteries according to local regulations.

• Do not use this unit in rain, although it is waterproof.

• Remove and store the batteries when you do not use the unit for a long time.

• When using, observe general moral rules.
Camera shooting

• Keep in mind that photographing and releasing a person’s appearance may

infringe on their portrait rights, etc.

• Do not use this unit to record any books on the market or any literature information that

is not permitted to be photograhped, or in any way against public order and morals.

microSD card

• Do not touch the terminal when you handle a microSD card.

• To insert into the main unit, check the correct insertion direction, and

press it in until it clicks.

GPS

GPS (Global Positioning System) is a system to identify the current position

on the earth by receiving highly precise positional information sent from a

satellite. GPS may not correctly record the current position in the following

locations and environments because of insuffi cient data acquisition.

• In a tunnel, underground, between high-rise buildings, under an overpass, etc.

• In bad weather (snow, rain, etc.)

• Near a high-voltage line or a mobile telephone relay station.

• When the antenna on the main unit does not face the sky.

The current speed and the distance may slightly differ from the actual value,

since they are measured only by GPS.

When you use this unit with your bicycle, combining with a CATEYE analog

speed sensor (supplied with CC-RD300W, etc.) improves the trip distance

accuracy, since the measurement values are corrected by sensor signals.

* In this case, it is necessary to set the tire circumference with CATEYE Atlas™.

* This manual has been prepared on the assumption that the user has suffi cient

basic knowledge, including operation and terminology of PCs (Windows/Mac).

microSD card

Dedicated application

This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS

standard(s). Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.
L’appareil est conforme à la réglementation FCC, section 15 et Industrie Canada RSS standard

exempts de licence (s). Son utilisation est soumise à deux conditions :

1. L’appareil ne doit pas provoquer d’interférences nuisibles, et

2. L’appareil doit supporter les interférences reçues, y compris les interférences empêchant

son fonctionnement correct.

Modifi cations The FCC requires the user to be notifi ed that any changes or modifi cations

made to this device that are not expressly approved by CatEye Co., Ltd. May void the user’s

authority to operate the equipment.

H-34N bracket for bicycle

Main unit

AAA alkaline

battery x 2

microSD card/

SD card adapter

Helmet mount bracket

Social Network Compatible GPS Camera

https://www.cateyeatlas.com

MSC-GC100

Pat. and Design Pat. Pending

For more information, visit

our website or mobile site.

ENG

Internet

Website
