ENG

CC-RD400DW

Standard parts

Option parts

MODE

MENU

MODE

Wheel selection �� Toggle between the specified wheel size (tire circumference)

and

�

Use this function if the computer is to be shared between two bicycles�

Pressing MODE toggles between

and

�

Wheel size entry �� Pressing MODE increases the value, and pressing and holding MODE moves

to the next digit�

To enter the wheel size

, display

using “Wheel selection”�

Sensor ID setting �� Pressing MODE changes to ID1 or ID2, and pressing and holding MODE moves to

Standby� To set the ID, refer to “Preparing the computer-4�”

ID2

is used when the computer is shared with the second sensor� The computer

identifies ID1 and ID2 automatically�

Clock setting �� To set the clock, refer to “Preparing the computer-5”�
Total distance manual entry
�� Before reinitializing the computer, note the total distance�

This reading will later allow you to enter the total distance manually�

Speed unit �� Pressing MODE toggles between km/h and mph�

Maintenance

To clean the computer or accessories, use diluted neutral detergent on a soft cloth, and wipe it off

with a dry cloth�

Replacing the battery

Computer

Replace the battery when the digit of the selected Mode

flashes� Install a new lithium battery (CR2032) with the (+) side

facing upward� Then reinitialize the computer referring to “Preparing

the computer”�

When the battery is installed, place the seal with the “TOP” side up-

ward�

Sensor

Replace the battery when the Speed digit flashes� After replacement,

check the positions of the sensor and magnet�

After the battery is replaced, ID setting is required again� For details, refer to

“Sensor ID setting” on the menu screen�

TOP

COI

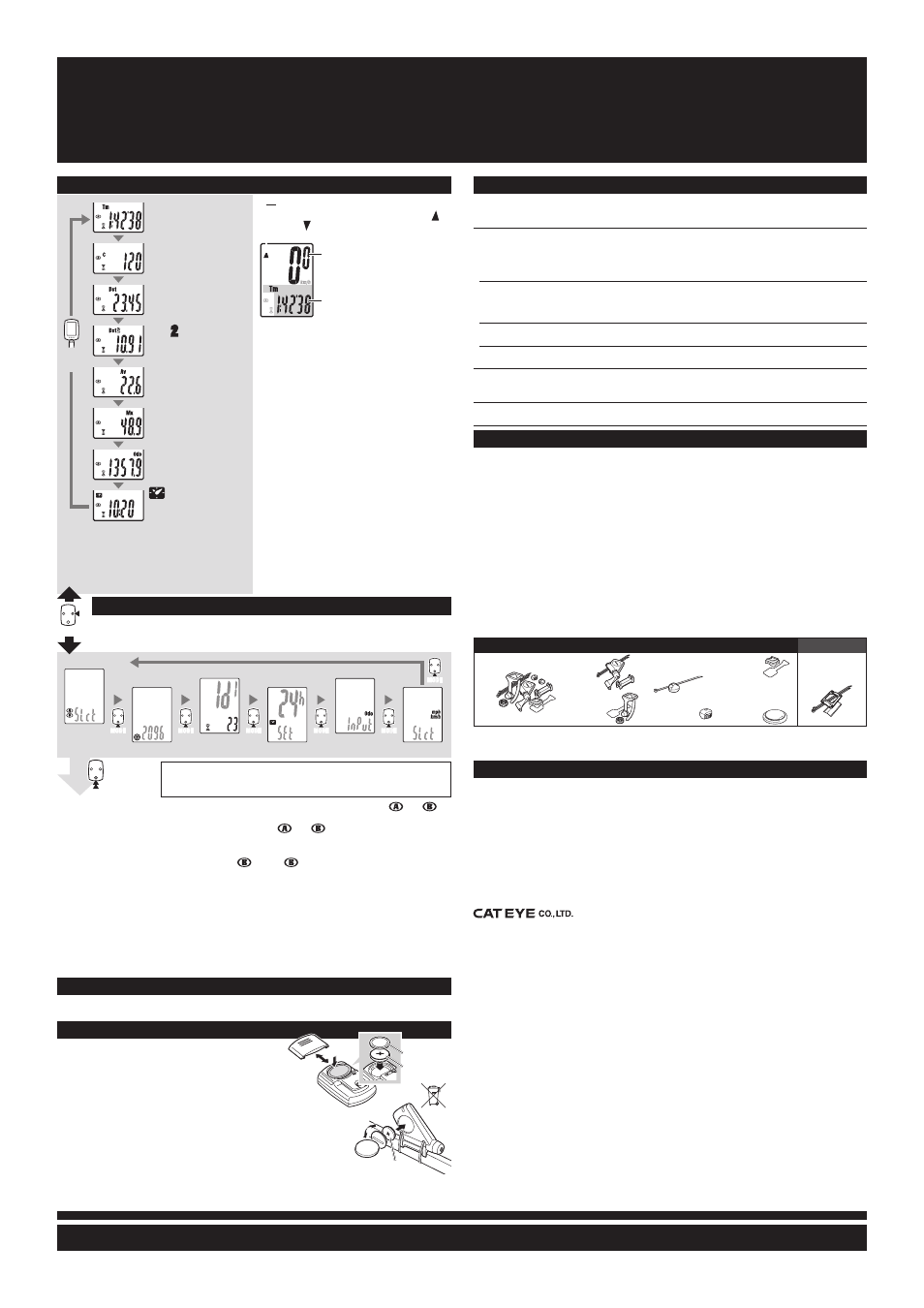

Starting/Stopping measurement

Measurements start automatically when the bicycle

is in use� During measurement, km/h or mph

flashes�
Switching computer function

Pressing MODE switches function, in order, as

shown on the left�
Resetting data

To reset measurement data, display any data other

than for Dst-2 and then press and hold MODE�

Pressing and holding MODE with Dst-2 displayed

resets Dst-2 only� The total distance is never reset�
Power-saving function

If the computer has not received a signal for 10 min-

utes, power-saving mode will activate and only the

clock will be displayed� When the computer receives a

sensor signal again, the measuring screen reappears�

If 60 minutes’ inactivity elapses, power-saving mode

will change to SLEEP mode� Pressing the MODE in

SLEEP mode brings up the measuring screen�

Changing the computer settings [menu screen]

If the MENU is pressed with the measuring screen displayed, the menu screen appears�

Press the MODE when measurement has stopped and no signal is being received to

change menu settings�

Operating the computer [Measuring screen]

Wheel selection

Wheel size entry

Sensor ID setting

Clock setting

Total distance manual entry

Speed unit

CR2032

Seal

Push!

CR2032

Pace arrow

Indicates whether the current speed is faster ( ) or

slower ( ) than the average speed.

Current speed

0.0(4.0) - 105.9 km /h

[0.0(3.0) - 65.9 mph]

Selected Mode

With the computer installed on the bracket,

press on the three raised dots on the face of

the computer�
If

*2 Tm exceeds approximately 27 hours or Dst

exceeds 999�99 km, .E (Error) is displayed as

the average speed� Reset data�

Elapsed Time

0:00’00” - 9:59’59”

Dst

Trip Distance

0�00 - 999�99 km [mile]

Cadence

0(20) - 299 rpm

Dst

Trip Distance-2

0�00 - 999�99 /

1000�0 - 9999�9 km [mile]

Average Speed

0�0 - 105�9 km/h

[0�0 - 65�9 mph]

Maximum Speed

0�0(4�0) - 105�9 km/h

[0�0(3�0) - 65�9 mph]

Odo

Total Distance

0�0 - 9999�9 /

10000 - 99999 km [mile]

Clock

0:00 - 23:59

or 1:00 - 12:59

MODE

Setting change

(by pressing &

holding)

After changing, be sure to press

MENU to register the setting�

If the menu screen is not touched for a minute, the Measuring screen reap-

pears without data changes�

Troubleshooting

MODE does not work when the computer is mounted on its bracket.

Check that there is no dirt between the bracket and the computer.

Wash off the bracket with water to get rid of any dirt, and to ensure that the computer slides in and out smoothly�

The Sensor signal reception icon does not flash (the speed or cadence is not displayed). Move the

computer near the sensor, and turn the rear wheel or crank. If the Sensor signal reception icon flashes,

this trouble may be due to battery drain, not any malfunction.

Set the sensor ID.

Set the ID according to “Sensor ID setting” on the menu screen�
Check that the clearance between each sensor and magnet is not too large. (Clearance: less than 5 mm for Speed, and 3 mm for

Cadence)

Check that the magnet goes through the relevant sensor zone.

Adjust the positions of the magnet and sensor�
Check that the distance between the computer and sensor is correct (Distance: within 20 to 100 cm)

Install the sensor within the specified range�
Is the computer or sensor battery weak? In winter, battery performance diminishes.

Replace with new batteries� After replacement, follow the procedure “Replacing the battery�”

No display.

Is battery in the computer run down?

Replace it� Then reinitialize the computer referring to “Preparing the computer”�

Incorrect data appear.

Reinitialize the computer referring to “Preparing the computer”�

Specification

Battery ...........................Computer : Lithium battery (CR2032) x 1

Sensor

: Lithium battery (CR2032) x 1

Battery life .....................Computer : Approx. 1 years (If the computer is used for 1 hour/day; the battery life will vary depending on the conditions

of use.)

Sensor

: Approx. 6 months (If the computer is used for 1 hour/day; the battery life will vary depending on the condi-

tions of use.)

This is the average figure of being used under 20 °C temperature and the distance between the computer

and the sensor is 100 cm�

Controller ......................8-bite, 1-chip microcomputer (Crystal controlled oscillator)

Display ..........................Liquid crystal display

Sensor...........................No contact magnetic sensor

Transmission distance ...Between 20 and 100 cm

Wheel circumference range

......................................0100 mm - 3999 mm (Default figure A: 2096 mm, B: 2096 mm)

Working temperature .....32 °F - 104 °F (0 °C - 40 °C) (This product will not display appropriately when exceeding the Working Temperature

range. Slow response or black LCD at lower or higher temperature may happen respectively.)

Dimensions/weight .......Computer : 1-53/64” x 1-7/32” x 5/8” (46.5 x 31 x 16 mm) / 0.78 oz (22 g)

Sensor

: 1-63/64” x 2-55/64” x 45/64” (50.5 x 72.5 x 17.7 mm) (Excluding the arm) / 1.06 oz (30 g)

The factory-loaded battery life might be shorter than the above-mentioned specification�

The specifications and design are subject to change without notice�

#160-2790

Parts kit

#160-2780

Sensor

#160-0280N

Bracket band

#160-2770

Bracket holder

#166-5150

Lithium battery

(CR2032)

#169-9691N

Wheel magnet

#169-9766

Cadence magnet

#160-2193

Bracket
