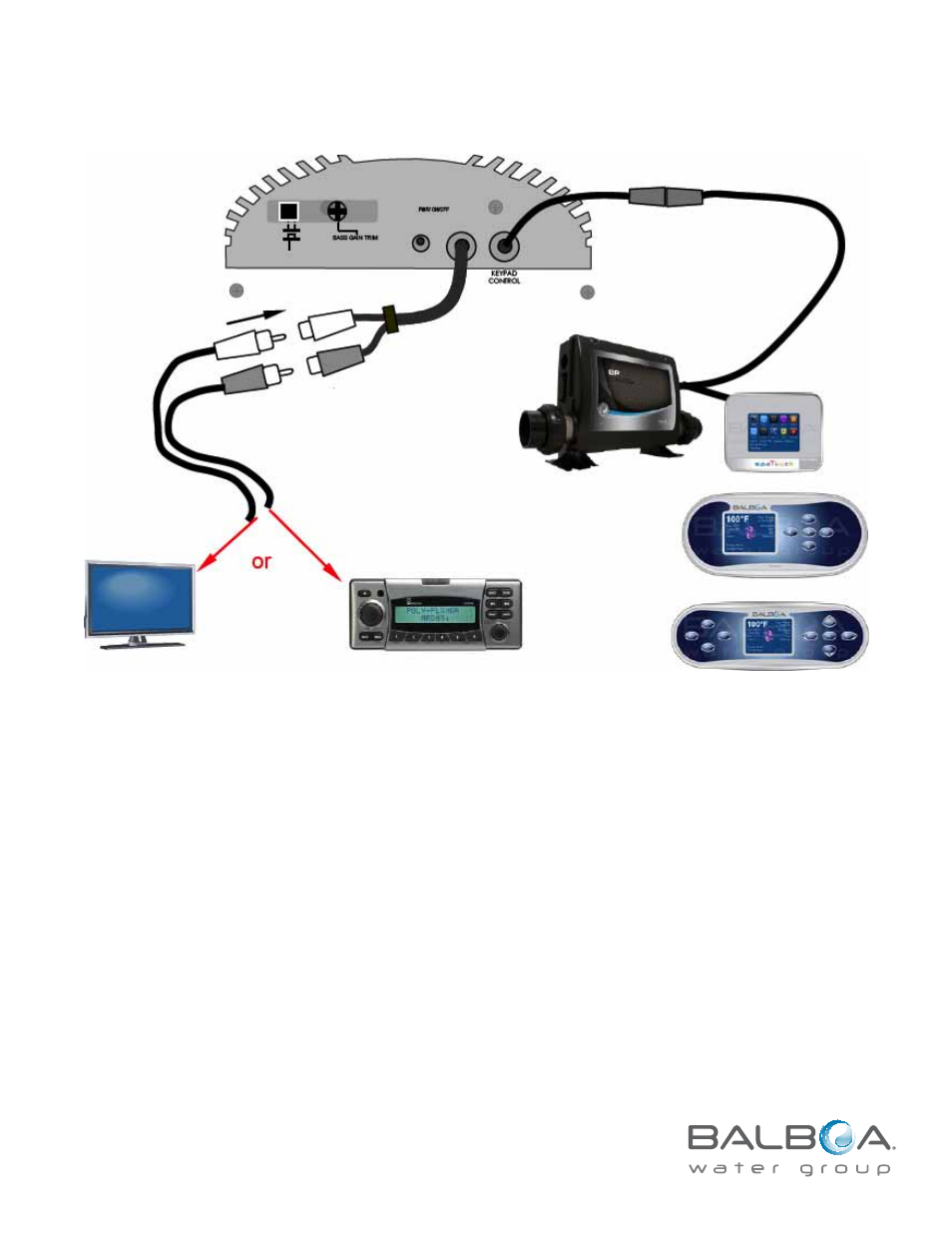

INPUT CONNECTIONS: 59019 – BBA™ - BALBOA BLUETOOTH AUDIO AMP
Integrated
Adaptor cable
BP Series Control
spaTouch™
TP800 panel
TP900 panel
25717 (Adapter Cable)
Optional extension cables for flexibility
in bba placement:
CABLE EXTENSION TP PANELS – 100 FT
25662-3
CABLE EXTENSION TP PANELS – 25 FT
25662-1
CABLE EXTENSION TP PANELS – 50 FT
25662-2
CABLE EXTENSION TP PANELS – 7 FT
25662
Line input
White = Left
Red = Right
Optional Line Input
TV, MP3, Sat Radio or other audio sources
Integrated operation with control via panel.
NOTE:
Power must be supplied to the bba™ at
time of spa power up, so that the bba is
recognized by the BP spa control which
enables the integrated menu.
