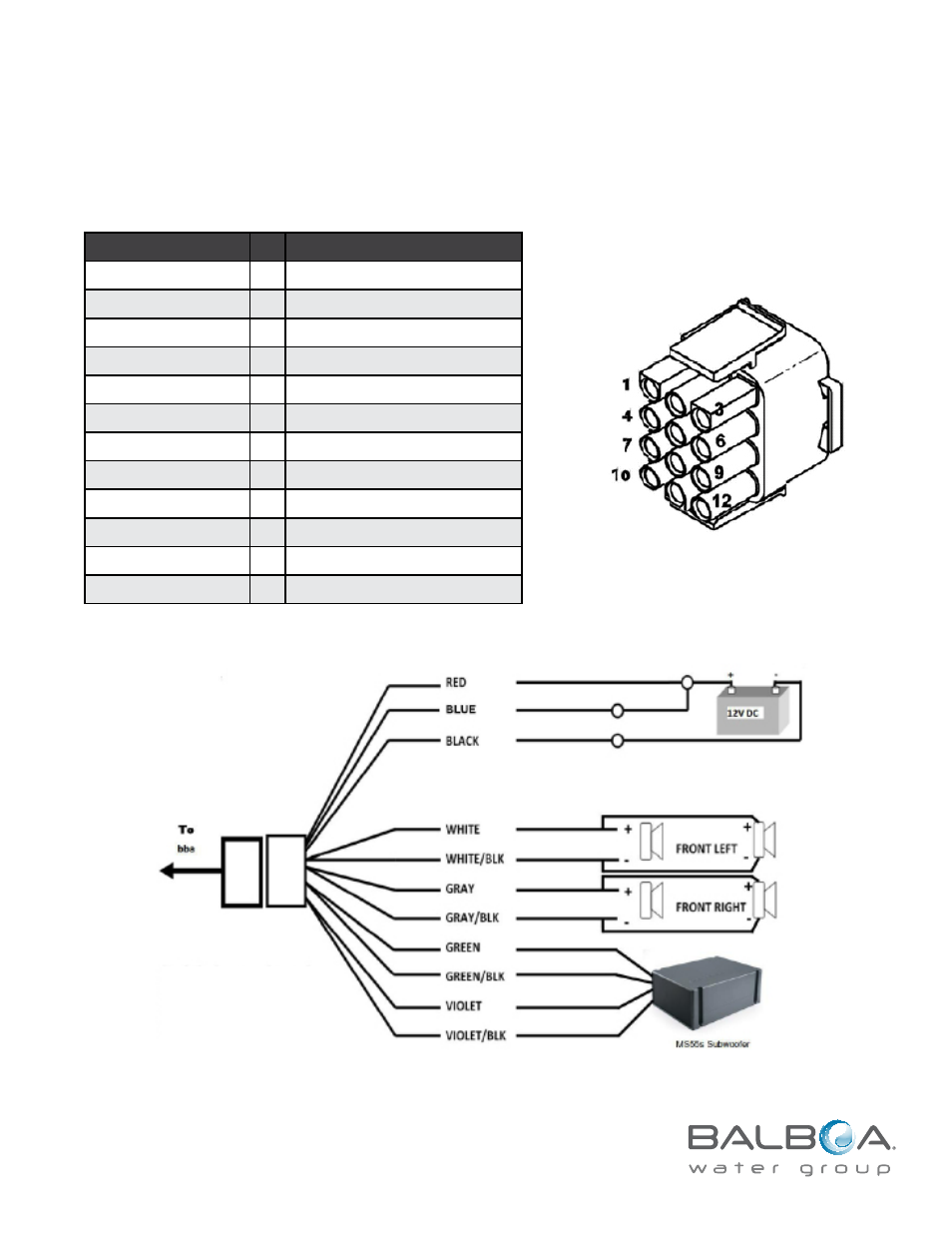

WIRING DETAILS:
Use the wired plug end (Pigtail) provided to make power and speaker connections according
to the diagram below. Using this connector will make it easy to disconnect the amplifier for
adding additional features or service. Removing the factory plug end will void warranty.
Wire Color Function
Red 1 B+ (+12VDC)
Green w/stripe 2 Rear Left Speaker -
Green 3 Rear Left Speaker +
BLANK 4 BLANK
White w/stripe 5 Front Left Speaker -
White 6 Front Left Speaker +
Blue 7 B+ (+12VDC)
Gray w/stripe 8 Front Right Speaker -
Gray 9 Front Right Speaker+
Black 10 Ground (Neg)
Violet w/stripe 11 Rear Right Speaker-
Violet 12 Rear Right Speaker+
Wiring Diagram
Appuyez sur le bouton de Passe Bas
quand vous connectez les chaines
arrière au caisson de graves. Utilisez
un potentiomètre pour ajuster le
caisson de graves à nouveau.
