Page 3: Roughing-in dimensions, General description

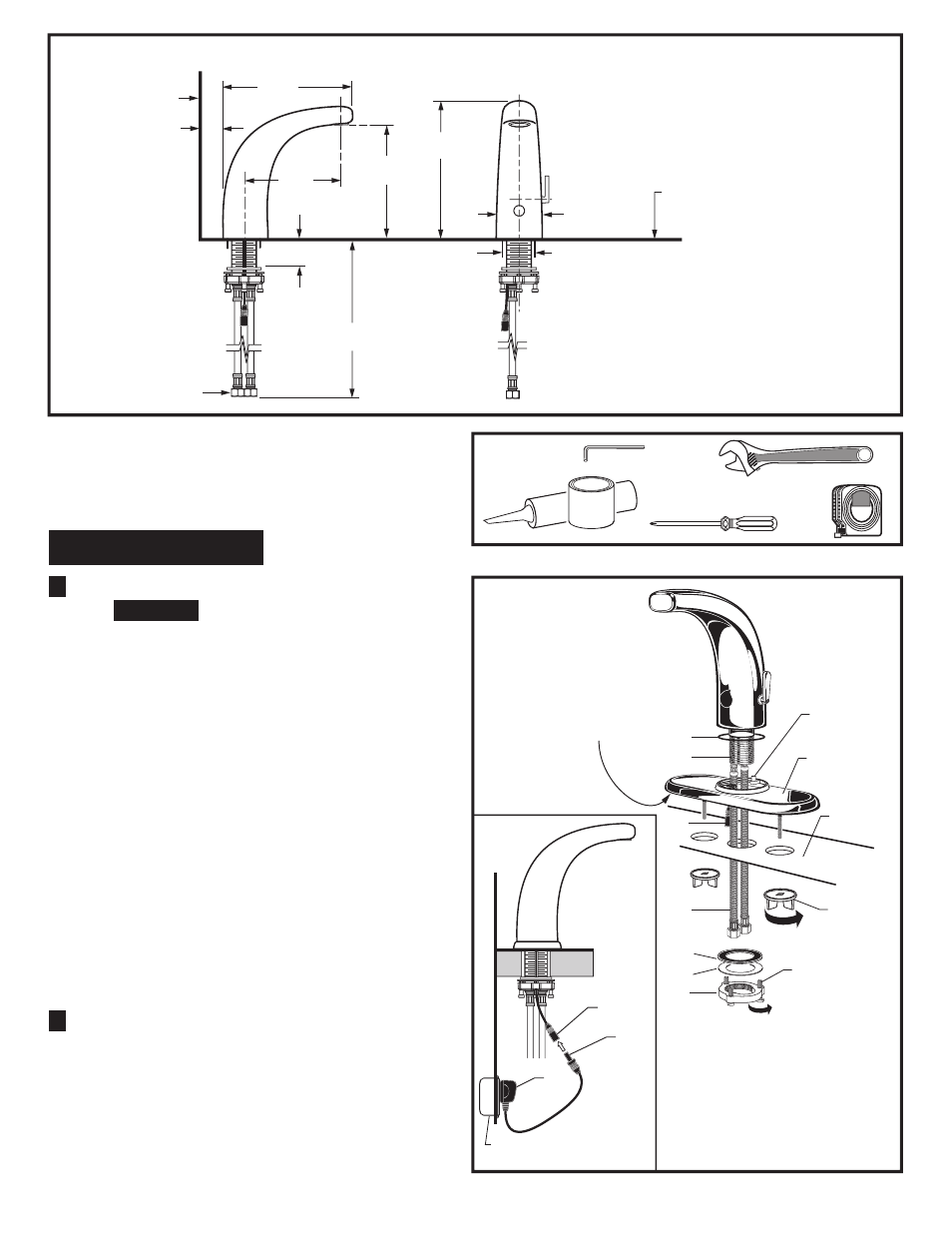

background image

TOOLS REQUIRED; Fig. 2

Fig. 2

1 Hex Wrench (Included)

2 Adjustable Wrench

3 Plumbers' Putty or Caulking

4 Phillips Screwdriver

5 Tape Measure

1

2

3

4

5

INSTALL SPOUT ASSEMBLY;

Fig. 1

INSTALLATION

CAUTION

Turn off hot and cold water

supplies before beginning

2

10'

1

CONNECT POWER SUPPLY; Fig. 1a

(7056 series only)

2

Fig. 1

457mm

(18)

3/8" COMPRESSION

CONNECTORS

MIN. 1" CLEARANCE

165mm

(6-1/2)

32mm (1-1/4)

66mm

( 2-5/8)

38mm

(1-1/2 )

140mm

(5-1/2)

191mm

(7-1/2)

191mm

(7-1/2)

MOUNTING

SURFACE

FINISHED WALL

OR BACKSPLASH

Roughing-in Dimensions

GENERAL DESCRIPTION:

Electronic faucet with proximity operation. Vandal

resistant solid brass construction single post mounting.

Operates on DC (battery) or AC power. Inlets 3/8"

compression, built-in checks, flexible stainless steel 18"

reach inlet hoses for spout connection and In-line

integral strainer for solenoid.

Fig. 1

Fig. 1a

1

9
3

2

4

5
6

2

3

1

8

7

M965255 REV. 1.6

PUTTY

(If required)

ELECTRICAL OUTLET

(120V 50/60 Hz)

I

MPORTANT: Do not

use putty when installing

faucet without escutcheon.

10

MOUNTING

SURFACE

(OPTIONAL)

TIGHTEN

SPIN NUTS

1. Make sure O-RING SEAL (9) is installed.

2. Installation with ESCUTCHEON (1) (optional). Apply a

bead of putty to bottom edge of ESCUTCHEON with PUTTY

PLATE

(1). (Only if mounting surface is uneven).

3. Insert supply HOSES (2), SHANK (3) and POWER CORD

(10) (if equipped) through hole in ESCUTCHEON with PUTTY

PLATE

(1) and mounting surface. Follow mounting

instructions below to secure faucet to mounting surface.

(Make sure PIN (7) is in back).

4. Installation less ESCUTCHEON (1). IMPORTANT: Do not

use putty when installing faucet without escutcheon.

5. Assemble RUBBER WASHER (4), BRASS WASHER

(5) and THREADED LOCKNUT (6) onto SHANK (3) from

underside of sink or mounting surface. Hand tighten

LOCKNUT

(6).

6. Use a screwdriver to tighten SCREWS (8) on

LOCKNUT

(6). Work your way around LOCKNUT (6),

tightening the screws slightly each time until all are snug

to ensure even pressure.

1. Connect the sensor cable (1) to the POWER SUPPLY

CABLE

(2).

2. Code approved Electrical Outlet provided by others.

(120V 50/60 Hz)

3. Plug AC POWER SUPPLY (3) into Outlet.
