Exhibit 5.0-3 navigating atto expressnav screens – ATTO Technology Diamond Storage Array VT-Class User Manual
Page 35
24
ExpressNAV

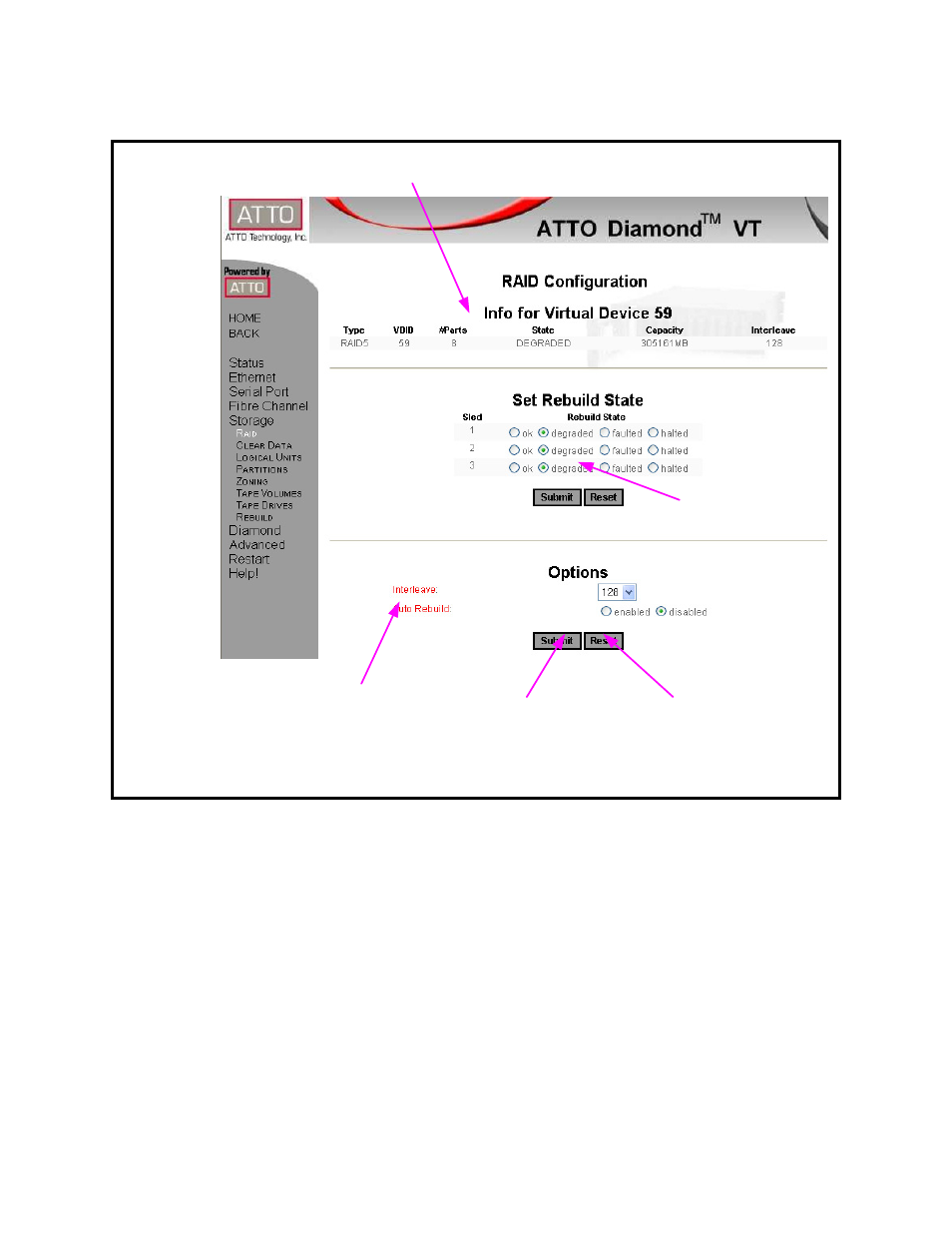

Exhibit 5.0-3 Navigating ATTO ExpressNAV screens
Sidebar:
select the
item you
wish to
view
Submit button
same as typing all
CLI commands and
saveconfiguration
norestart
options
Parameter name
Red print provides
link to help text
Information required to perform changes
Reset button
return to previous
setting without
making any changes
