Nilfisk-ALTO 114RS SWEEPER - Manual (Page 65)

American-Lincoln Technology 3-11
114 RS Operator’s Manual
OPTION 0880-584
KEY NO. PART NUMBER DESCRIPTION QTY
1 2-00-04825 Solenoid 2
2 0775-159 Diode Assembly 2
3 2-00-04719 Terminal, #10 Spring Spade 7
4 7-18-00191 Decal 1
5 7-82-00034 Emergency Stop Switch 1
6 2-00-01128 Butt Splice, 14-16 ga. 2
7 2-00-04716 Terminal, #10 Spring Spade 1
8 2-00-04859 Terminal, .250 Ring 1
9 2-00-04284 Terminal, .310 Ring 4
10 2-00-04282 Terminal, .310 Ring 1
11 3-61-00095 Wire, 12 ga. Red 3'
12 3-61-00193 Wire, 16 ga. Red 20'
13 3-61-00189 Wire, 16 ga. Black 2'
14 2-00-04345 Tye Raps 10
15 2-00-00594 Nut, Hex 1/4-20 x .437 x .218 4
16 2-00-03702 Washer, .625 x .281 x .063 4
17 2-00-00518 Lock Washer, Helical Spring 4
18 2-00-00078 Screw, 1/4-20 x .625 RHM 4
C-0484/9403

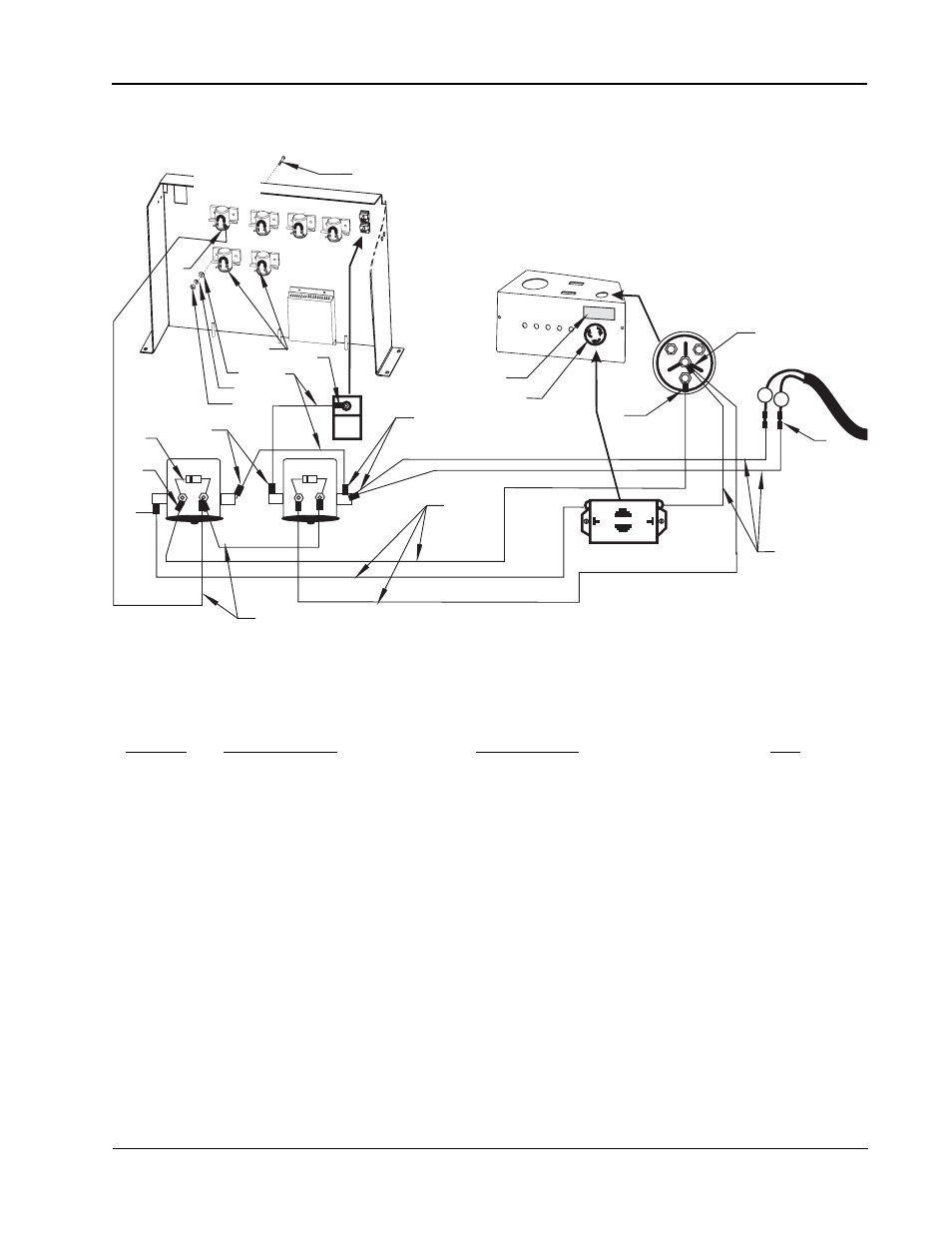

EMERGENCY STOP OPTION
EXISTING KEY SW.
( BACK VIEW)
RT. INST. PANEL
WIRE 9B
WIRE 39
WIRE 1D
WIRE 25
WIRE 40
WIRE 35
WIRE 37
WIRE 36
POWER PANEL
ROUTE ALL WIRING & TIE TO
EXISTING HARNESS USING
TYE RAPS ITEM 14
REMOVE WIRES 9B & 25
FROM KEY SWITCH, CUT
OFF TERMINALS STRIP
AND ADD ITEM #6
SOL.
21A
1
16
17
15
9
(+)
TB-1
12
9
10
11
18
3
8
4
3
13
2
5
6
7
12
3
2
SOL.
20A
EMERG. STOP SW.
(BACK VIEW
DECAL
IGN..
ST.
EXISTING
HARNESS
+
-
9B
25
EXISTING
SOL. 3A
C0484
