SERVICE CHART FOR 114 RS
Check items for proper operation. If service is required, please consult your Clarke/American-Lincoln Authorized
Distributor:
EVERY 8 HOURS or DAILY
1.
All flaps for wear or damage.
2. Wheel Lock for proper operation.
3. Main Brooms for wear or damage.
4. Side Brooms for wear or damage.
5. Check Batteries and charge if necessary. (See Page 22 for Battery charging instructions)
6. Empty Hopper and ensure latch is properly secured.
7. All Hardware, Panels and Covers for tightness and security
50 HOUR MAINTENANCE CHECKLIST
8.
Check battery electrolyte level.
9. Lubricate front wheel bearing and pivot.
10. Rotate Main Broom end for end to prevent uneven wear.
100 HOUR MAINTENANCE CHECKLIST
11. Clean Hopper.
12. Remove and Clean / Inspect Dust Control Filter. Replace if necessary
13. Lubricate Wheel lock pins.
SERVICE CHART
HORN
FILTE R SHA KER
DUST C ONTRO L
BATTERY
CONDITIO N
CHEC K WH ILE O PERA TING
OFF
OFF
OFF
ON
ON
ON SIDE BR OOMS
ON
DOWN
UP SIDE BROO MS
VOLTAG E LOW
BROOM S ARE O FF
RECHAR GE BAT TERIES
CB1 CB5 CB4 CB7 CB8 CB1 CB 5 CB4 C B7 CB8
WHEE L LOC K
UNLO CK
LOCK
WARNING UNEXPEC TED MOV EMENT C OULD RE SULT IN PERSONA L INJURY OR PROP ERTY DA MAGE. TURN KE Y TO "OF F" AND E NGAGE W HEEL LO CK BEFORE LEAVING OPERATO R'S SEAT
1
7
6,11
3,10
4
9
7
2
8
5
7
12
13
C0474

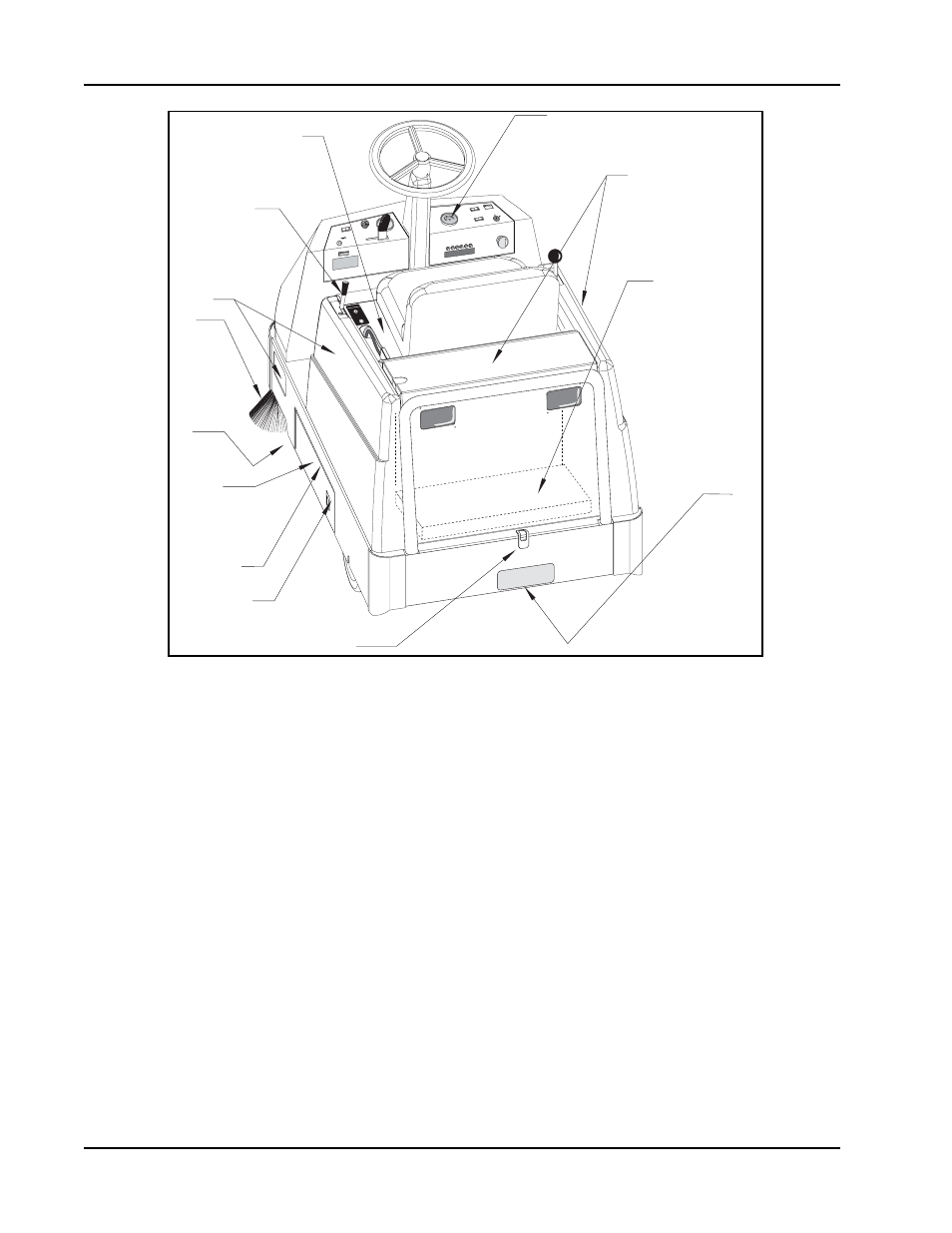

C0474 FIGURE 10
