Nilfisk-ALTO 114RS SWEEPER - Manual (Page 60)

3-6 American-Lincoln Technology
114 RS Operator’s Manual
OPTION 0880-581
KEY NO. PART NUMBER DESCRIPTION QTY
1 8-82-00027 Light Switch 1
2* 7-40-05031 Head Light 2
3 7-40-05032 Tail Light 2
4 7-08-00557 Bracket 4
5 7-29-00174 Bracket 4
6 7-08-00790 Bracket 4
7 2-00-04282 Terminal, Ring 1
8 2-00-04281 Terminal, #10 1
9 2-00-04479 Connector, 3-Way 6
10 3-61-00193 Wire, 16 ga. Red 15'
11 3-61-00189 Wire, 16ga. Black 15'
12 2-00-04626 Terminal, .156 Female Bullet 6
13 2-00-04578 Terminal, .156 Male Bullet 6
14 2-00-04345 Tye Raps 10
15 2-00-00203 Screw, 1/4-20 x 1.500 HHC 8
*Replacement bulb: 2-00-05338
C0482

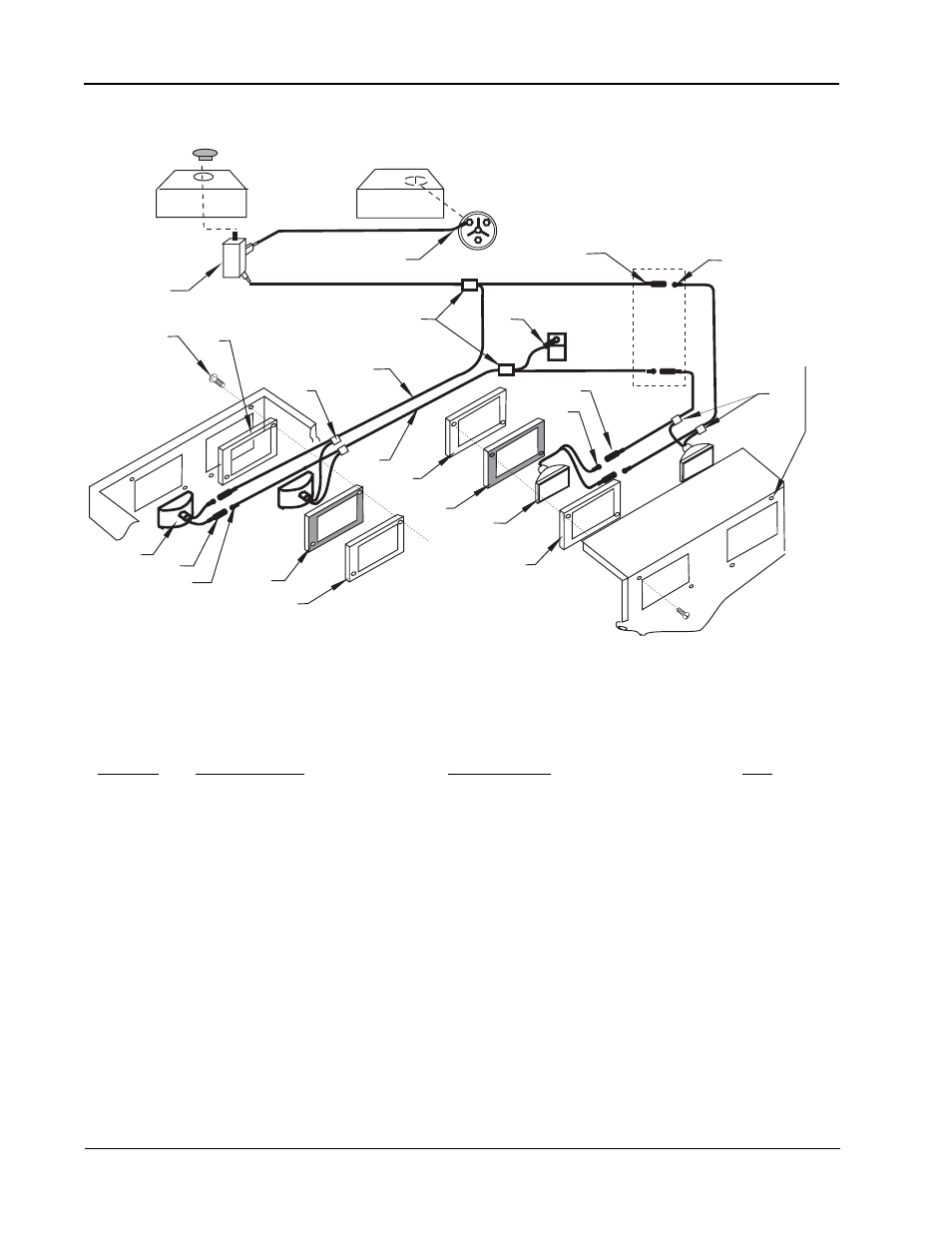

HEAD & TAILLIGHT OPTION
EXISTING KEY SW.
( BACK VIEW)
NOTE:
ROUTE WIRE & TIE TO
EXISTING HARNESS
USING TYE RAPS ITEM #14
DISCONNECT IN
THIS AREA TO
REMOVE POWER
PANEL COVER
FRONT BUMPER
EXISTING
TB-2 (-)
POWER PANEL COVER
DRILL CP
MARKS TO
.281 (8) PLACES
LT
. HEAD
LIGHT
LT
.TAIL
LIGHT
RT
.TAIL
LIGHT
RT
. HEAD
LIGHT
RT. INST. PANEL
1
2
3
4
15
4
5
5
6
8
9
9
10
11
12
12
12
13
13
13
9
7
6
LT. INST. PANEL
IGN..
BAT.. ST.
C0482
