HW-G Instruction Manual Page 64
HW-G OZIM v1a

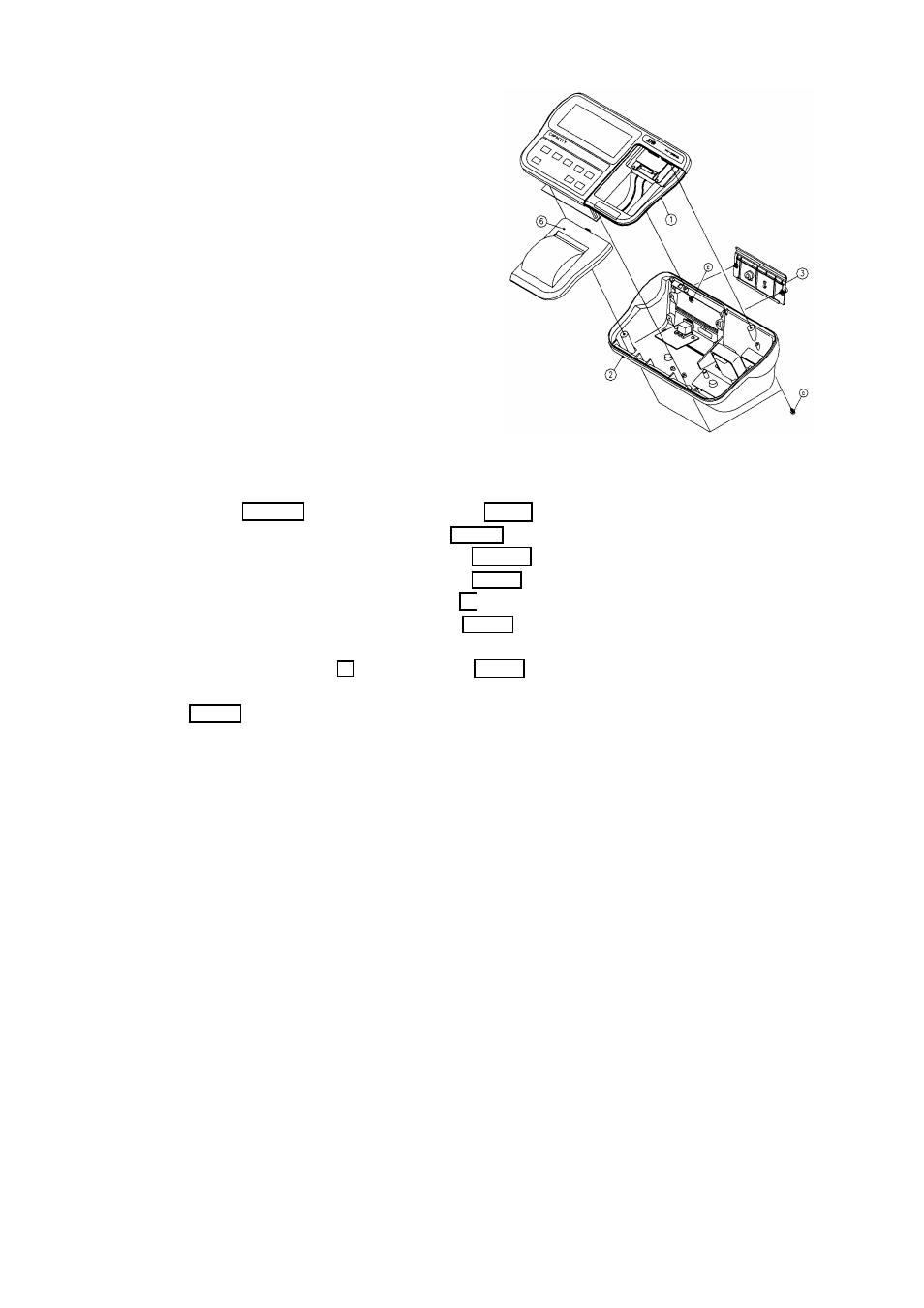

(a) Connect the cable between J2 and
J3 on the upper case (Item 1).
(b) Free the 2 pin cable on the lower
case (Item 2) and connect it to
CN1.
(c) Screw the upper case (Item 1) to
the lower case (Item 2) using the 4
screws (Items c).
(d) Secure the rear cover (Item 3) to
the lower case (Item 2) with the 2
lock screws.
(e)Secure the printer cover (Item 6 to
the upper case (Item 1).
3. Performance Check
a) Press
ON/OFF
key while holding the
ZERO
key pressed.
b) F1 will be displayed - press the
MODE
key.
c) F 9 0 will be displayed - press the
RANGE
key.
d) F 9 1 will be displayed - press the
MODE
key.
e) F10 will be displayed - press the
F
key
f) End will be displayed - press the
MODE
key.
g) Prepare the paper roll and open the printer cover.
h) While holding the
F
key, press the
key and feed in the paper.
i)
Place a weight onto the scale and when the stable mark flashes press the
key.
If the printed weight is correct then the installation has been successful.
