10 Connecting Audio / Video (AV) Peripherals - (I)
Configuration I: AV Signal Output from AV Jack
Using the AV signal cables in-
cluded with this player or
other cables of the same
standard you are ready to ex-
port to the following types of
peripherals:
1. Television set with AV input jacks.
2. VCRs (Recording is not permitted)
3. 8mm and VHS-C video cameras (Recording is not
permitted)
4. Overhead projectors
Please note that AV signal cables are bundled in sets of
three different colors. The white cable is intended to carry
left speaker audio, the red cable right speaker audio,
and the yellow cable image signal data. The three wires
are not structurally different, but the colors are intended
to aid in correct installation. Please make sure that each
output is plugged into the correct peripheral input (e.g.,
yellow output plugs into yellow input, etc.). Also, most
modern electronic equipment must be manually switched
before input signals can be processed and displayed.
Please refer to the relevant owners’ manual to confirm
how this switch should be accomplished.

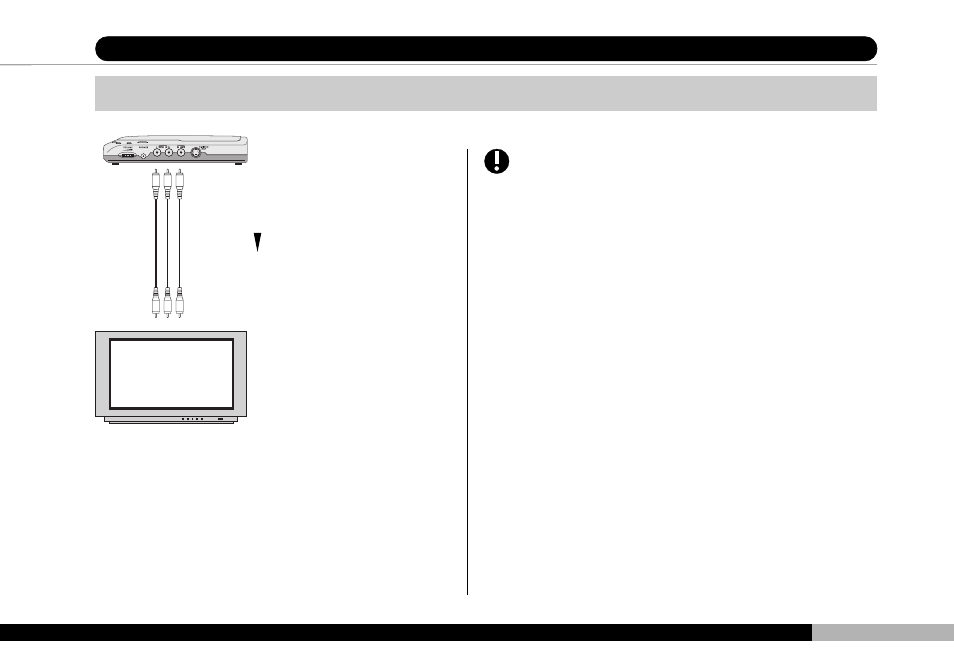

AV signal outputs
AV signal inputs
NOTE
When the DVD player audio/video output is plugged
into the A/V input jacks of a Video Cassette Recorder
(VCR) using the audio/video cables, (red, white and
yellow RCA jacks) poor picture quality may result (i.e.
screen on TV getting brighter and dimmer) due to
Macrovision copy guard protection contained on some
DVD discs.
