English
8

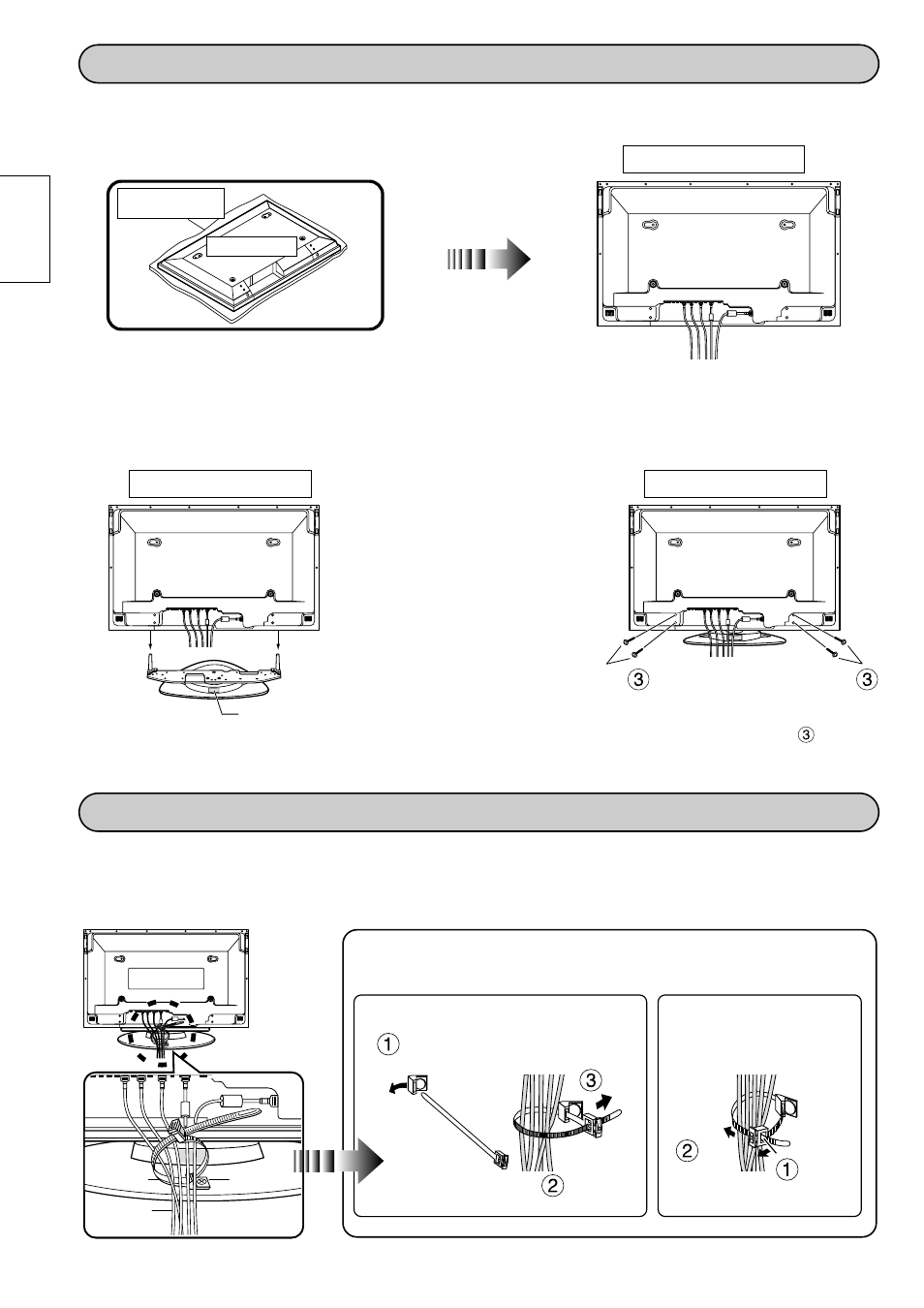

Attach to the display console
1. Attach the connection cables to the display.
Rear View
2 . Insert the poles into the holes
in the display console.
3. Fasten with screws
* Place clean blankets or similar
on a level floor or table,and place
the display on top of them facing down.
( Rear of display )
Blankets, soft
cloths or similar.
Display console
Cable Binding Instructions
■ Bind all cables to the PDP base with the supplied binding strap.
While ensuring there is sufficient slack in the power cord to minimize
stress, firmly bind all cables with the supplied binding strap.
Binding the Cables
Pass the binding strap
through the strap anchor.
Pull.
Bundle all
cables tidily.
Unbinding the Cables
Pull.
Pull clip.
Display console
Binding strap
Cables
Strap anchor
Long screws Long screws
Model no. label
Display console
Position the side of the pedestal with the model
no. label to the rear. Push the assembly into the
display until it stops. Securely fasten using long screws .
* Work on a level and stable surface.
( Rear of display ) ( Rear of display )
Display console
