7
Base
Llave hexagonal
Pedestal
Tornillos grandes
2. Attach the poles.
1. Attach the base to the pedestal.
Using the Allen key , securely fasten
the base to the pedestal with the large
screws , as shown in the diagram on
the right.
Securely attach both left and right poles to the top face of the base as shown below using short screws .

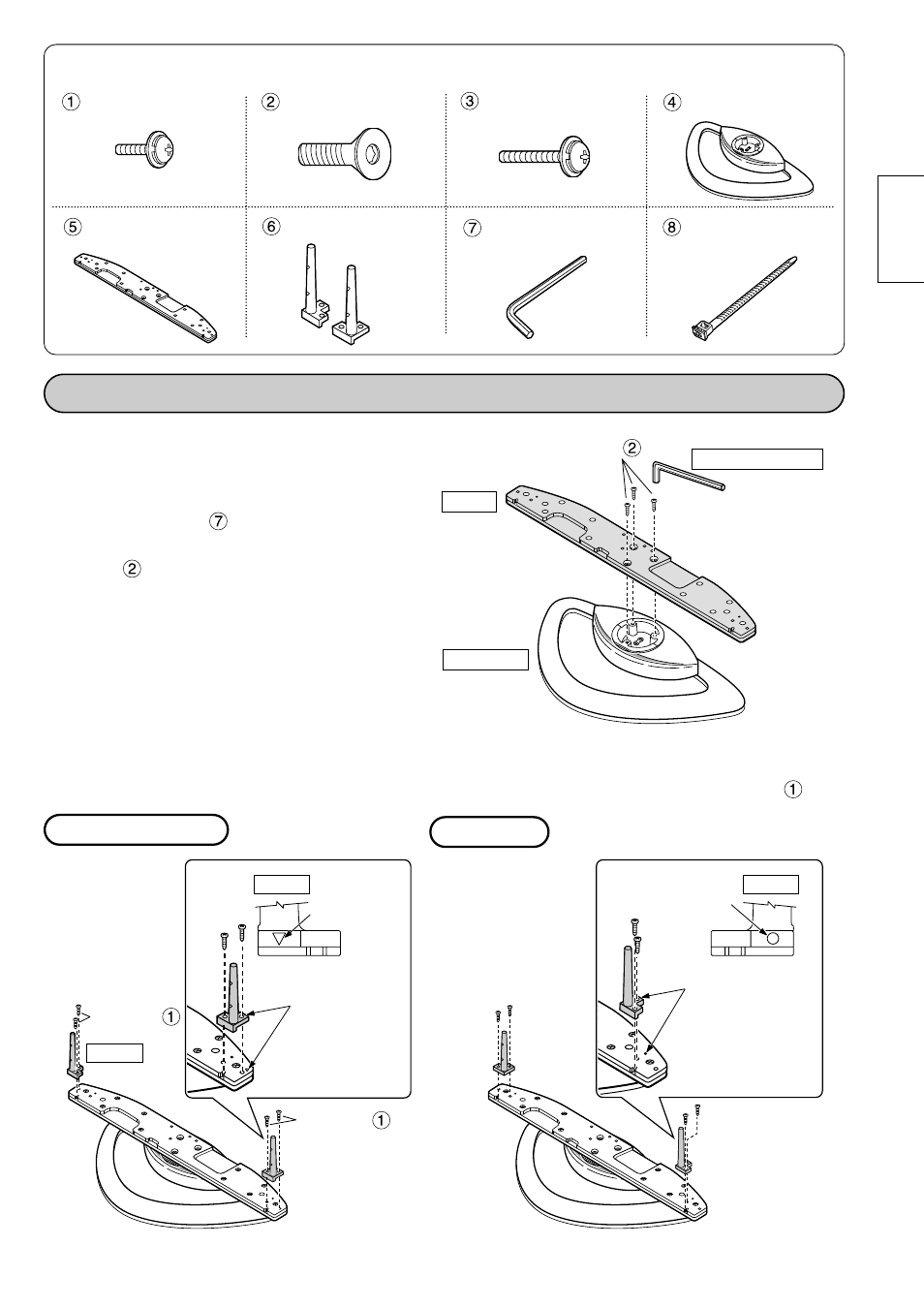

Assembling the stand
For 42-inch/50-inch For 37-inch
Parts for assembly
Base ................. 1
Short screws .... 4 Large screws ... 3 Long screws .... 4 Pedestal ........ 1
Poles ............... 2 Allen key ......... 1 Binding strap ... 1
Pole
Pole
Pole
Stamped mark
Stamped mark
Short screws
Short screws
Align the stamped marks.
Align the stamped marks.
