53

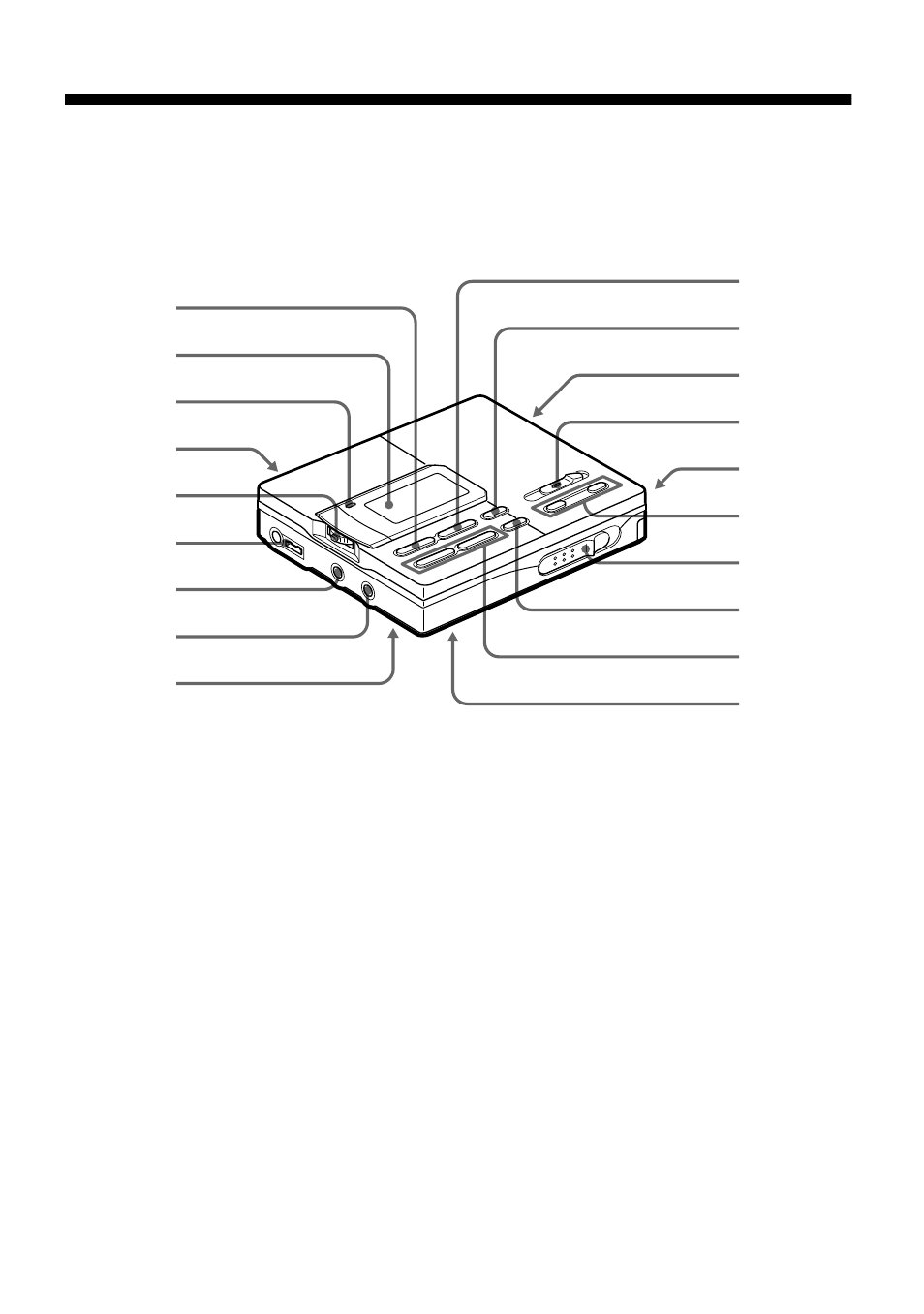

Looking at the controls
See pages in ( ) for more details.
The recorder
A x/CHARGE button (9)(12)(31)(40)
B Display window (16)(25)
C REC indicator (20)
D DC IN 3V jack (at the rear)
(8)(11)(40)
E Jog lever (12)(17)(25)(34)
F i (headphones)/LINE OUT jack
(11)(23)(30)
G MIC (PLUG IN POWER) jack (17)
H LINE IN (OPTICAL) jack (8)(15)
I HOLD switch (29)
J N (play) button (10)(12)(38)
K X (pause) button
(10)(12)(22)(34)(37)
L T MARK button (31)
M REC (record) switch (9)
N Battery compartment (at the rear) (40)
O VOL +/– button (12)(34)
P OPEN switch (9)(11)
Q END SEARCH button (10)(34)
R ./> (search /AMS) button
(10)(12)(32)(34)(38)
S SYNCHRO REC (synchro-recording)
switch (16)
A
B
C
E
D
F
G
H
I
M
J
K
L
N
O
S
P
Q
R
